FITTING PROCEDURE

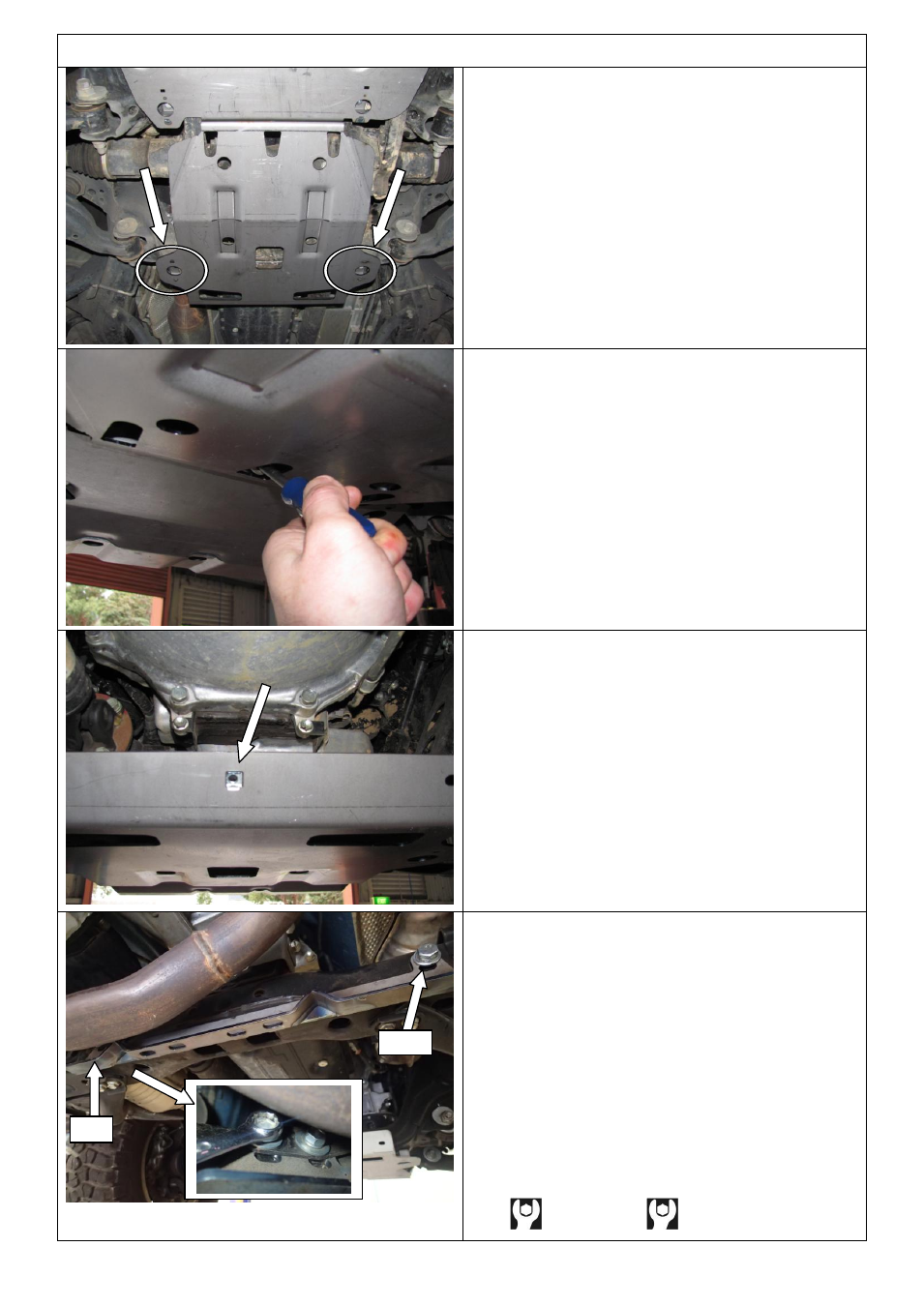

9. Place centre panel on vehicle as shown and
secure rear outer mounts to chassis using
original fasteners. Leave finger tight.
10. Secure front of centre panel to rear of front
panel using three M8 x 25mm bolts, spring
washers and flat washers. Leave finger tight.
11. Place one M8 cage nut in middle hole of
centre panel.
12. Mount rear bracket to rear face of
transmission cross member using two M8 x
25mm bolts, spring washers and flat washers
on the LHS and one M10 SEMS bolt and M10
cage nut and nut plate on the RHS. V6
models use upper holes in bracket and
diesel models use lower holes (V6 models
can use lower holes if exhaust is modified).
Un-bolt the front shaft heat shield (petrol
only). Place bracket between it and cross
member. If you find clearances tight on these
models jacking up the exhaust may help.
Tighten these bolts now.
M8 - 22 Nm. M10 - 44 Nm.
M8
M10
