FIT MOUNTING BRACKETS

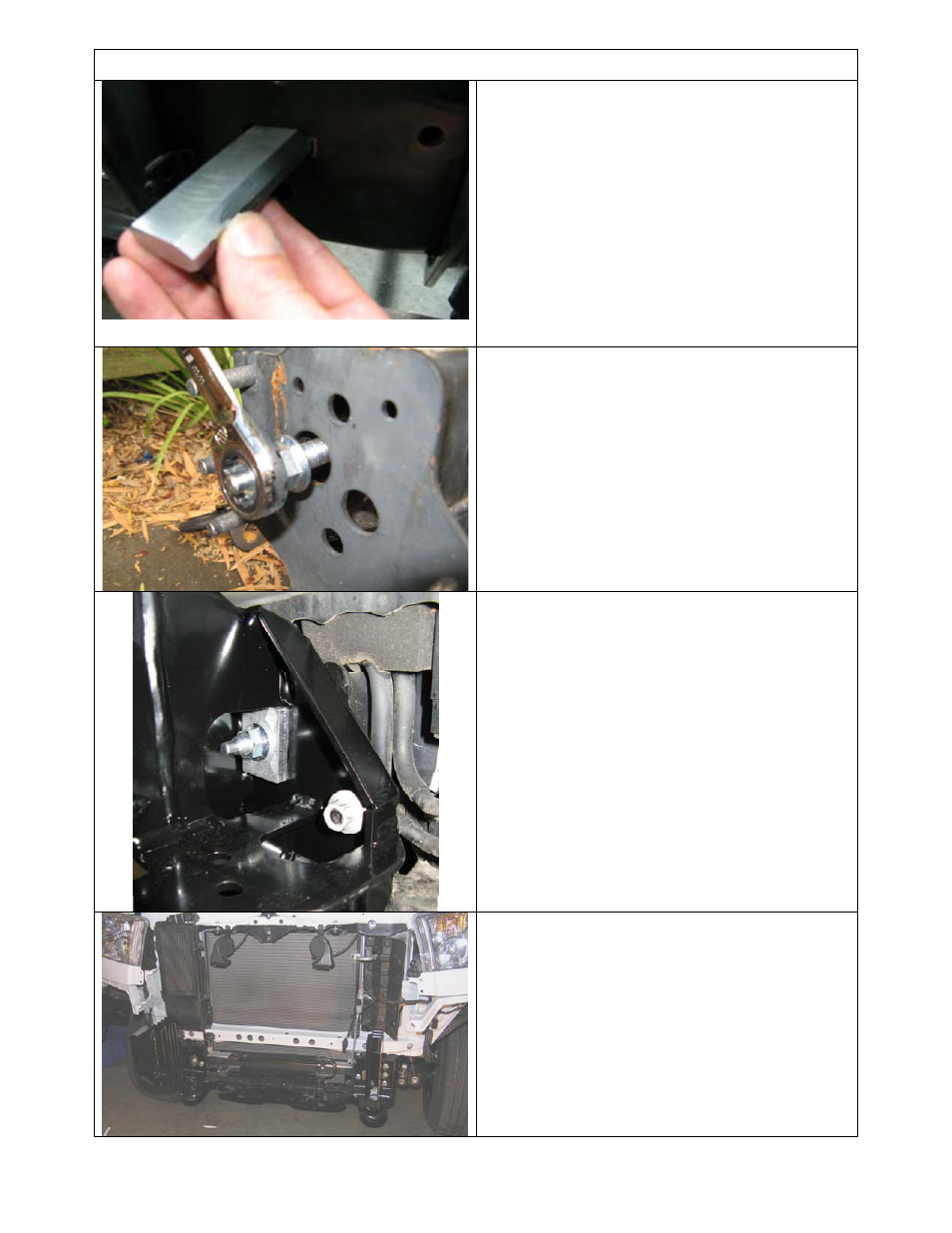

23. Insert clevis nut into rectangular hole in the
inboard face of chassis, ensuring the
threaded end is inserted first.
The nut when fitted correctly should fit square
and locate into the chassis rail.
24. Install the chassis stud by fitting 2 nuts to the
end of the stud and tightening until thread
bottoms out.
25. Remove nuts and repeat for the LHS.
26. Loosely fit the mounting brackets to the
chassis securing with the 8mm packers and
flange nuts.
27. Secure using existing OE M10 flange nuts,
but do not do up tight .
28. Fit the existing bolts back in tow hooks but
do not do up tight
