10. Replace the 2 cap screws, washers and nuts
removed in step 6 above into original holes.

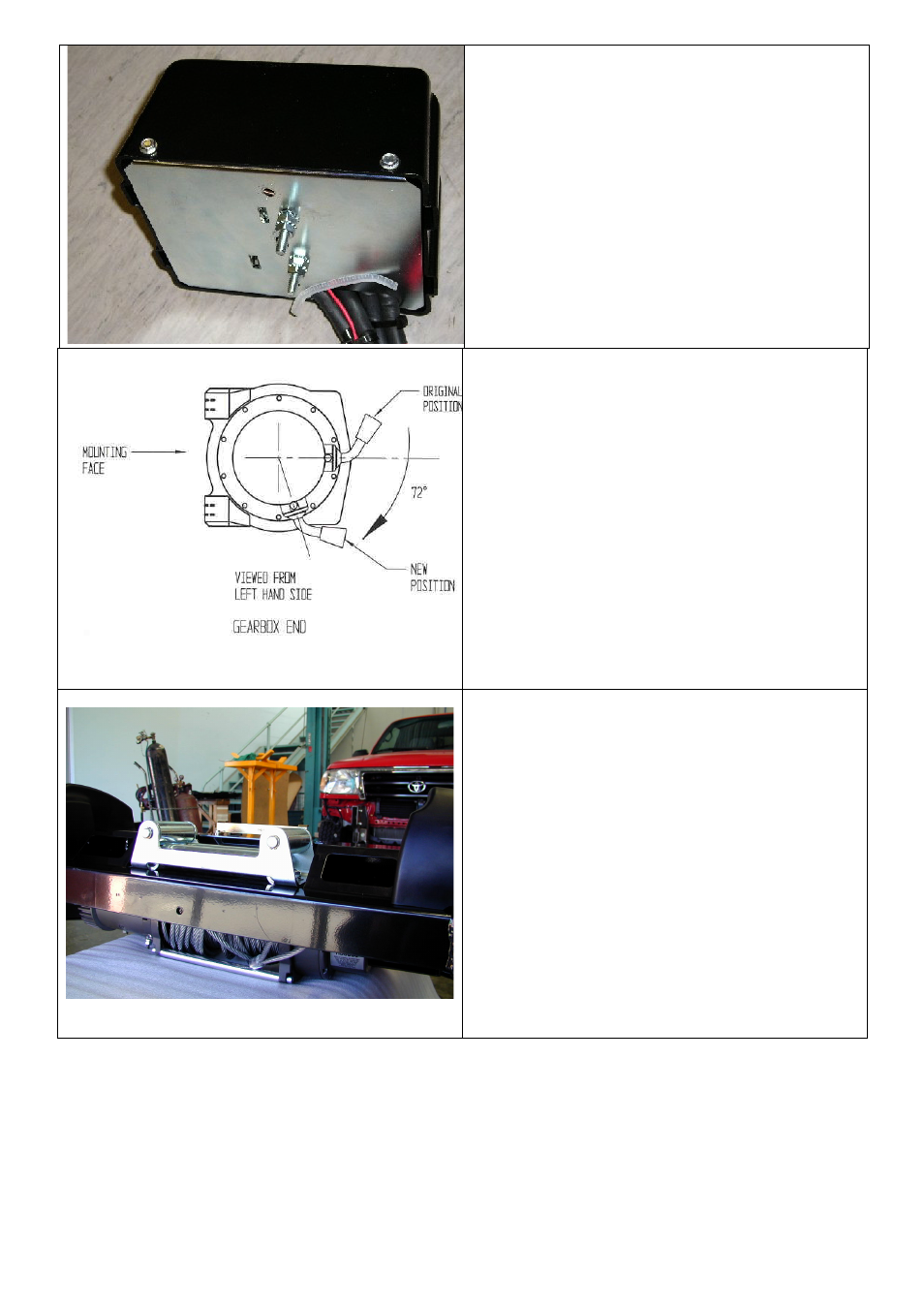

11. Replace the black cover and refit the three
cover screws (DO NOT OVER TIGHTEN)
12. Fit control box bracket to bull bar using 8mm
hardware.
13. To place the clutch handle in the correct
position, the winch gearbox must be rotated 72
degrees (2 hole spacings), in clockwise
direction when viewed from gearbox end. Place
the winch on its end and remove all gearbox
bolts. Gently raise the gearbox just enough to
rotate it. When the correct position is located,
refit all bolts and tighten.
NOTE: Take care not to lift the assembly more
than a couple of millimeters while rotating to
correct position to avoid unmeshing the gears.
14. Once winch is rotated, positioned winch on
bench face up.
15. Lower bull bar on top of winch and align holes
with each other.
16. Place roller fairlead in bar cutout over lower
holes and fasten using 3/8” Warn hardware and
4 3/8” flat washers supplied in bolt kit.
17. When all is positioned, tighten all bolts firmly.
