Fitting instructions# 3786376
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

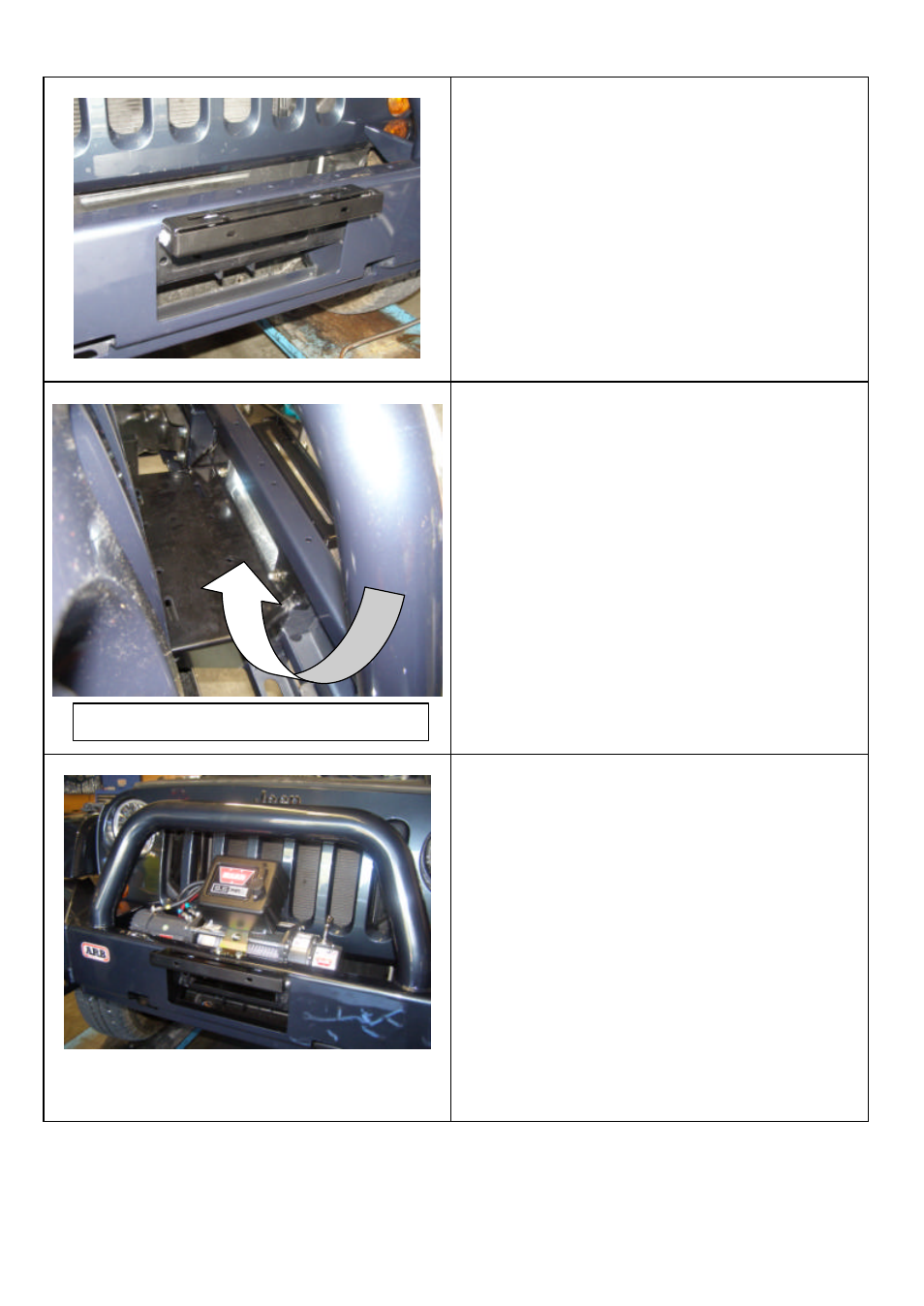

17. When the number plate
assembly is assembled, fit to bar
using 6mm x 25mm bolt plus 6mm
hardware.
18. Tighten bolts to torque
specifications.
19. As mentioned above, this bar
can be fitted with a series of
different Warn winches.
20. If a mid size frame type winch
is to be used, a control box bracket
has to be fitted to bar.
21. Lower winch onto mounting
platform of bar. Fit 3/8” square nuts
into winch retaining cavities.
22. Bolt up from under bar using
3/8” x 1 ½”bolts, spring and flat
washers
23. Fit control box bracket to bar
using M8 x 25mm bolts plus 8mm
hardware.
24. Fit control box to control box
bracket and wire up winch as per
Warn instructions.
25. Cable tie all power cables together
and keep clear of all moving
parts, hot parts and sharp edges.
26. If a RC Series winch is to be
fitted, the same as above applies
except the RC winch has its own
bolt on control box mount.
WINCH MOUNTING PLATFORM
