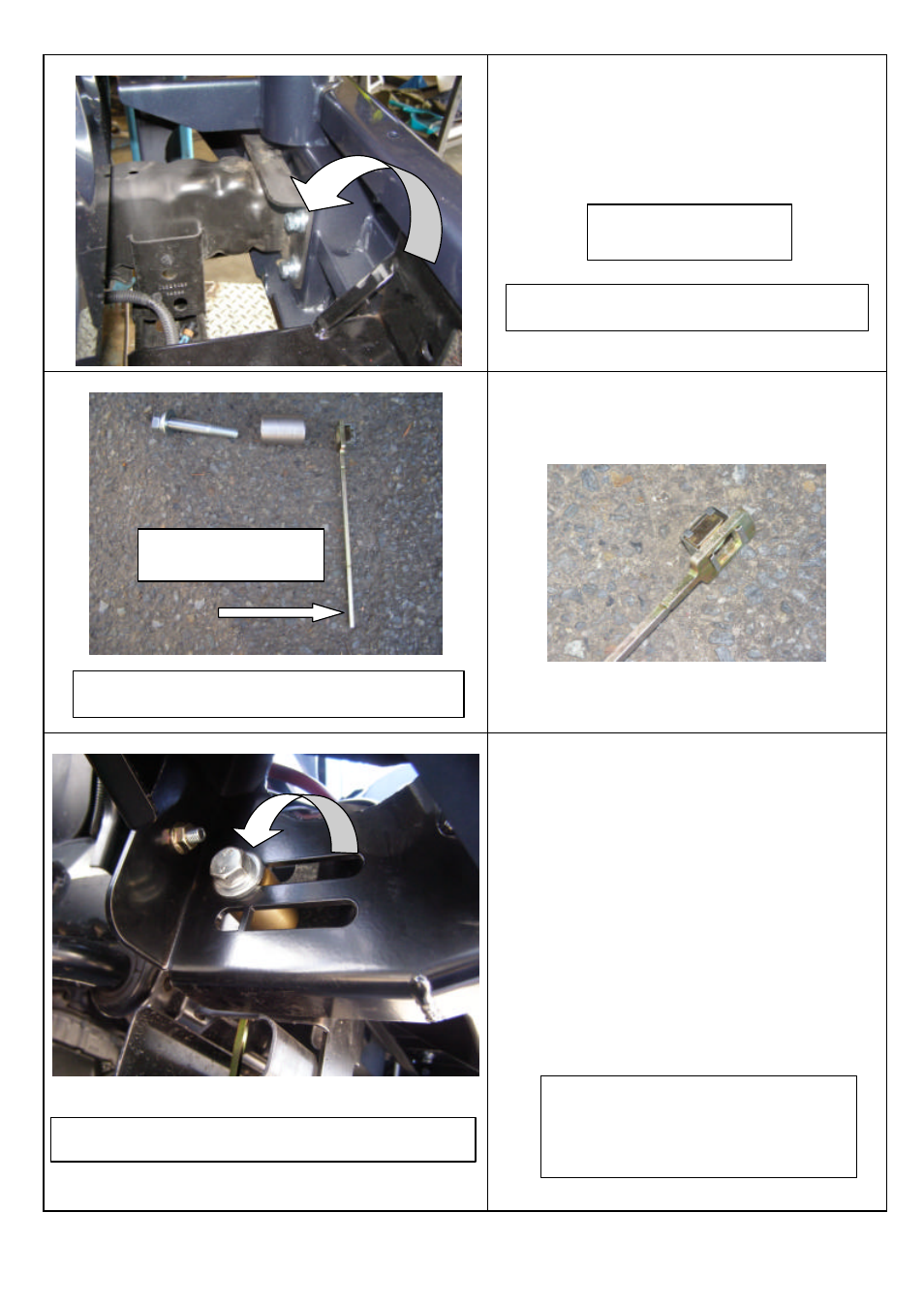

6. With the help of a friend, lift bar
onto chassis and secure using 10mm
hardware, Finger tighten only.
7. This hardware is for side
mounting as per paragraph 3-4
Caged nut fitted to nut plate
8. Packer fits in between inside of
chassis rail and bar in rear part of
captive slot
9. Pass 12mm bolt plus washers
through outside of bar, through packer
and just protruding into chassis rail.
10. Pass caged nut assembly into open
end of chassis rail and secure with
previously fitted 12mm bolt, see photo
on
paragraph 11.
4 BOLTS PER SIDE
VIEWED FROM LHS OF VEHICLE
Set up RHS of vehicle
VIEWED FROM UNDER RHS OF VEHICLE.
TAIL OF
CAPTIVE NUT
YOU WILL HAVE TO BEND
TAIL OF CAPTIVE NUT PLATE
TO FIT INTO CHASSIS RAILS.
