ARB 3450210 User Manual
Page 10
Last Rev Date: 25 01 08
Page 10 of 11
Fitting instructions# 3786376
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

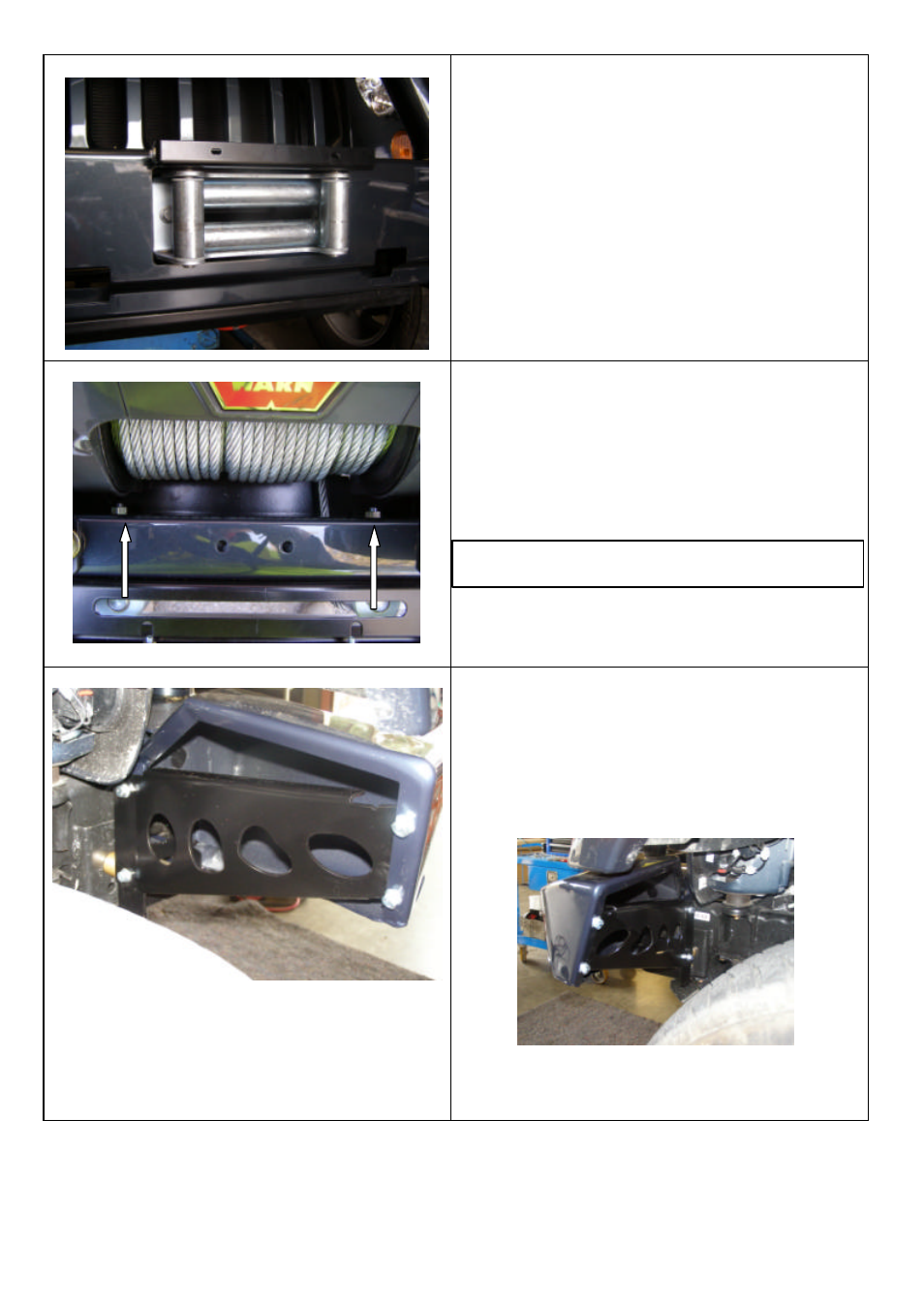

36. The next part to fit to bar is the
roller fairlead. This is secured to bar
using 10mm hardware.
37. Pass 10mm bolt assembly through
front of roller fairlead, through bar
and secure from behind using a 10mm
flange nut.
38. Fit wing braces to bar using 8mm
hardware.
39. When all bolts are fitted, tighten to
torque specifications.
ARROWS INDICATE 10MM FLANGE NUTS
