ARB 3450120 - Manual (Page 4)

29/8/05 Page 4 of 12 3783172

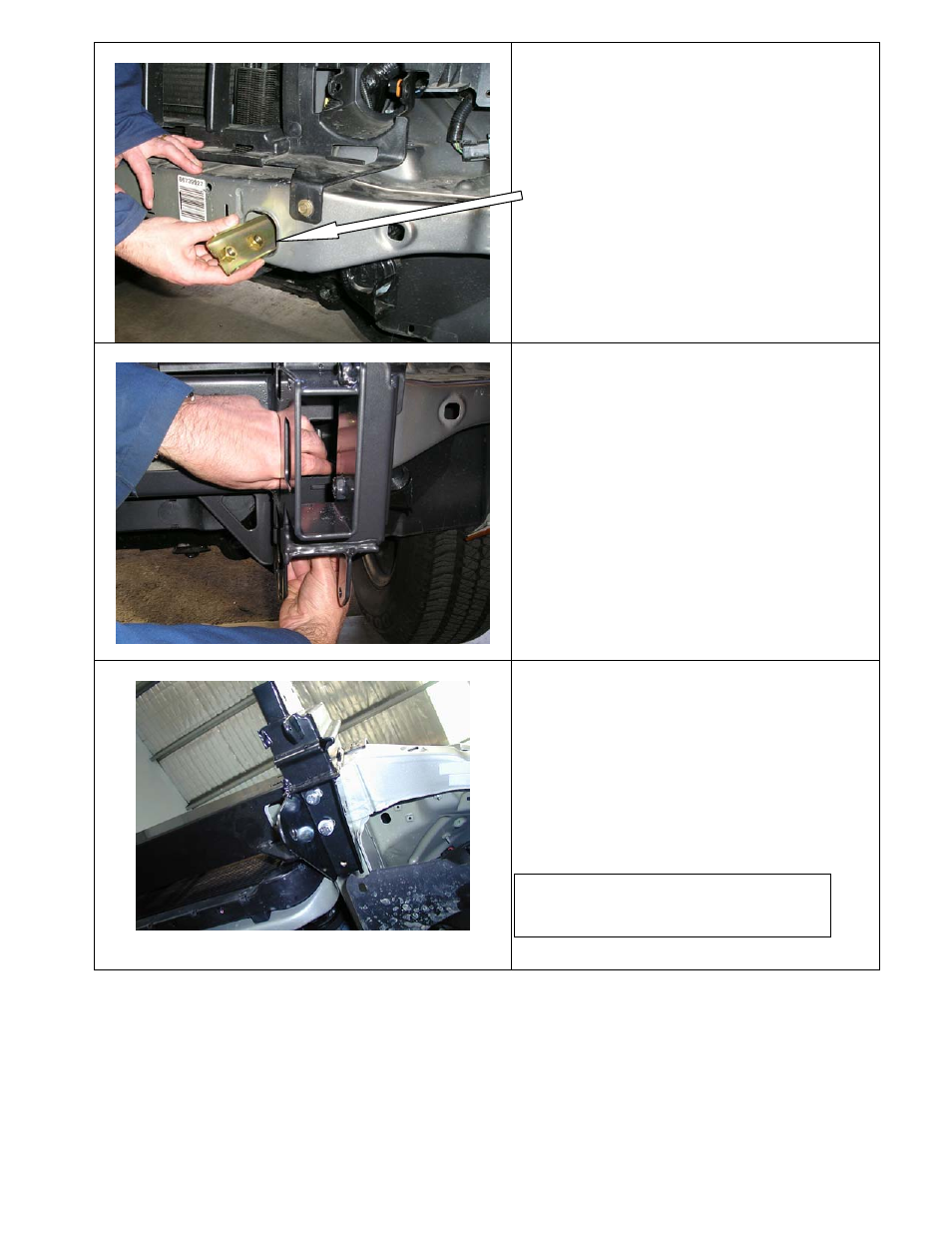

7. To fit mounting system to vehicle, fit
captive nut channel in through front
apertures in vehicle cross member on both
sides.
(Notch in channel must face front of vehicle)
8. When both channels are inside of cross
member, using your finger, align with holes
underneath of chassis rails.
9. Fit mounting system to front cross member
of vehicle and centralized sideways.
10. Fit 10mm hardware to the two most
forward holes in lower brackets, to both sides
of vehicle, making sure mounting system is
hard up against vehicle cross member, tighten
firmly.
Photo shows underside of mounting
system on LHS of vehicle.
