TOOLS REQUIRED.
BASIC TOOL KIT, KEY HOLE SAW, TORX KEY T-15
ASSEMBLY SEQUENCE FOR BULL BAR INSTALLATION.
PLEASE READ AND UNDERSTAND FITTING INSTRUCTIONS BEFORE
ATTEMPTING TO FIT BAR TO VEHICLE

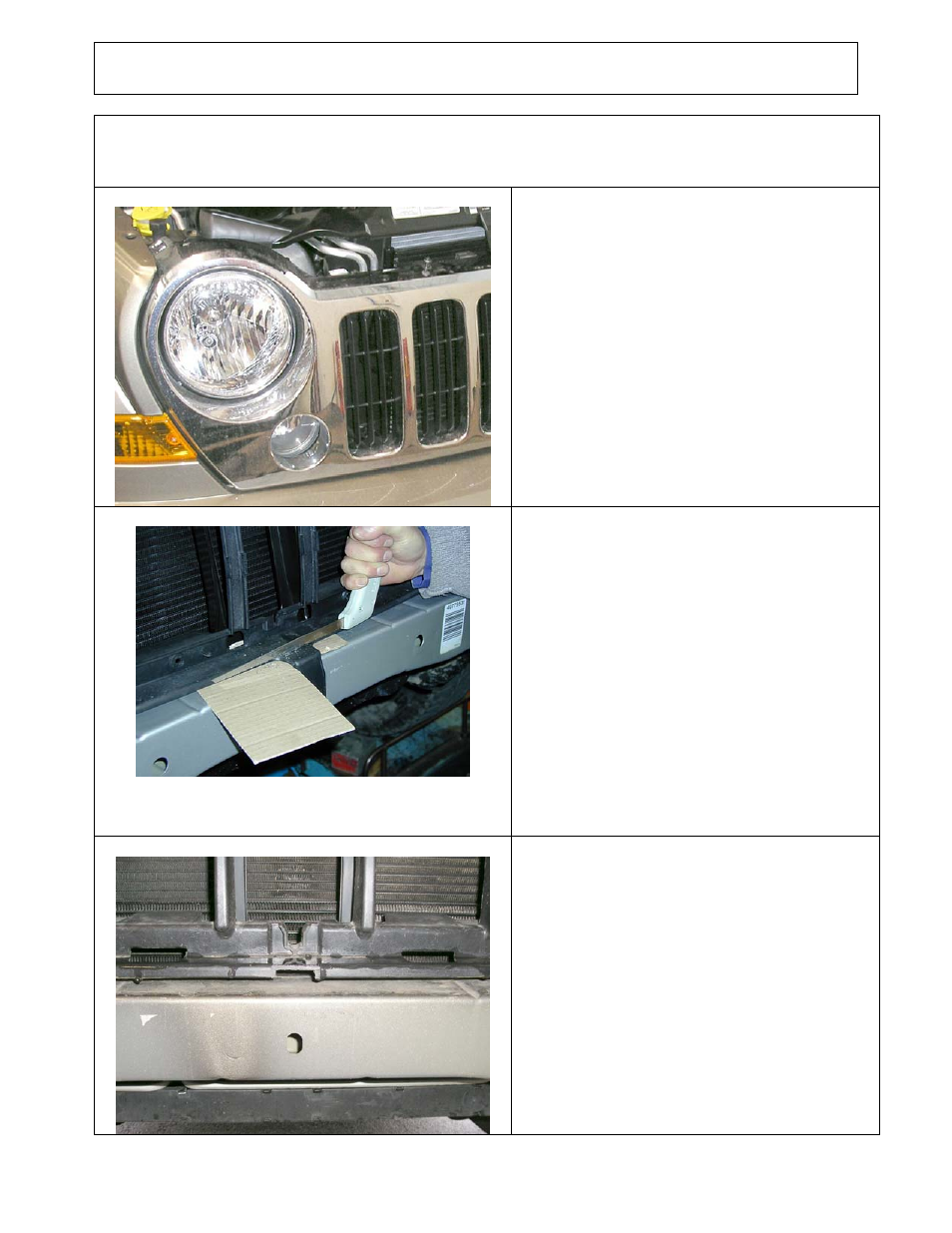

1. Remove grille from vehicle using torx
keys.
2. Remove bumper from vehicle and
disconnect the turn signal lights. If the
vehicle is fitted with fog lamps, as
shown in the adjacent photo, remove
the fog lamps.
3. Be careful when removing bumper
from the flares, as the plastic clips are
awkward to undo.
4. Remove the turn signal lights.
5. When bumper is removed, cut the
lower plastic lug from grille panel to
enable bull bar mounting system to bolt
up against vehicle cross member. Place
either thick cardboard or plywood
either side of lug to prevent paint
damage.
Remove tow hook and crush
cans from vehicle.
Keep the fasteners used on the original
bumper as some will be re-used on the new
bull-bar.
6. This is how it must look when it has
been cut.
