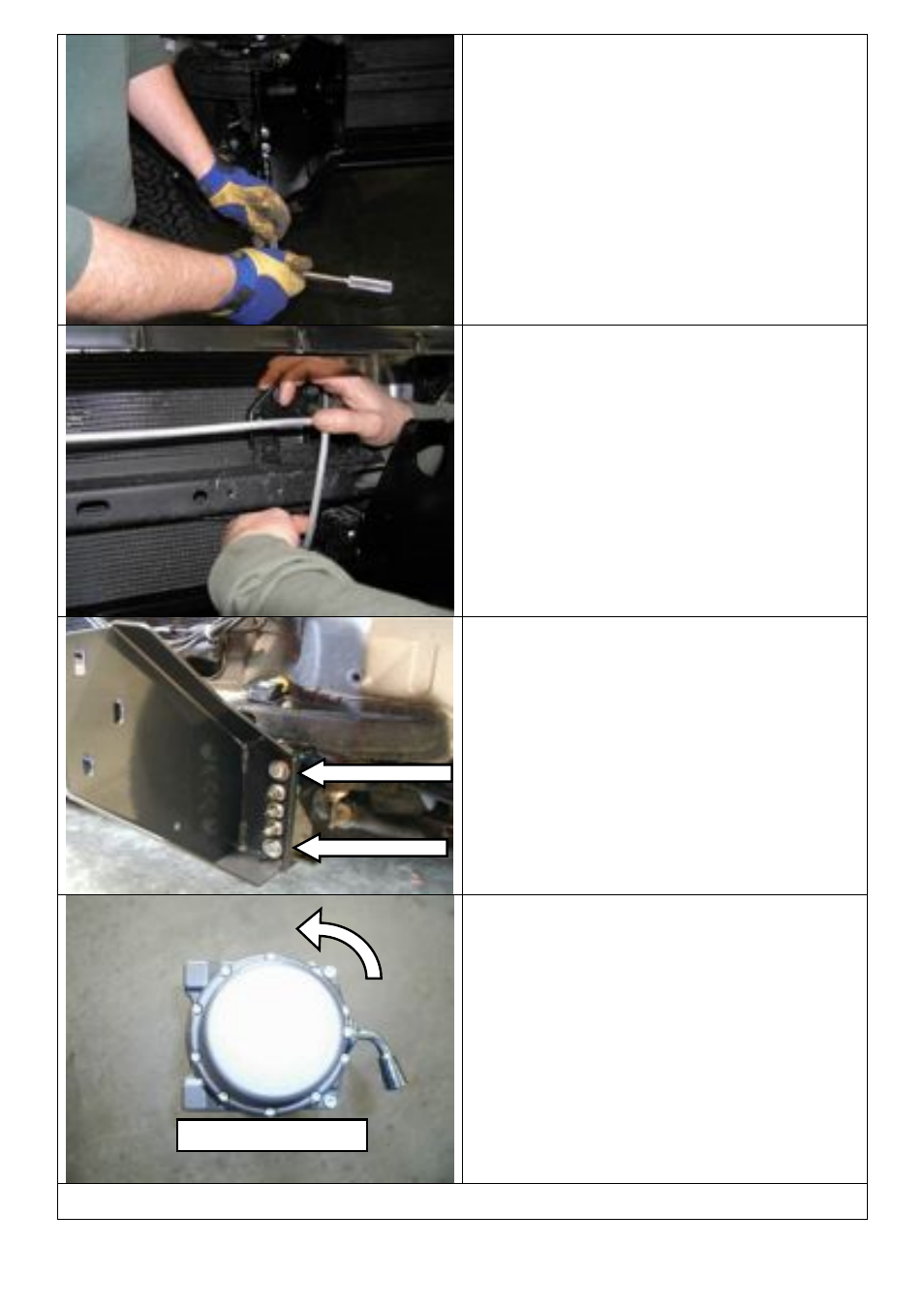

15. Fit the chassis mount bracket to the chassis
using the original flange nuts removed with
the bumper reinforcing bar. Centre the
chassis mount bracket and tighten.
CAUTION: When fitting the Chassis mounting
bracket carefully bend the air-conditioning pipe
out of the way.
16. If required, carefully bend piping clear of
mount bracket assembly.
CAUTION: Piping must not rub on sharp
edges, secure with cable tie and protective
sheath if required.
17. Fix the chassis mount bracket to the chassis
mount brace using M12 x 40mm bolts, M12
spring and flat washers, the 8mm spacers
and M12 x 1.75 nuts. Tighten bolts
NOTE: If fitting winch continue through step 14, if
not skip to step 25
18. For ease of access the winch gearbox
handle needs to be rotated. To do this undo
all the cap screws, carefully lift the gearbox
clear of the winch body so as not to damage
the gasket. (Do not lift the gearbox more than
a couple of millimetres) Rotate the gearbox
anti-clockwise three hole spaces. Re-fit the
caps-crews.
FITTING PROCEDURE
View on gearbox end
