FITTING PROCEDURE

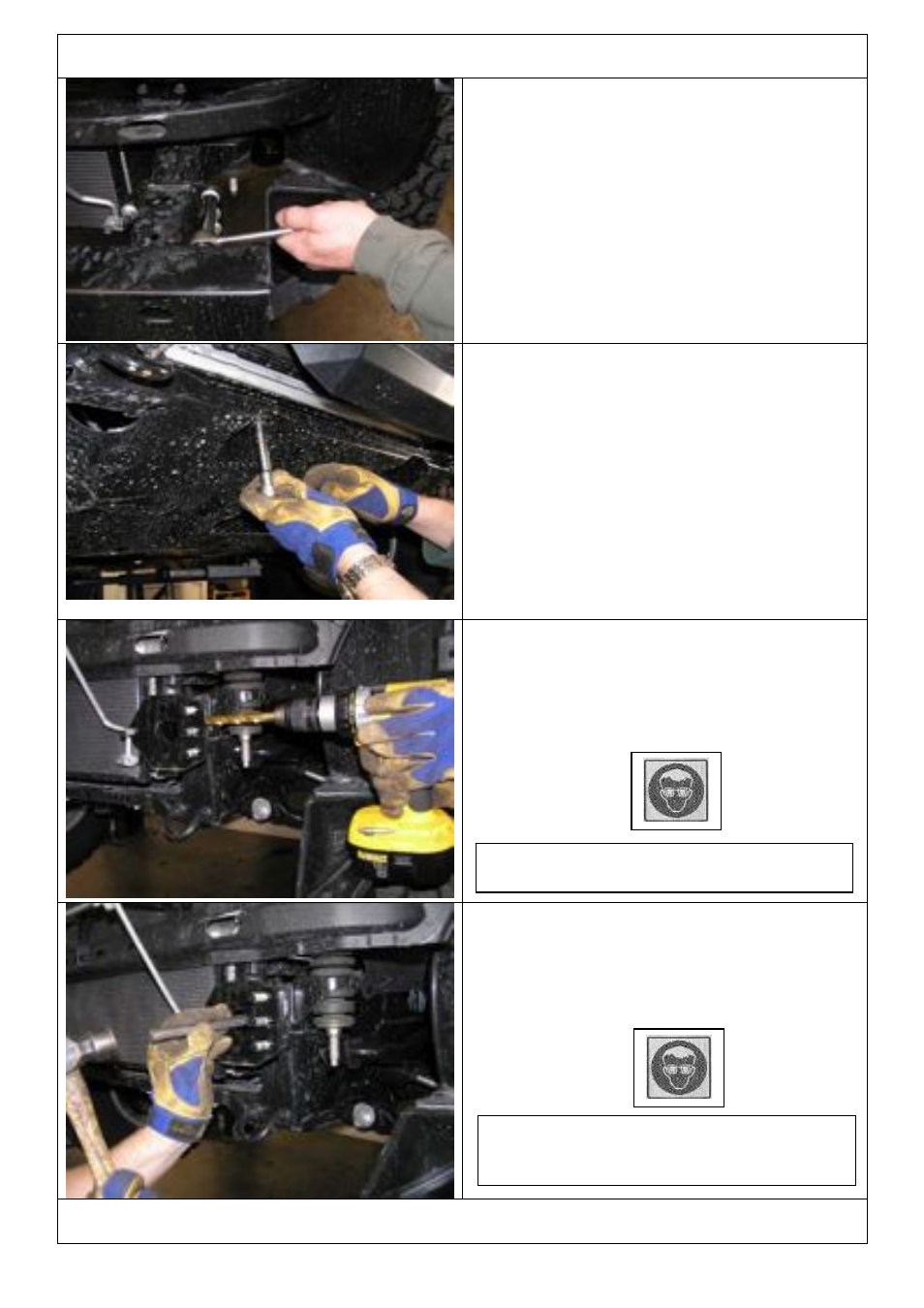

7. Remove front bumper reinforcing bar.
NOTE: Retain the 8 x flange nuts removed for
fitment of the bull bar chassis mount.
8. Remove front fasteners only from stone tray.
Retain fasteners for reuse.
9. Using the 13mm drill bit and power drill, drill
out the M8 captive nut located at the outboard
side of the chassis as shown, on both sides of
the vehicle.
10. Check that the nut body is completely
removed, if it is not cleared, using a cold
chisel and hammer chisel the remainder off.
FITTING PROCEDURE
Warning: Hammering and chiselling operations
can result in flying metal debris, safety glasses
should be worn.
Warning: Drilling operations can result in
flying metal debris, safety glasses should be
