Fluid Management H-5 Mixer Mechanical Timer - Manual (Page 28)

PARTS SECTION
28 Fluid Management
®

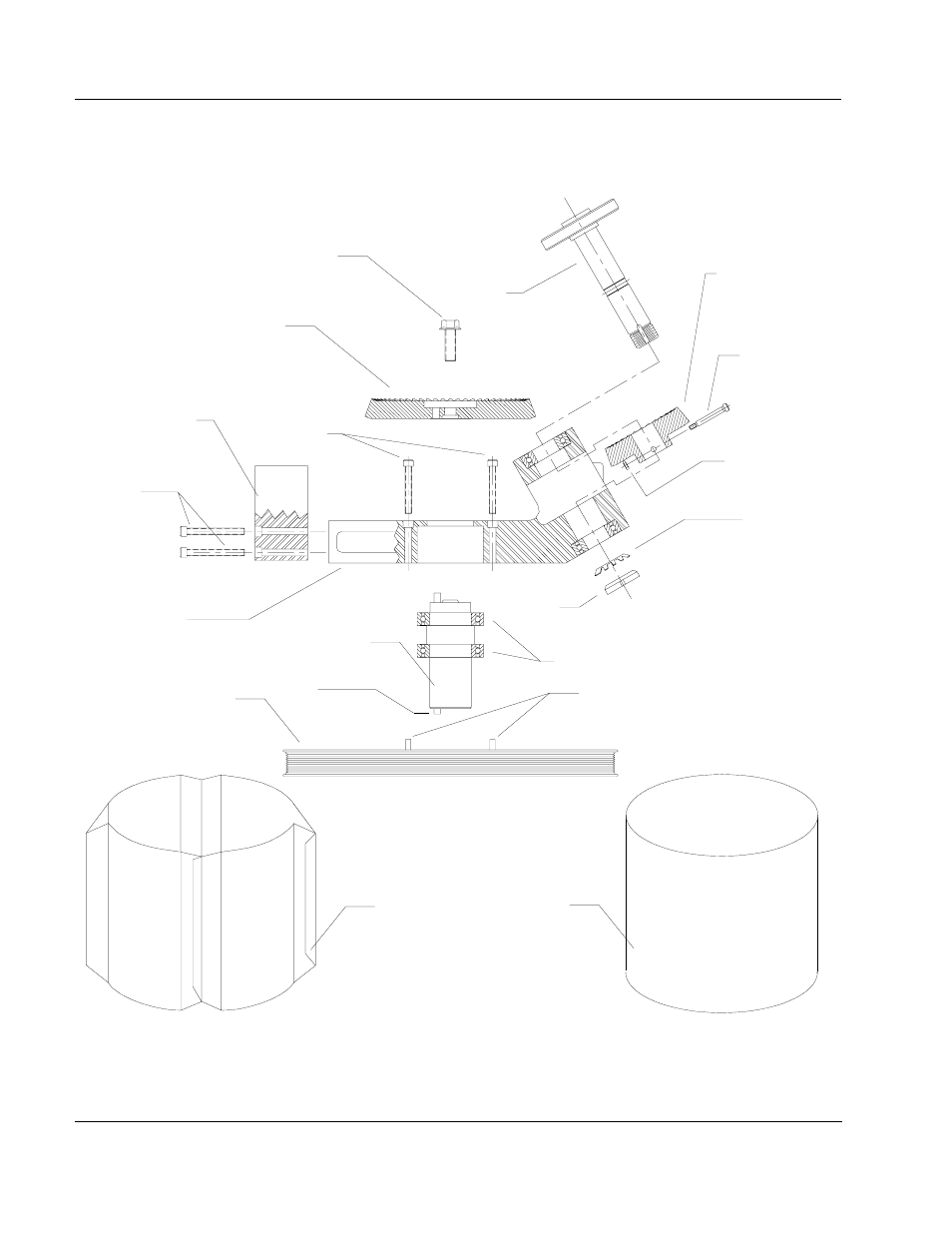

Figure 8 Transmission Arm Assembly
PULLEY
16008
SCREW
F0104A5B36
SHAFT
25929
LOCK
WASHER
16107
NUT
16106
NUT
F01137
SHOLDER
SCREW
F01130424
GEAR
25788 SCREW
F0103816
GEAR
25789
SHAFT
16022
PIN
F0108A09N16
SCREW
F0104A4B44
PIN
F0115A0816
BEARING
16105
WEIGHT
16120
ARM
16096
OPTIONAL
SQUARE
CAN
CAN
HOLDER
25723
HOLDER
25936
