SERVICING AND REPAIR
H-5 Paint Mixer Operating & Instruction Manual
23

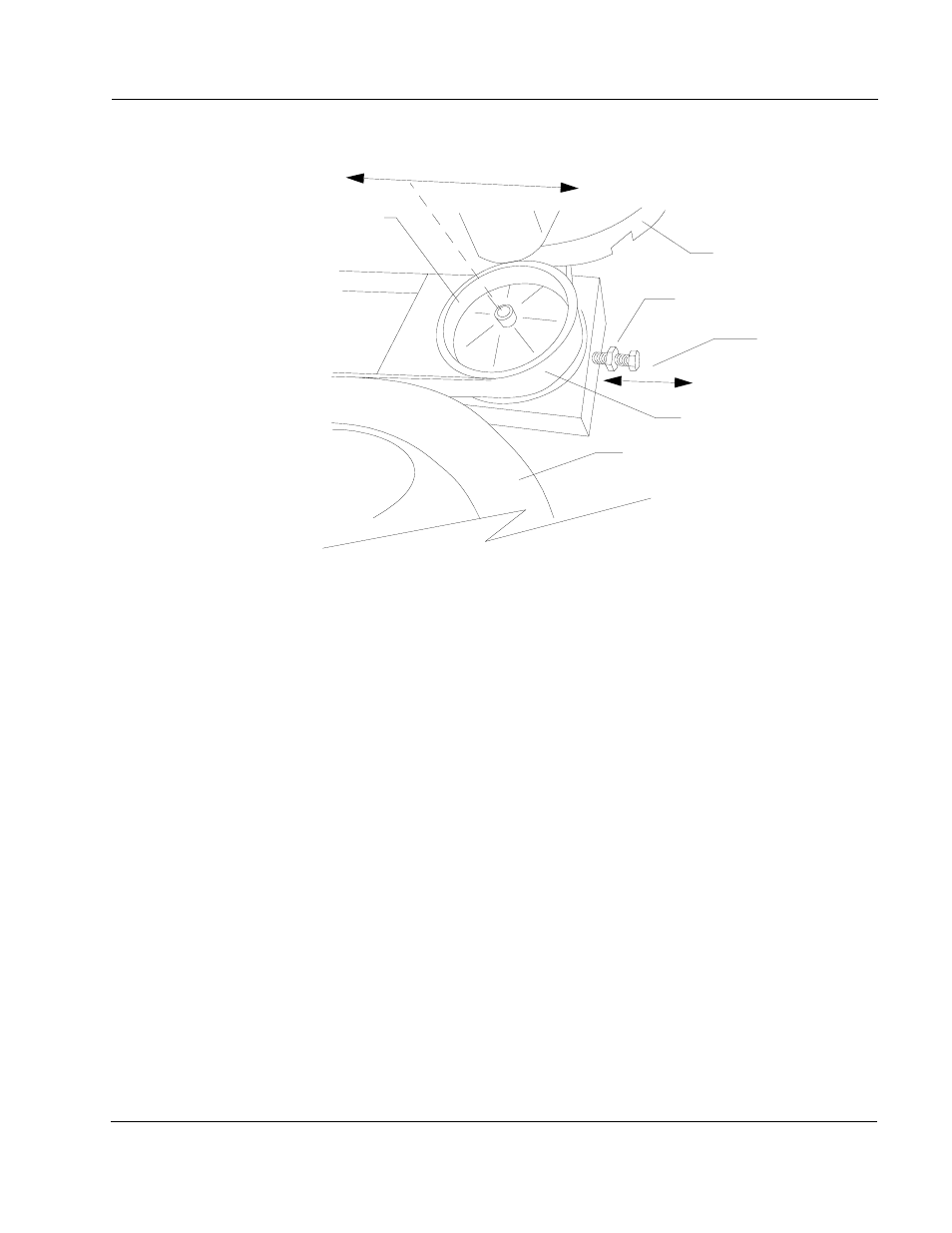

Figure 7 Belt Adjustment
6. Tension is properly adjusted when approximately five (5) ponds of force
deflects belt 1/4".
7. Close back cover of machine and secure with latches.
8. Plug machine into power source and test as required.
LOCK
NUT
IDLER
ADJUSTMENT
BOLT
IDLER
PULLEY
MOTOR
MAIN
DRIVE
PULLEY
DRIVE
BELT
