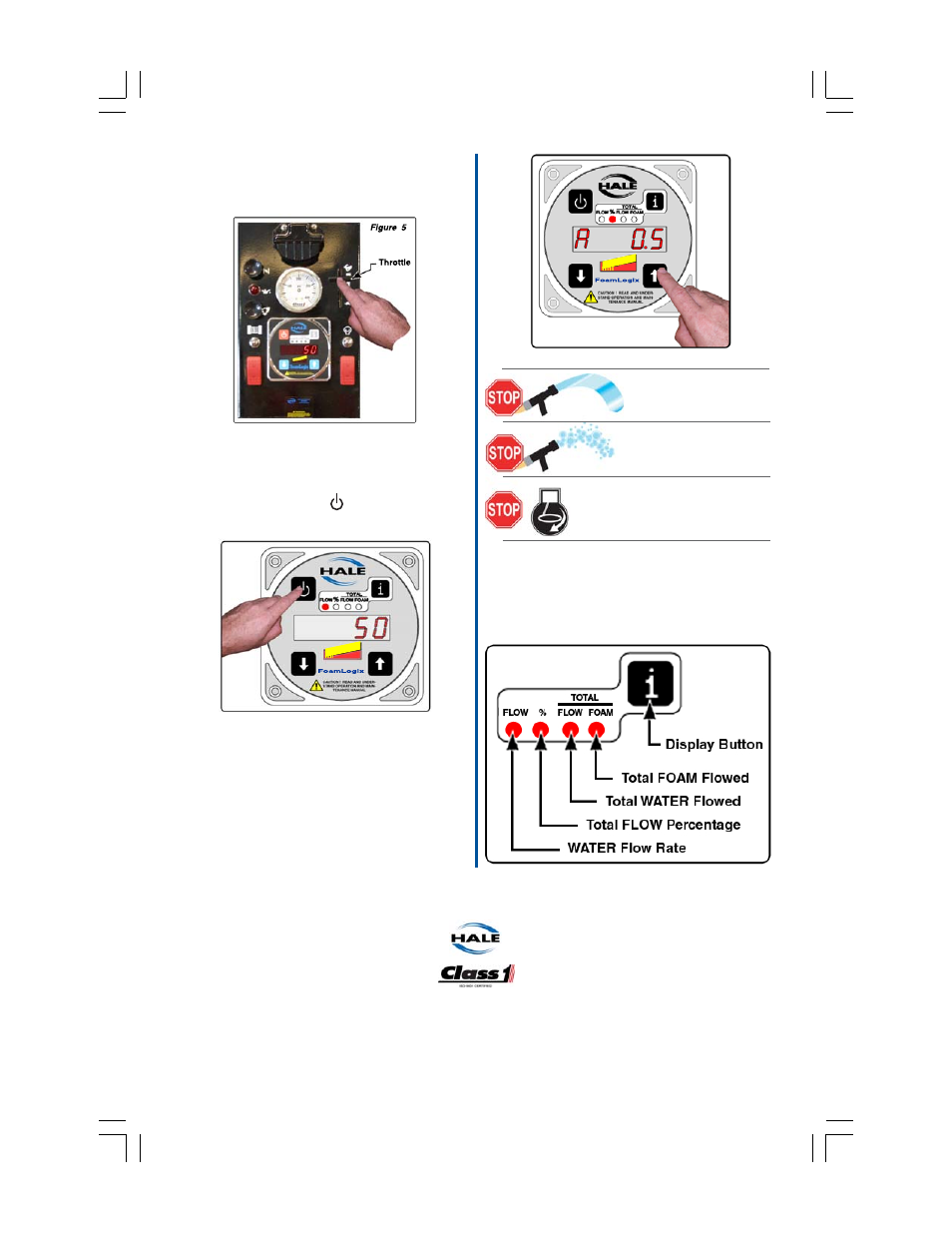

7. Adjust the throttle to set the operating
water pressure and flow rate. (See
Figure 5.)
The FoamLogix display shows the
current water flow rate.
8. Start foam flow by pressing the red
ON /OFF button ( ) on the
FoamLogix display. (See Figure 6.)
The bar graph on the FoamLogix
display illuminates, left – to – right, to
indicate relative foam motor speed.
9. If needed, adjust the percentage of
foam flow by using the INCREASE
(
) and DECREASE ( ) buttons on
the FoamLogix display. (See Figure 7
in the next column.)
Manual p/n: 113964 Rev -, 04/11/2006
Figure
6
Figure
7
By repeatedly pressing the DSIPLAY button
( i ) , water flow rate, foam flow percentage
and water and foam flow totals may be
viewed. (See Figure 8.)
Stop foam flow by pressing
the red ON/OFF button on
the FoamLogix display.
Stop water flow by
closing the discharge
valve(s).
Stop the engine by
placing the main power
switch to the OFF
position.
Figure
8
