7.2 Connecting a HDTV Decoder
Set-Top Box

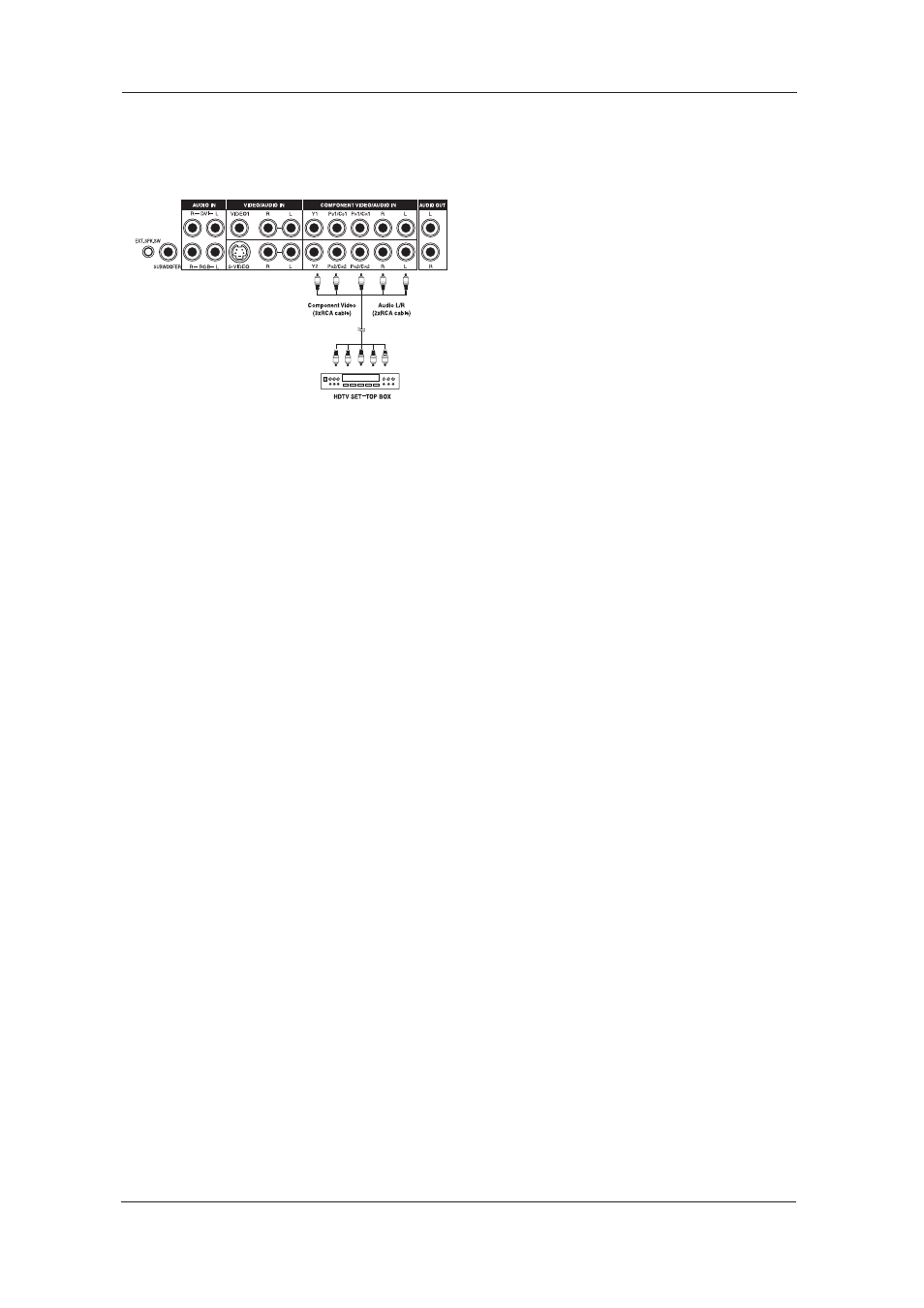

Using Component Video Input
1. Connect the green (labeled as Y) jack from
the HDTV Set-top box to the green Y1 jack
of the display.
2. Connect the red (labeled as PR or CR) jack
from the HDTV Set-top box to the red
PR1/CR1 jack of the display.
3. Connect the blue (labeled as PB or CB)
jack from the HDTV Set-top box to the blue
PB1/CB jack of the display.
4. Connect the red (R) and white (L) audio
jacks from the HDTV Set-top box to the R
and L audio-in jacks located next to the
PR1/CR connector.
Note:
•
Some HDTV Set-top boxes may not have a
Component Video output. Instead, use RGB
input method.
• There are two sets of component inputs
provided.
You can use either set of component inputs
to connect your HDTV Set- top box.
Using RGB Input
1. Connect the 15-pin D-Sub RGB connector
from the back of the HDTV Set-top box to
the RGB-IN connector located on the back
of the display.
2. Connect the red (R) and white (L) audio-out
jacks from the HDTV Set-top box to the R
and L audio-in jacks located to the left of the
S-VIDEO connector.
Note:
•
Some HDTV Set-top boxes may not have a
RGB output. Use Component Video input
method if this is the case.
• Upon connecting your HDTV Set-top box to
the RGB input of the display, it may be
necessary to adjust various picture settings
on the display to correctly match the output
of the HDTV Set-top box. (See Chapter
Picture Adjustment).
This is caused by the different video timings
set by various HDTV Set-top box
manufacturers.
• This plasma supports 480p, 720p and 1080i
under RGB mode.
