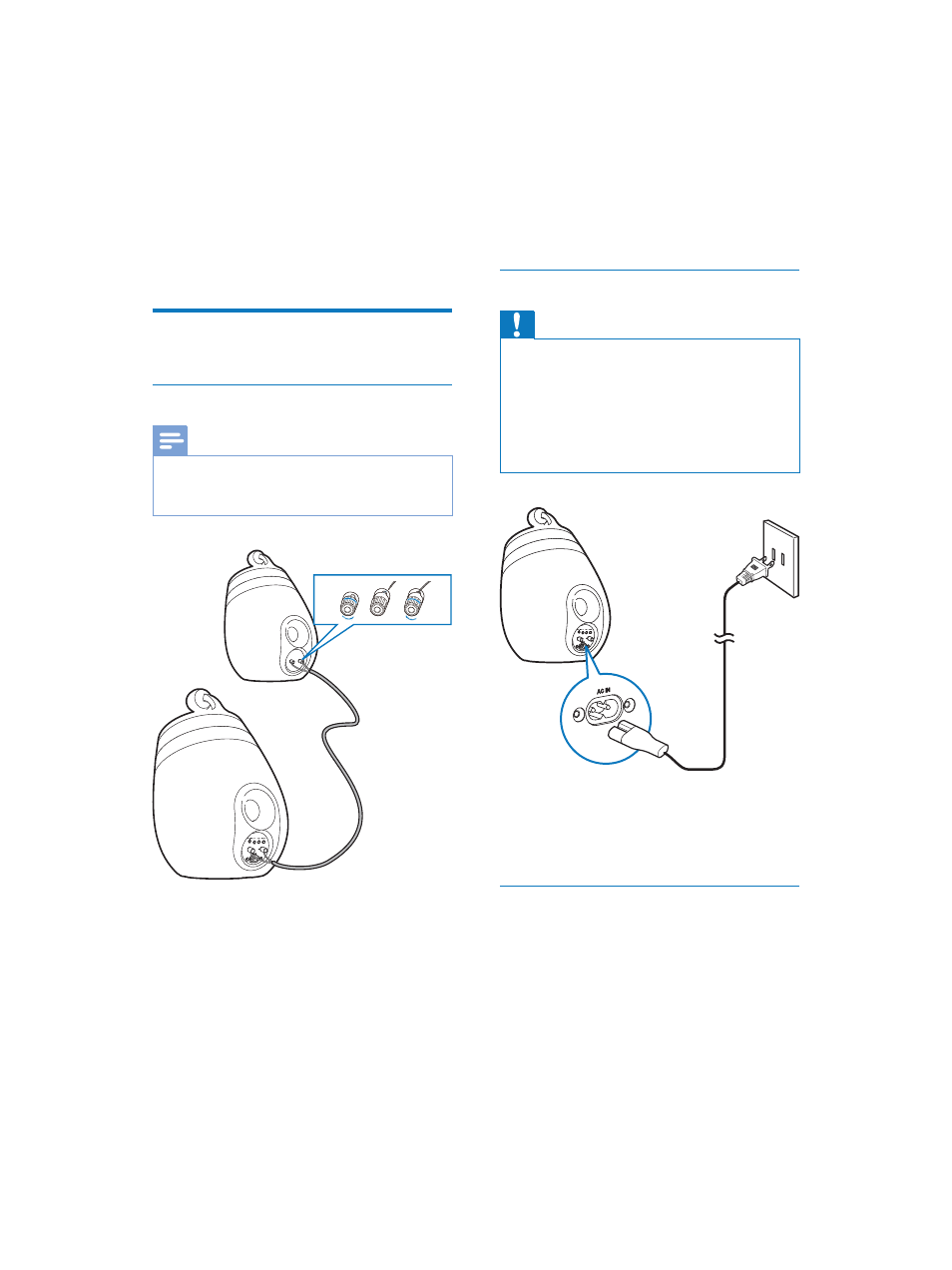

3 Prepare

$OZD\VIROORZWKHLQVWUXFWLRQVLQWKLVFKDSWHULQ
sequence.

Connect

Connect speaker cables

Note

‡

Insert the stripped portion of each speaker wire into
the socket completely.

‡

For optimal sound, use the supplied speakers only.

1

Unscrew the speaker connectors.

2

Insert fully the end of a speaker cable with
red mark into the left red (+) connector.

3

Screw the left red (+) connector to secure
the cable.

4

Insert fully the end of a speaker cable
without red mark into the left black (-)
connector.

2

1

3

5

Screw the left black (-) connector to
secure the cable.

6

Repeat steps 2-5 to insert the other
speaker cable into the right connectors.

Connect power

Caution

‡

Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.

‡

5LVNRIHOHFWULFVKRFN:KHQ\RXXQSOXJWKH$&FRUG
always pull the plug from the socket. Never pull the
cord.

‡

%HIRUH\RXFRQQHFWWKH$&FRUGPDNHVXUHWKDW\RX
have completed all the other connections.

‡ &RQQHFWWKH$&SRZHUFRUGWR

‡ the ~ AC IN socket on the back of the

main speaker.

‡ the wall power socket.

Turn DS9800W on

$IWHUSURSHUSRZHUFRQQHFWLRQWKHXQLW
switches on automatically.
‡ Wait for successful boot-up of the unit.

»

The boot-up takes about 35 seconds.

»

During boot-up, the LED indicator
on the back of the unit blinks green
quickly.
