5
English
EN
2 Your home
theater
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers(e.g. notification
of product software upgrade), register your
product at www.philips.com/welcome.

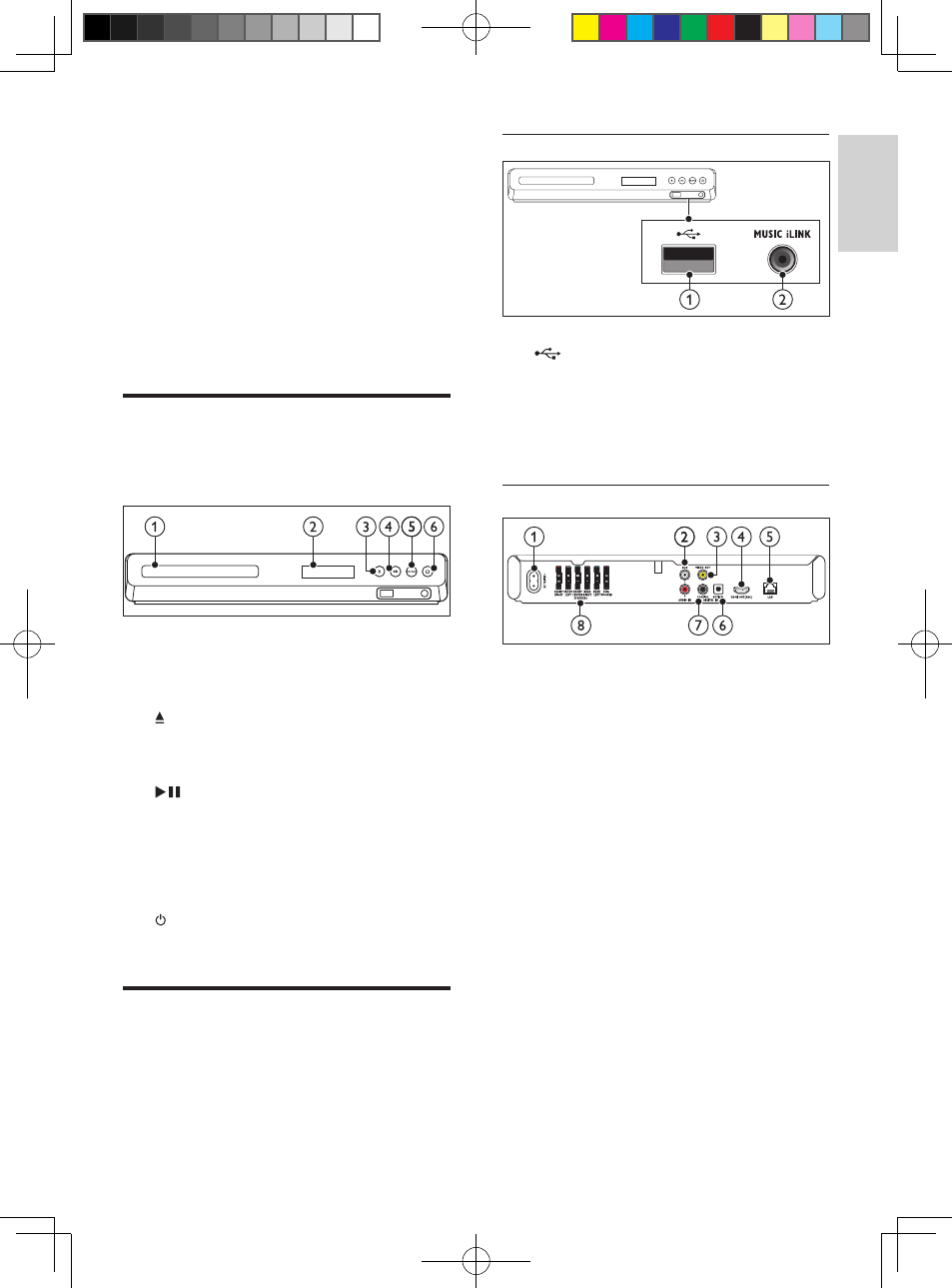

Main unit
This section includes an overview of the main
unit.
a Disc compartment
b Display panel
c (Open/Close)
Open or close the disc compartment, or
eject the disc.
d (Play/Pause)
Start, pause or resume play.
e SOURCE
Select an audio or video source for the
home theater.
f (Standby-On)
Switch the home theater on or to standby.
Connectors
This section includes an overview of the
connectors available on your home theater.
Front connectors
a (USB)
• Audio, video or picture input from a
USB storage device.
b MUSIC iLINK
Audio input from an MP3 player.
Rear connectors
a AC MAINS
Connect to the power supply.
b AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
c VIDEO OUT
Connect to the composite video input on
the TV.
d HDMI OUT (ARC)
Connect to the HDMI input on the TV.
e LAN
Connect to the LAN input on a
broadband modem or router.
f DIGITAL IN-OPTICAL
Connect to an optical audio output on the
TV or a digital device.
g DIGITAL IN-COAXIAL
Connect to a coaxial audio output on the
TV or a digital device.
FM ANTENNA
