6. Setup

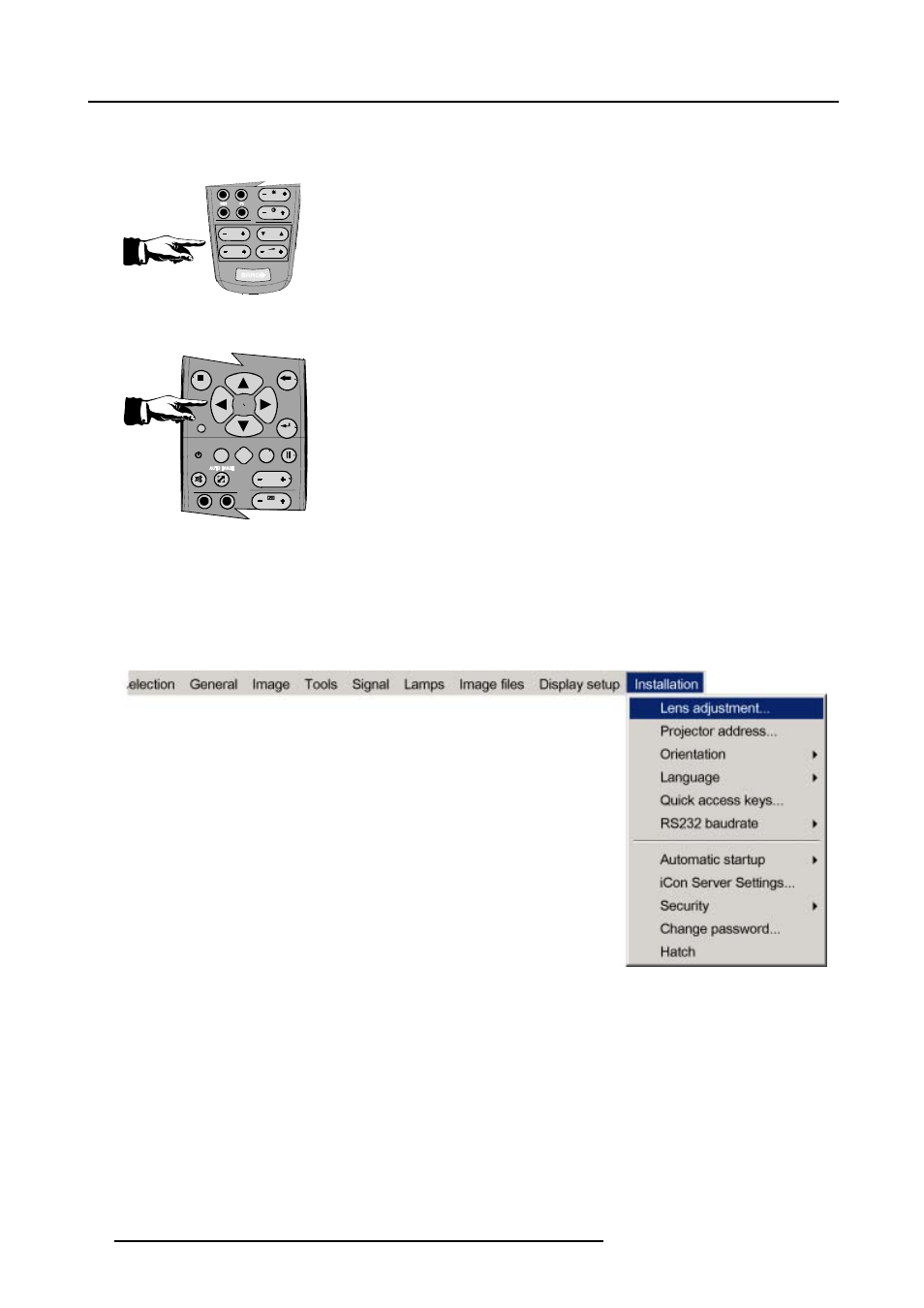

How to Zoom/focus or shift via the RCU (or keypad)
1. Press LENS ZOOM or
LENS FOCUS or LENS SHIFT on the RCU
3
1
4
2
L EN S
Z O O M
L EN S
SH I F T
L EN S
F O C U S VO L
C O N T R
B R I G H T N
Image 6-8
2. Use the arrow keys to adjust
9 0
EN T ER
M EN U B A C K
D I G I
Z O O M
PH A SE
PA U SE PI P L O G O
Image 6-9
How to Zoom/focus or shift in the OSD ?
1. Press MENU to activate the Tool bar
2. Press → to select the Installation
3. Press ↓ to Pull down the Installation menu
4. Use ↑ or ↓ to select Lens Adjustments...
Image 6-10
5. Press ENTER
