5. Connections

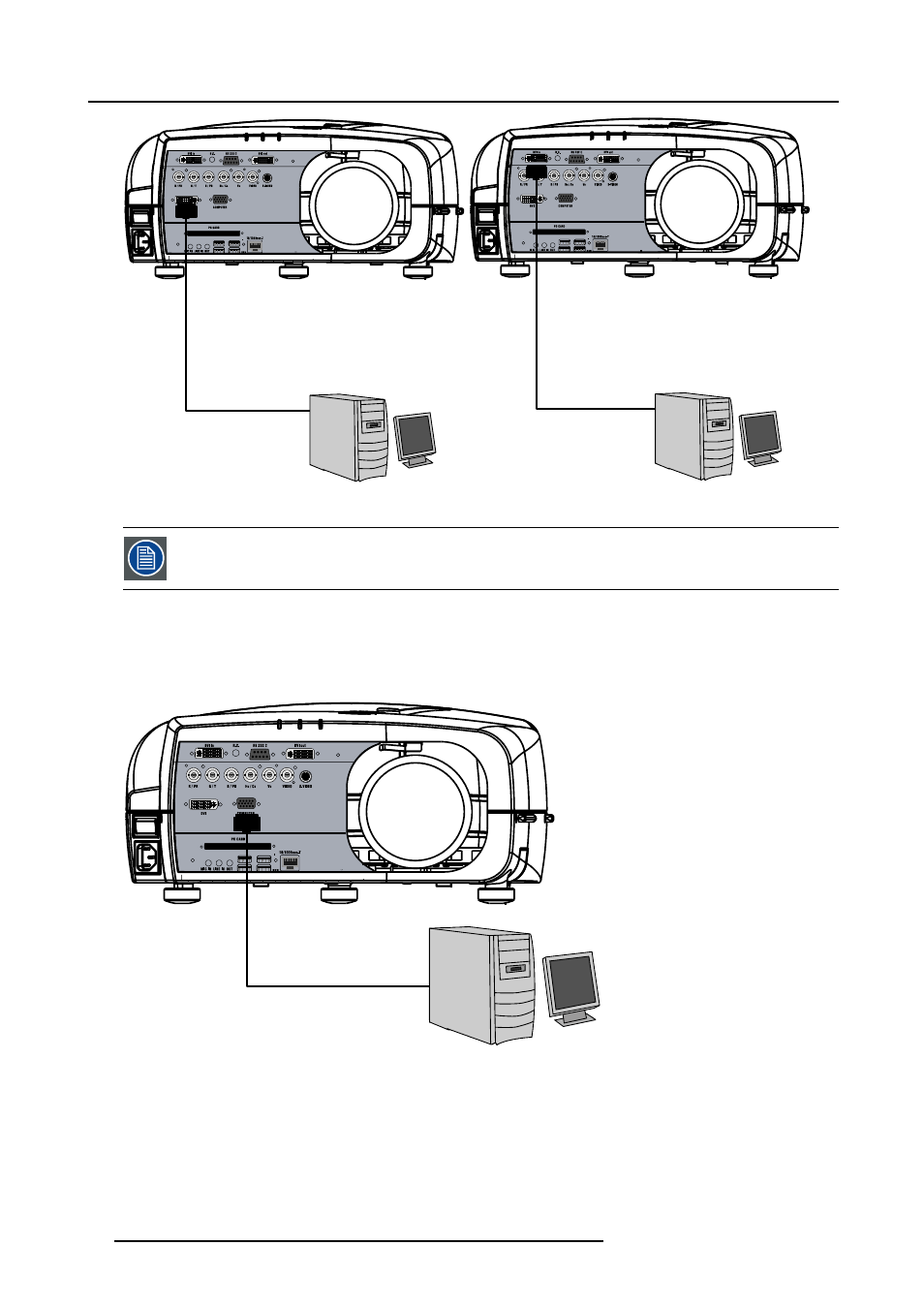

Image 5-13
Left side : DVI connection on Layer 2, right side : DVI connection on Layer 0
Note that the 2 DVI outputs are identical and are processed in the same way in the projector
5.3.7 Connecting a computer signal
How to connect a computer signal
1. Connect the D15 connector to the projector’s Computer input
Image 5-14
5.3.8 The DVI output
What can be done ?
The DVI output is a copy of the projector’s complete desktop image (containing also the source windows) and can be connected
to an external monitor. Some monitors can fail to synchronize on the DVI signal, in this case disable the Full screen synchronous
representation
function in the Display Settings menu.
