4. Installation
4.2 Lens installation
How to install ?
1. Take the lens out of its packing material
2. Fix the lens by placing it in the housing

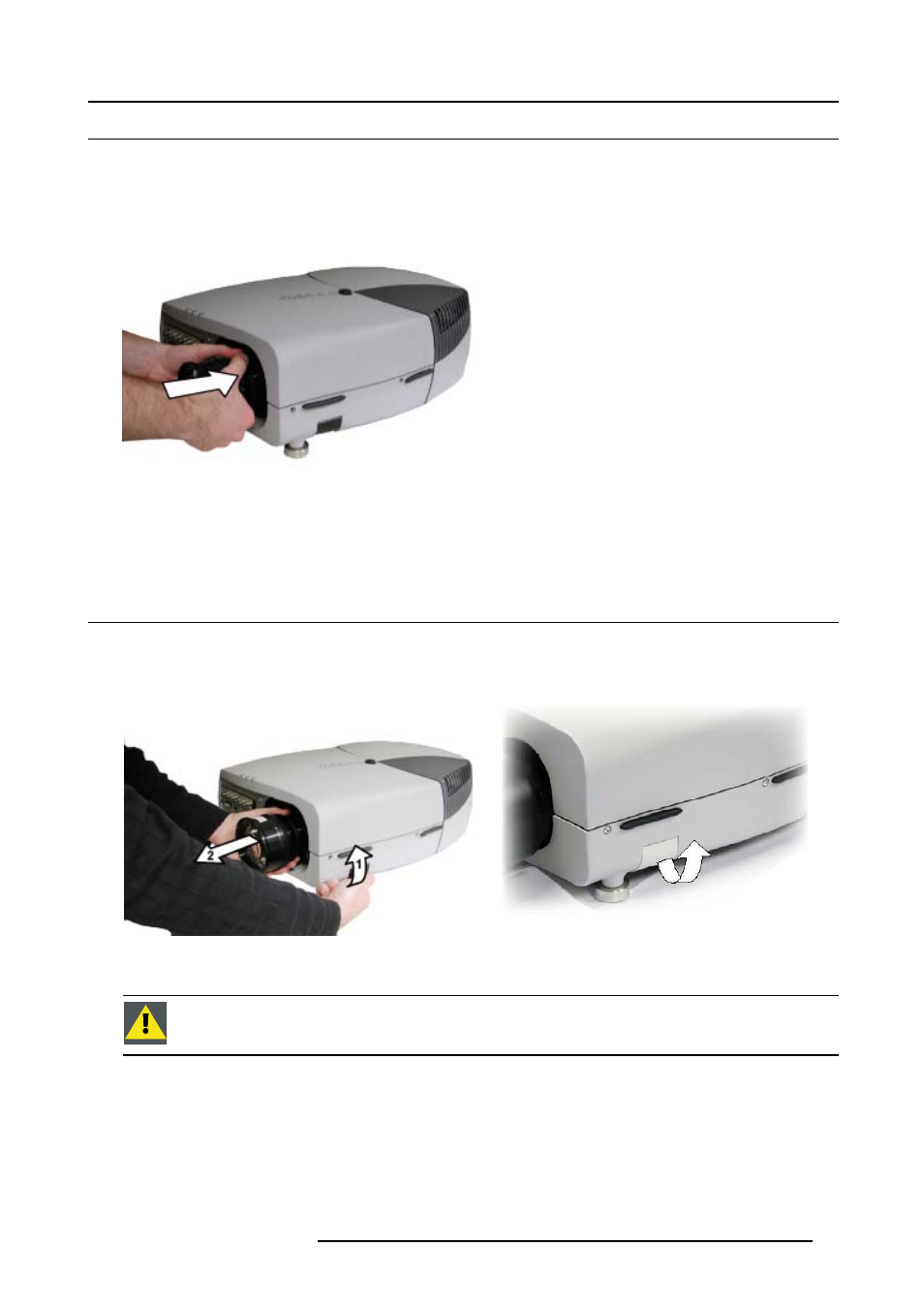

Image 4-3
Note: In case of a motorized lens the female jack must be in front of the male jack located in the upper-left part of the housing
in the projector
3. Push carefully to lock the lens in the housing
4.3 Removing the lens
How to remove the lens ?
1. Unlock the lens by pulling the handle located on the right side of the projector
Image 4-4
Image 4-5
location of the lens handle
2. Remove the lens out of its housing
C AUTION : Never transport the projector with the lens mounted on it !
Always remove the lens before transporting the projector.
