MENU CH VOL POWER
+ –
▼ ▲ ▼ ▲ ▼ ▲
SLEEP CC
2
S-VIDEO S-VIDEO
VIDEO VIDEO AUDIO AUDIO
RF IN RF IN
VIDEO VIDEO AUDIO AUDIO
IN IN OUT OUT
OUT OUT IN IN
S-VIDEO S-VIDEO VGA/S-AUDIO VGA/S-AUDIO S-AUDIO S-AUDIO
VGA IN VGA IN VGA OUT VGA OUT
RS 232 RS 232
SMART SMART PLUG PLUG
S-VIDEO S-VIDEO
VIDEO VIDEO AUDIO AUDIO VIDEO VIDEO AUDIO AUDIO
OUT OUT IN IN
S-VIDEO S-VIDEO S-AUDIO S-AUDIO S-AUDIO S-AUDIO RS 232 RS 232
ANTENNA
IN
VIDEO AUDIO
IN IN
OUT OUT
3
SMART SMART
PLUG PLUG
CLONE CLONE
PORT PORT
S-VIDEO S-VIDEO
VIDEO VIDEO AUDIO AUDIO
RF IN RF IN
VIDEO VIDEO AUDIO AUDIO
IN IN OUT OUT
OUT OUT IN IN
S-VIDEO S-VIDEO VGA/S-AUDIO VGA/S-AUDIO S-AUDIO S-AUDIO
VGA IN VGA IN VGA OUT VGA OUT
RS 232 RS 232
1
OUT
S-VIDEO
CLONE CLONE
PORT PORT
E N H A NCE
D
FOCUS
ScanCard II
E N H A NCE D
FOCUS
ScanCard II
17
Optional S-VHS VCR
Rear Jacks of the
ScanCard II Assembly
Back of TV
Front Control Panel of TV
S-VIDEO
Cable
(supplied with optional
S-VHS VCR)
Audio RCA Phono
Plug Cable
(not supplied)
Jack Panel of
Optional S-VHS VCR

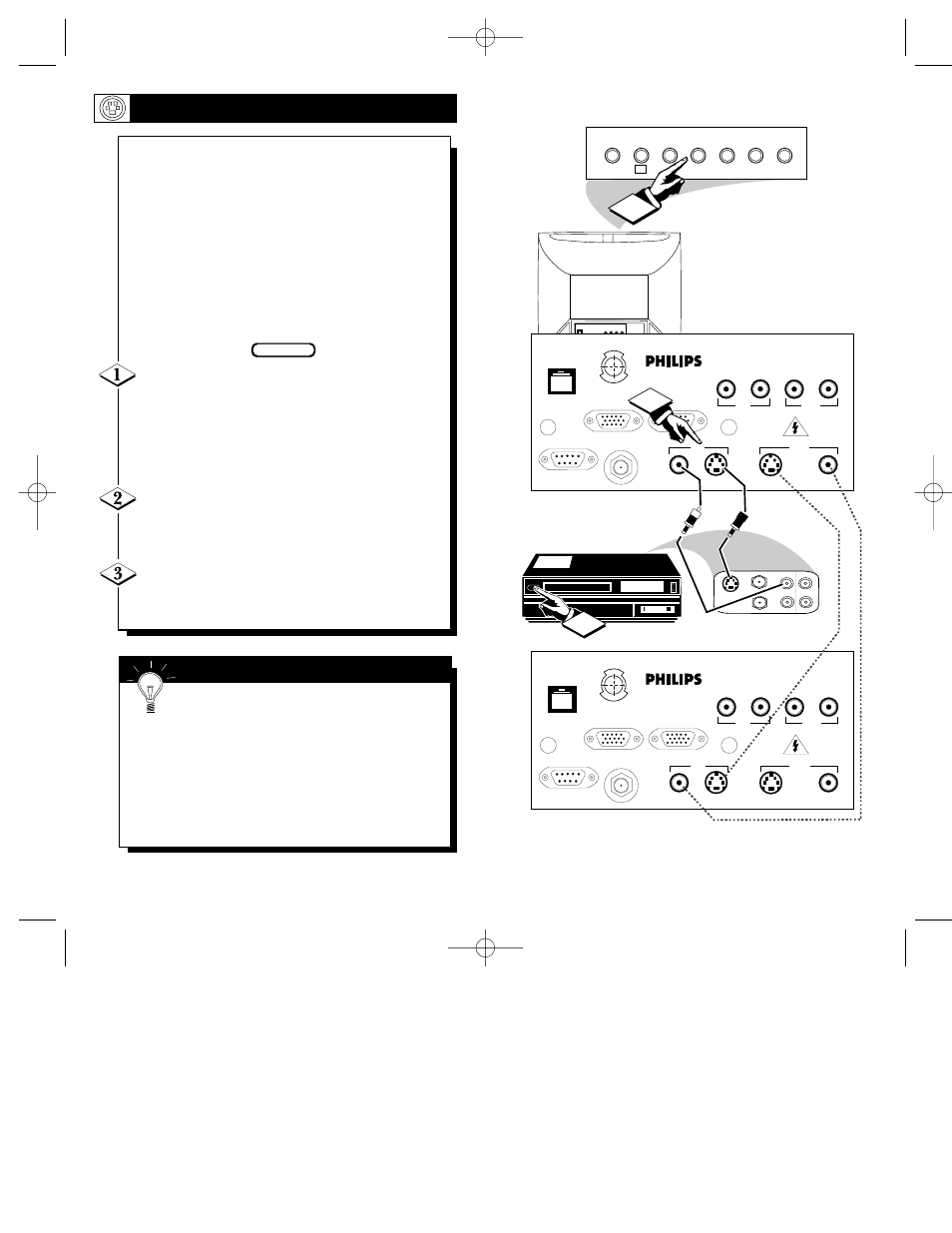

Optional VGA/S-AUDIO; S-VIDEO Hook
Up of Second TV Using Loop-Thru Outputs
S-V
IDEO
I
NPUTS
T he S(uper)-Video connection on the rear
of the TV can give you better picture
detail and clarity, for the playback of S-VHS
VCR tapes, rather than the normal antenna
picture connections.
Note: The VCR (or accessory device) must
have a S-VIDEO OUT(put) jack in order for
you to complete the steps and connections
shown to the right.
Connect the S-VIDEO (S-VHS) OUT(put)
jack from the VCR (or other source) to the V-
VIDEO IN(put) jack on the TV.
Normally the S-VIDEO connecting cable will be
supplied with accessory devices supplied with a
S-VIDEO jack.
Press the CHANNEL ▼ button two channels
below the lowest broadcast channel to activate
the S-VIDEO inputs/outputs.
Turn the VCR ON. Insert a pre-recorded S-
VHS tape into the VCR. Press PLAY on the VCR
to view the tape on the TV.
BEGIN
Remember, after it is connected an easy
way to select the S-VIDEO mode is to scan
two channels below the lowest broadcast channel.
NOTE: If you have a stereo VCR, “Y”
Connectors are available (from your dealer or
Parts Information Center 1-800-292-6066) to con-
nect to the audio input on the TV.
S MART H ELP
16
