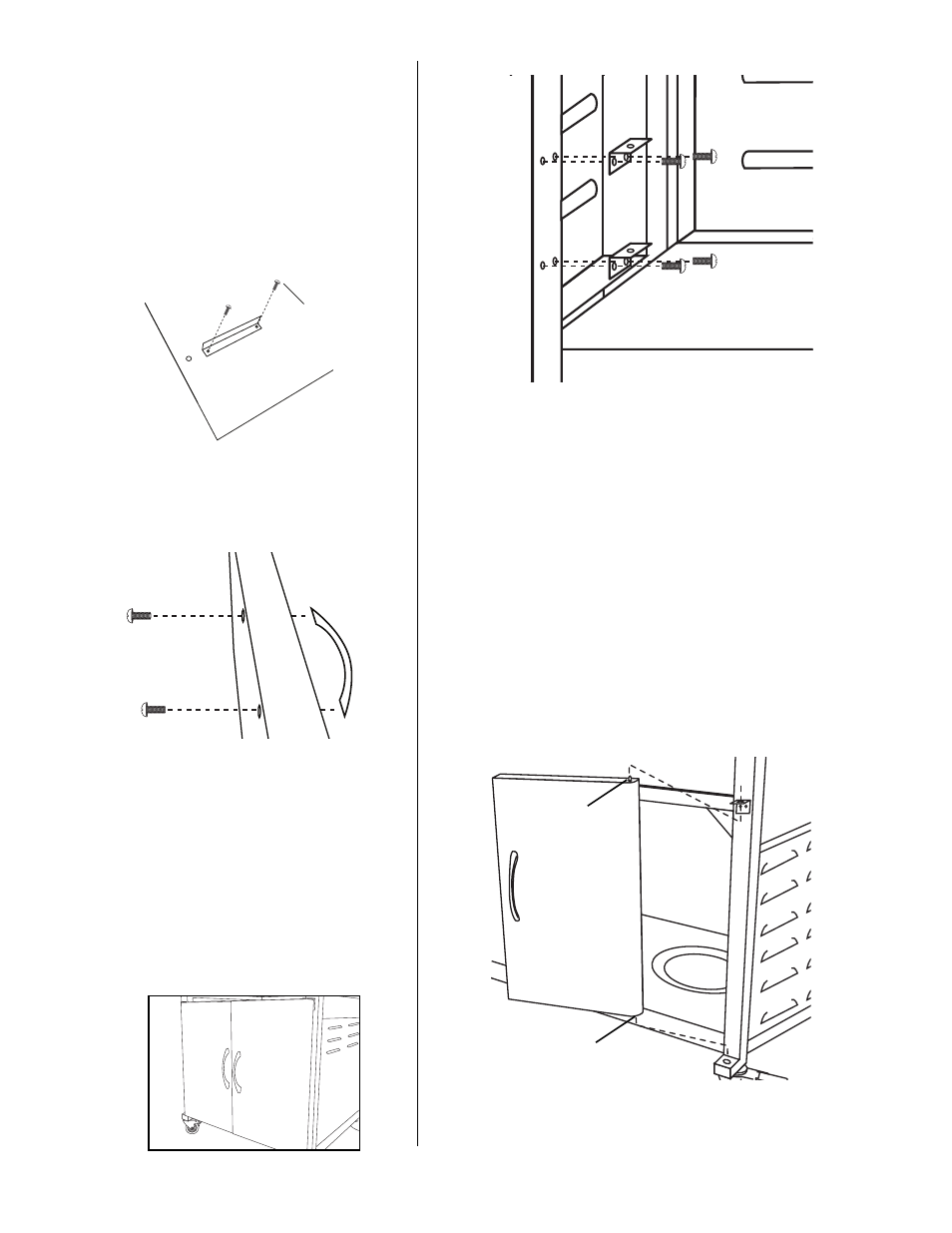

Step 10
Attach the two basket brackets to
the inside left front leg using four
M4 X 10mm bolts.
Step 11
Attach the basket guide onto the
left side door rear panel using two
M4 X 10mm bolts.
Step 12
Attach the door handles using two
M4 X 40mm bolts.
Step 13
Insert hinge pin in bottom of right
side door into hole at the bottom
right front cart leg then align door
with right side door bracket.
Depress spring pin located on top
edge of door and slide door toward
right side door bracket until spring
pin locks into hole in door bracket.
Repeat for other door
Spring Pin
Hinge Pin
