Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.

CAUTION!

Some parts
may contain sharp
edges. Wear
protective gloves if
necessary.

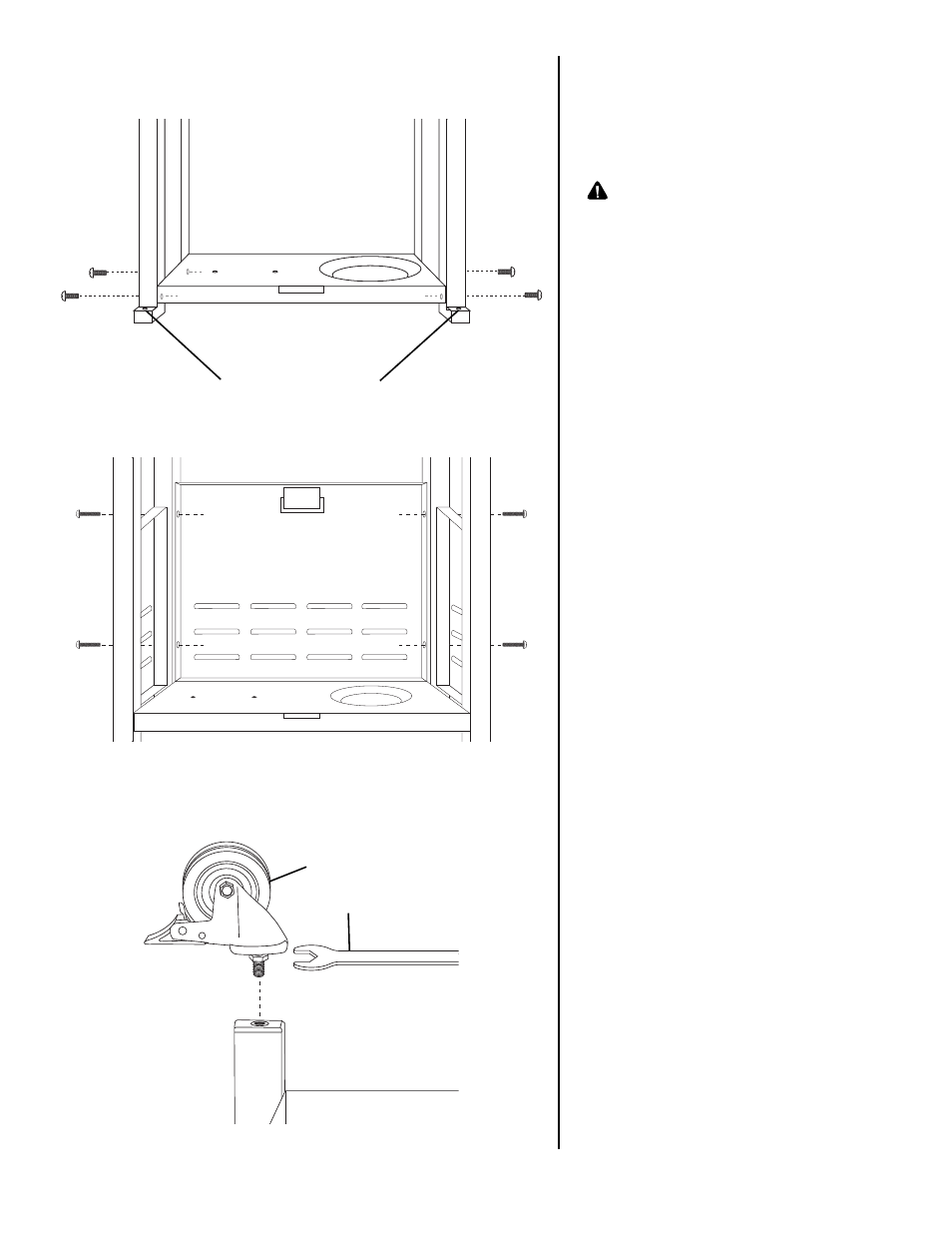

Step 1

Attach cart base to side panels.
Insert four M6 X 50mm bolts
through cart base and into legs and
tighten securely. Be sure the door
hinge pin holes face forward.

Step 2

Attach back panel to legs using
four M6 X 50mm bolts.

NOTE: With the help of a friend, turn

the cart assembly over. Try to
minimize the stress to the legs.

Step 3

Attach locking casters to the bottom
of the legs. Tighten caster bolts
securely using hex nut wrench
provided in parts pack.

Locking Caster

Hex Nut Wrench

Door Hinge Pin Holes
