Brinkmann ProSeries 4655 User Manual
Page 26
25

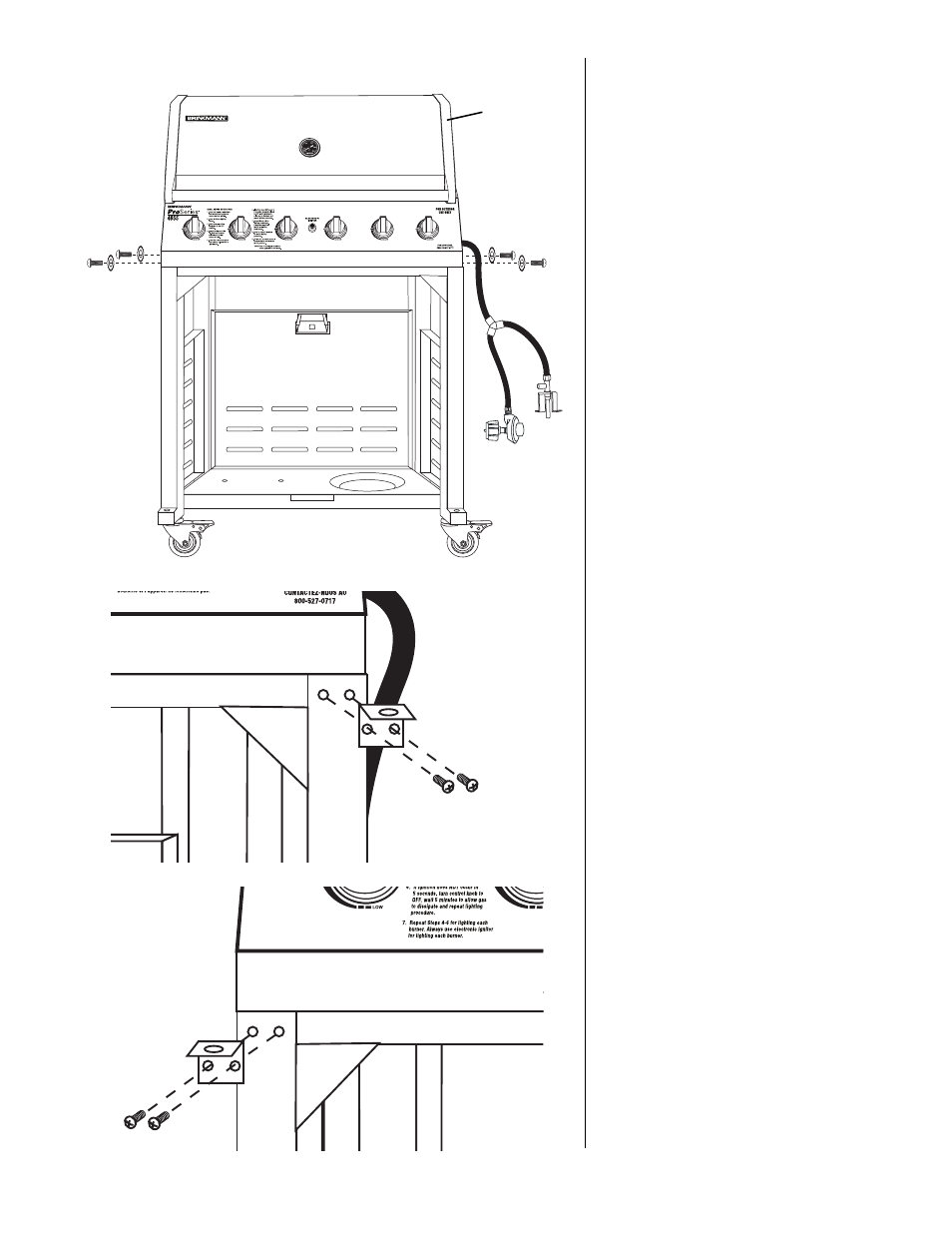

Step 7
Secure using four M6 X15mm bolts
with star washers.
Step 8
Attach right side door bracket to
right front cart panel using two
M4 X 10mm bolts. The right side
door bracket is stamped with an 'R.'
Step 9
Attach left side door bracket to left
front cart panel using two
M4 X 10mm bolts. The left side
door bracket is stamped with an 'L.'
Grill Body
Assembly
