7
c SCART TO TV
Connects to the scart input on the TV.
d HDMI OUT
Connects to the HDMI input on the TV.
e VIDEO OUT
Connects to the composite video input on
the TV.
f AUDIO IN-AUX
Connects to the analogue audio output on
the TV or an analogue device.
g FM ANTENNA
Connects the FM antenna for radio
reception.
Connect to the TV
Connect your home theatre directly to a TV
through one of the following connectors (from
highest to basic quality video):
a HDMI
b SCART
c Composite video
Option 1: Connect to the TV through
HDMI
Note
• If the HDTV has a DVI connector, connect
using an HDMI/DVI adapter.
(Cable not supplied)
TV
4 Connect your home
theatre
This section helps you connect your home theatre
to a TV and other devices. The basic connections
of the home theatre with its accessories are
provided in the Quick Start. For a comprehensive
interactive guide, see www.connectivityguide.
philips.com.
Note
• Refer to the type plate at the back or bottom
of the product for identification and supply
ratings.
• Before you make or change any connections,
ensure that all devices are disconnected from
the power outlet.

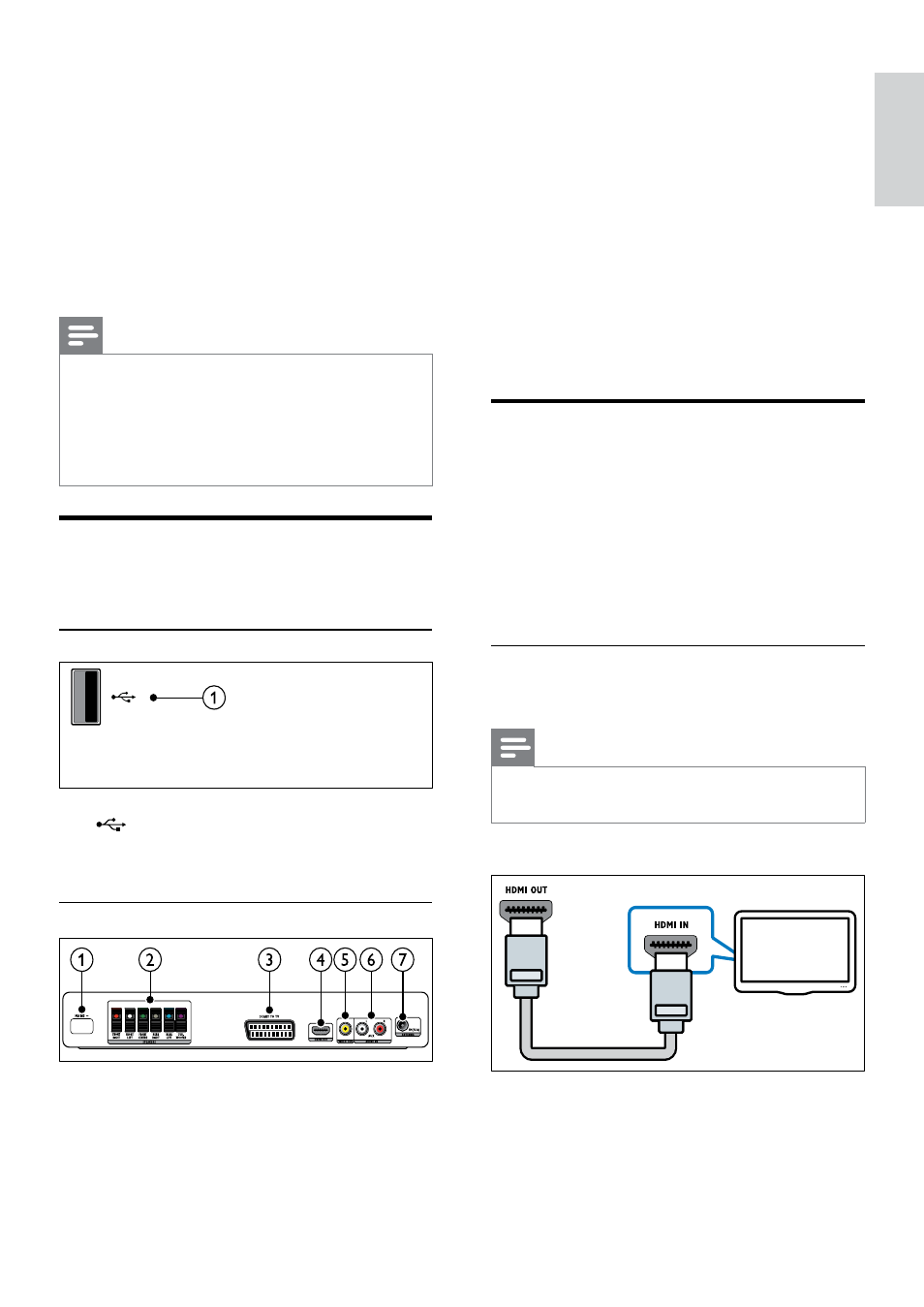

Connectors
Connect other devices to your home theatre.
Side connectors
a (USB)
Audio, video or picture input from a USB
storage device.
Back connectors
a AC MAINS~
Connects to the power supply.
b SPEAKERS
Connects to the supplied speakers and
subwoofer.
English
EN
