9
English
IMPORTANT!
– Before connecting the AC power cord to the
wall outlet, ensure that all other connections have
been made.
– Never make or change any connections with
the power switched on.
– The type plate is located at the rear or bottom
of the system.

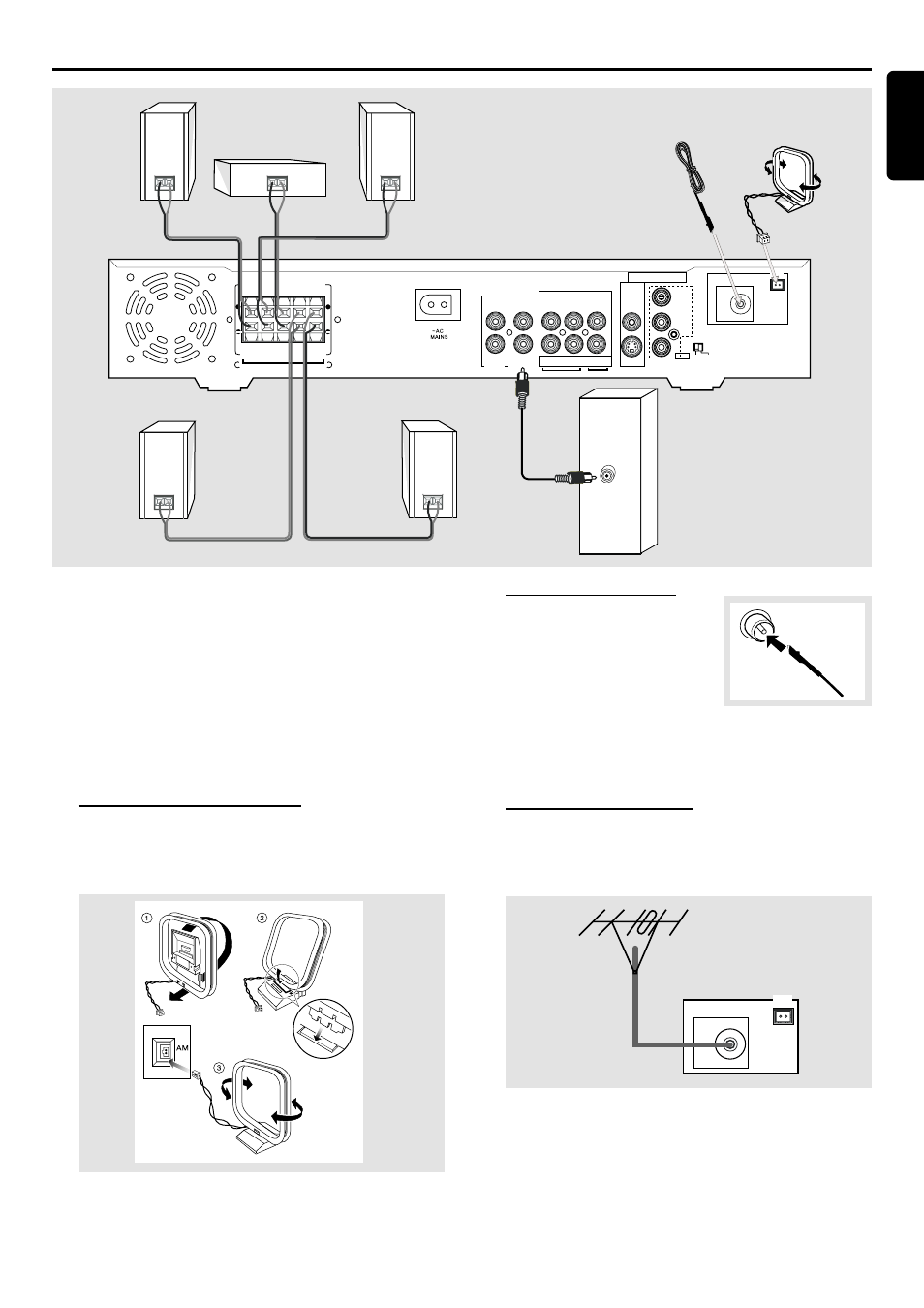

Connecting antennas
AM Indoor Loop Antenna
Connect the supplied AM loop antenna to the AM
jack. Position the loop antenna to receive the clearest
sound.
Fix the claw
to the slot
FM Indoor Antenna
Connect the supplied
FM antenna to the
FM 75
Ω
jack. Move the antenna in
various directions until the
clearest signal is received.
Note:
– Keep the antenna as far away as possible from the TV, VCR
or any radiation source to prevent unwanted noise.
FM Outdoor Antenna
For better FM reception, use a 75
Ω
coaxial cable (not
supplied) to connect the system to an outdoor FM antenna
as shown.
AM
FM/AM
ANTENNA
FM 75 Ω
Connections
C
ONNECTIONS
L C R SL SR
+ +
AM
FM/AM
ANTENNA
FM 75 Ω
S-VIDEO
CVBS
VIDEO OUT
AUDIO
AUX
IN
TV
IN
LINE
OUT DIGITAL
OUT
CENTER
OUT
DIGITAL
IN
WOOFER
LINE OUT
SURROUND FRONT CENTER
SPEAKER SYSTEMS (8 Ω )
Pr/Cr
Pb/Cb
Y
P-SCAN
ON OFF
CDR
AUDIO
INPUT
