Nut
Ignitor Assembly

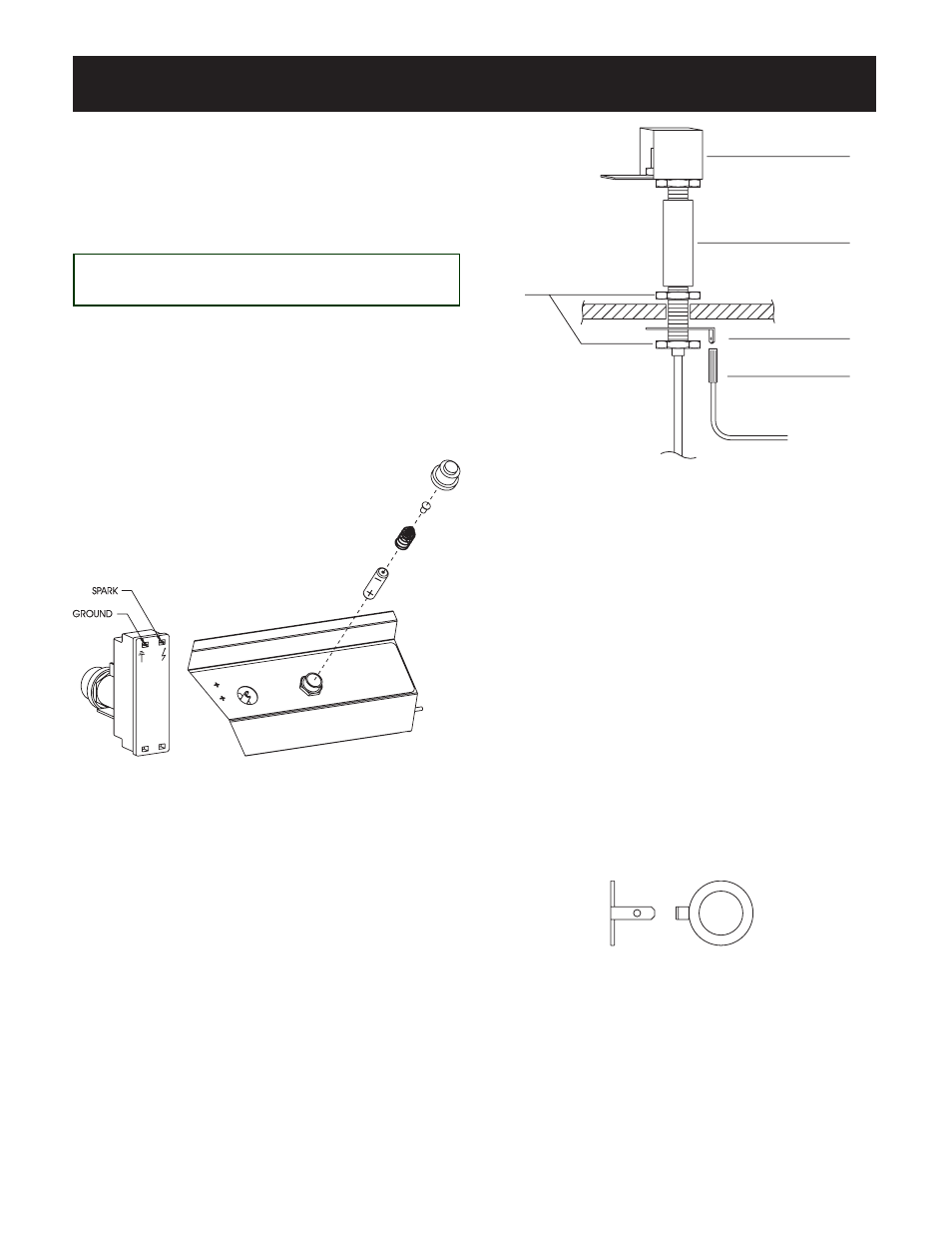

Slide the collector box spacer (26) and nut (provided
on assembly) onto the collector box shaft and tighten.
Figure 1.
Note: Peel protective film from control panel label before
installing ignitor.
G
RILL
A
SSEMBLY
Installing the Ignitor
Caution: Do not cut or damage ignitor wire.
Carefully thread the end of the ignitor wire through the
center hole in the grill bottom. Slide the ground lug (25)
over the ignitor wire and fasten with nut provided.
Attach one end of the ground wire (24) to the terminal on
the rear of the electronic ignitor. Attach the remaining end
to the ground lug. Figures 1 and 2.
Attach ignitor wire to the spark terminal on the rear of the
electronic ignitor.
Figure 1
25
Figure 2
