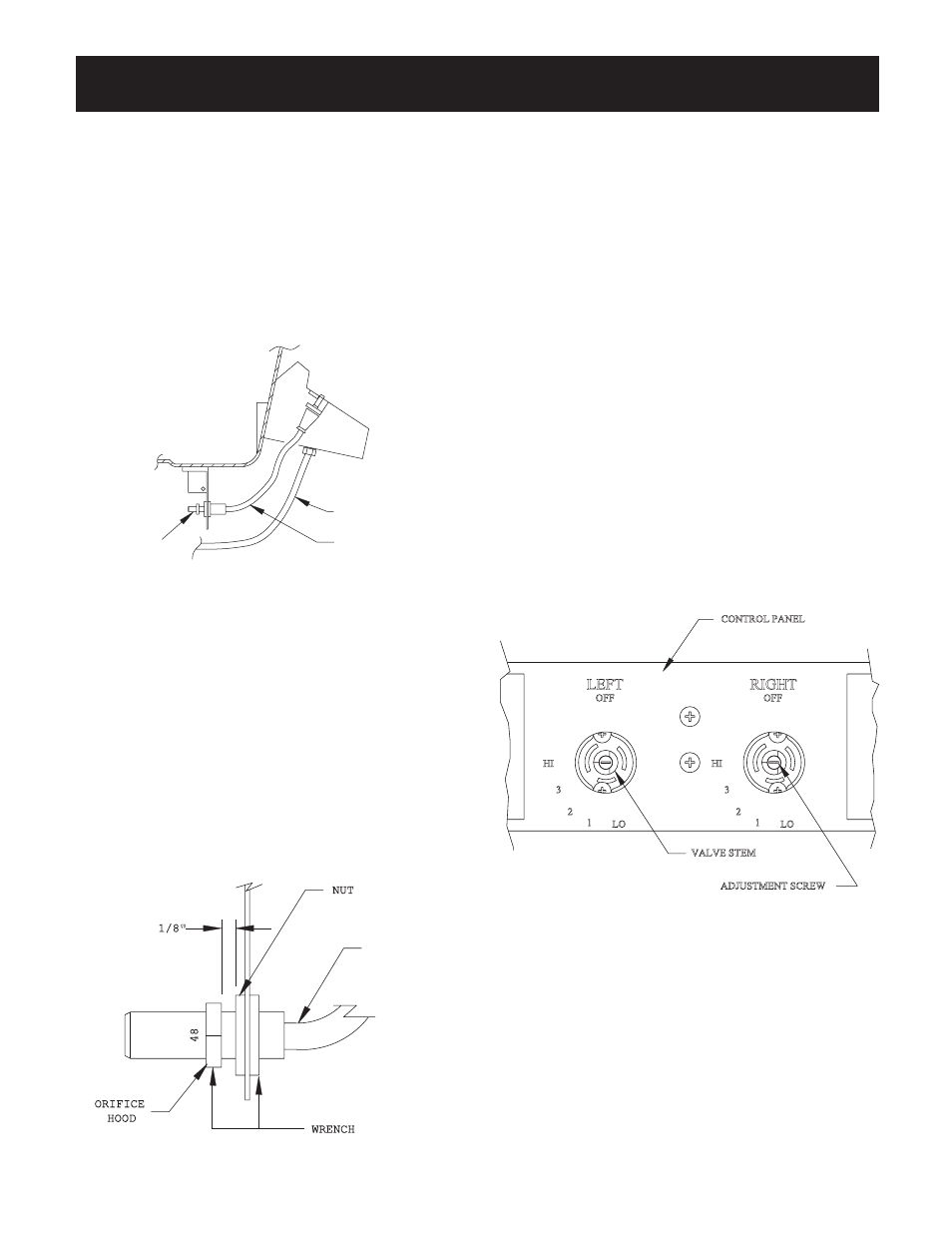

Gas Conversion
Propane grills include a conversion kit for natural gas. If
you have a natural grill and wish to convert it to propane
you will need to purchase the optional conversion kit
#BCK195.
Begin by removing all the components from the inside of
your grill. Locate and remove the orifice hoods mounted
on the underside of the grill body, using 2 wrenches as
shown. Figures 12 and 13.
Gas Conversion
Before installing the natural hoods, inspect them for dam-
age and note the number stamped on the side. The correct
hood will be marked "48".
The hoods are self-sealing, requiring no additional pipe
sealant. If you wish to use sealant, take care to add it to
the threads only to avoid blocking the orifice.
Thread the hoods onto the supply tubes leaving about a
1/8" gap between the hood and the locking nut. Figure
13.
Remove the hose and regulator from the valve.
Replace the components inside of your grill.
Remove the knobs from the valve assembly and locate the
adjustment screws on the inside of the valve stem. Us-
ing a small screw driver, turn the screws clockwise until
screw bottoms, then turn the screws four (4) FULL turns
counterclockwise. Do not back the screws out more than
4 1/2 turns or a leak may result. Figure 14.
Connect the grill to the natural gas supply.
Important: Before lighting your grill, check the gas
connections and the adjustment screws for leaks using
a soapy water solution.
Caution: Never use this or any gas appliance which
may be leaking gas.
Replace the knobs.
ADJUSTMENT SCREW
VALVE STEM
CONTROL PANEL
OFF
3
HI
OFF
RIGHT
3
HI
LEFT
1 LO
2
LO
2
1
Figure 12
Figure 13
Figure 14
Place the completed conversion label adjacent to the
product identification label, located on the control panel
(26).
NOTE: When converting your grill to Natural gas and
your incoming gas pressure is below 7", a DPA105 regula-
tor kit can be purchased.
