Page 10 B100691-4-0606
15
AIR
SHUTTER
G
RILL
A
SSEMBLY

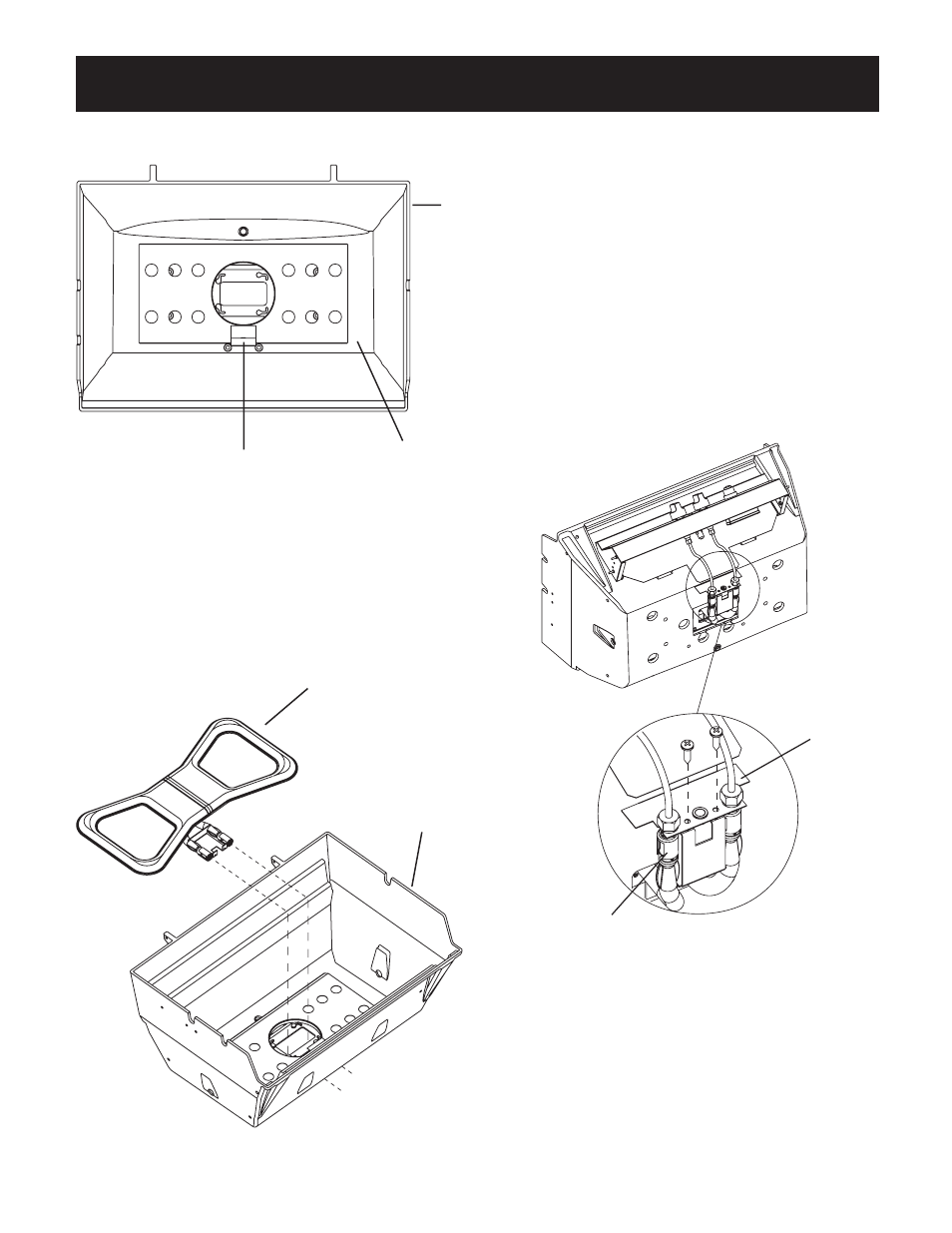

Radiation Shield
Place the radiation shield (10) in the grill bottom (22).
Figure 3.
Installing the Burner
Insert the burner assembly (9) into the grill bottom (22) with
the venturi tubes facing the front of the grill. Figure 4.
The gas jets from the control valve will be inside the ends
of the venturi tubes when properly installed. Attach venturi
to manifold mounting bracket (15) with 2-8 x 3/4 Phillips
screws. Figure 5.
Figure 5
Figure 3
9
22
Figure 4
27
10
22
