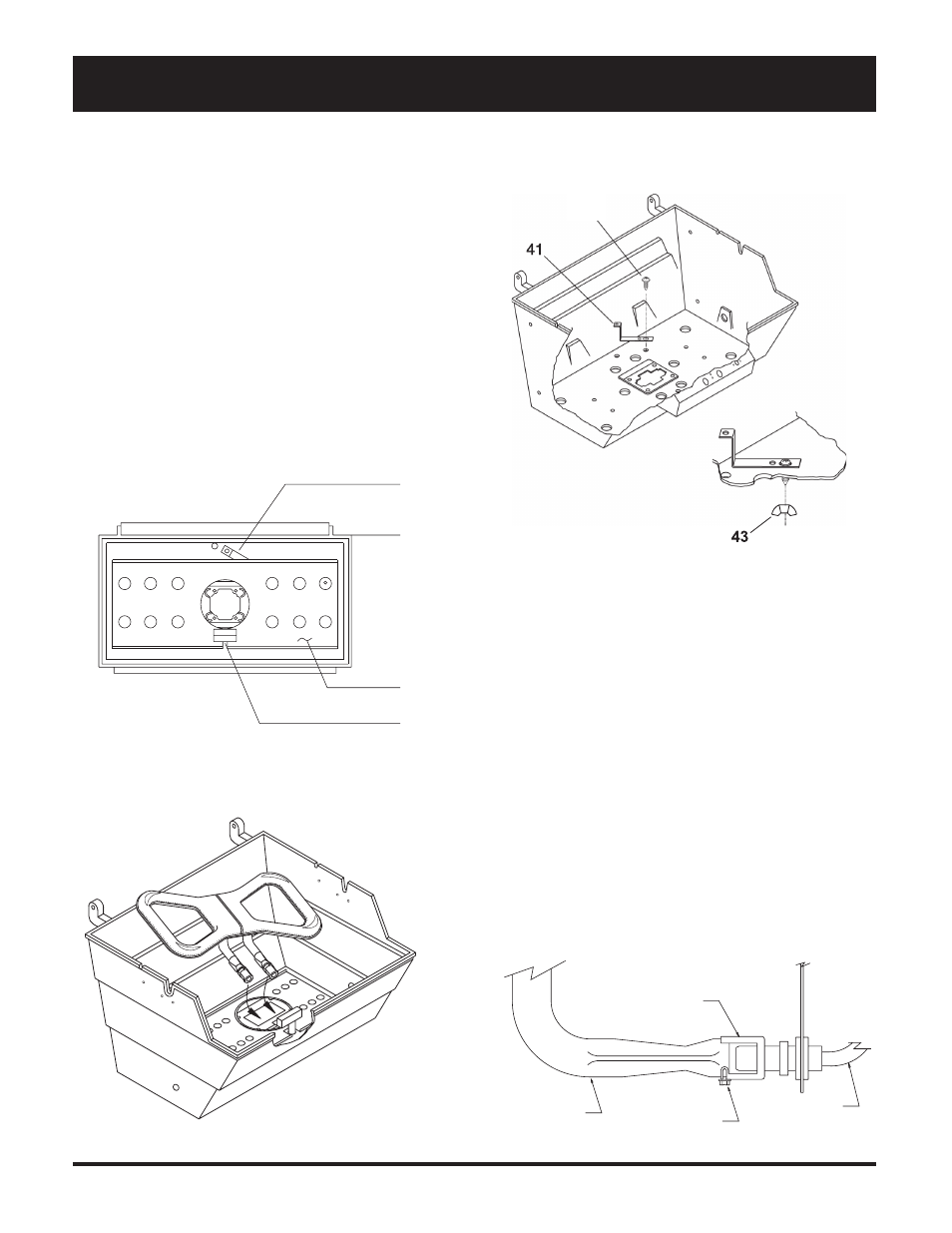

Burner Stabilizing Bracket
(Portable Cart Models Only)
Tip: Test the alignment of the burner stabilizing
brackets before tightening the burner stabilizing
bracket.
Install the burner stabilizing bracket (41) and
fasten with the 10-24 x 3/4 phillips screw and
10-24 wing nut.
Radiation Shield
Place the radiation shield (20) in the grill
bottom. F
IGURE
9.
Installing the Burner
Insert the burner assembly into the grill bottom with
the venturi tubes facing the front of the grill. F
IGURE
10.
The gas jets from the control valve will be inside the
ends of the venturi tubes when properly installed.
F
IGURE 11.
F
IGURE
8
19
8
41
20
INSTALL THIS SIDE UP
F
IGURE
9
F
IGURE
10
11
Air
Shutter
Shutter Set
Screw
Venturi
Tube
F
IGURE
11
