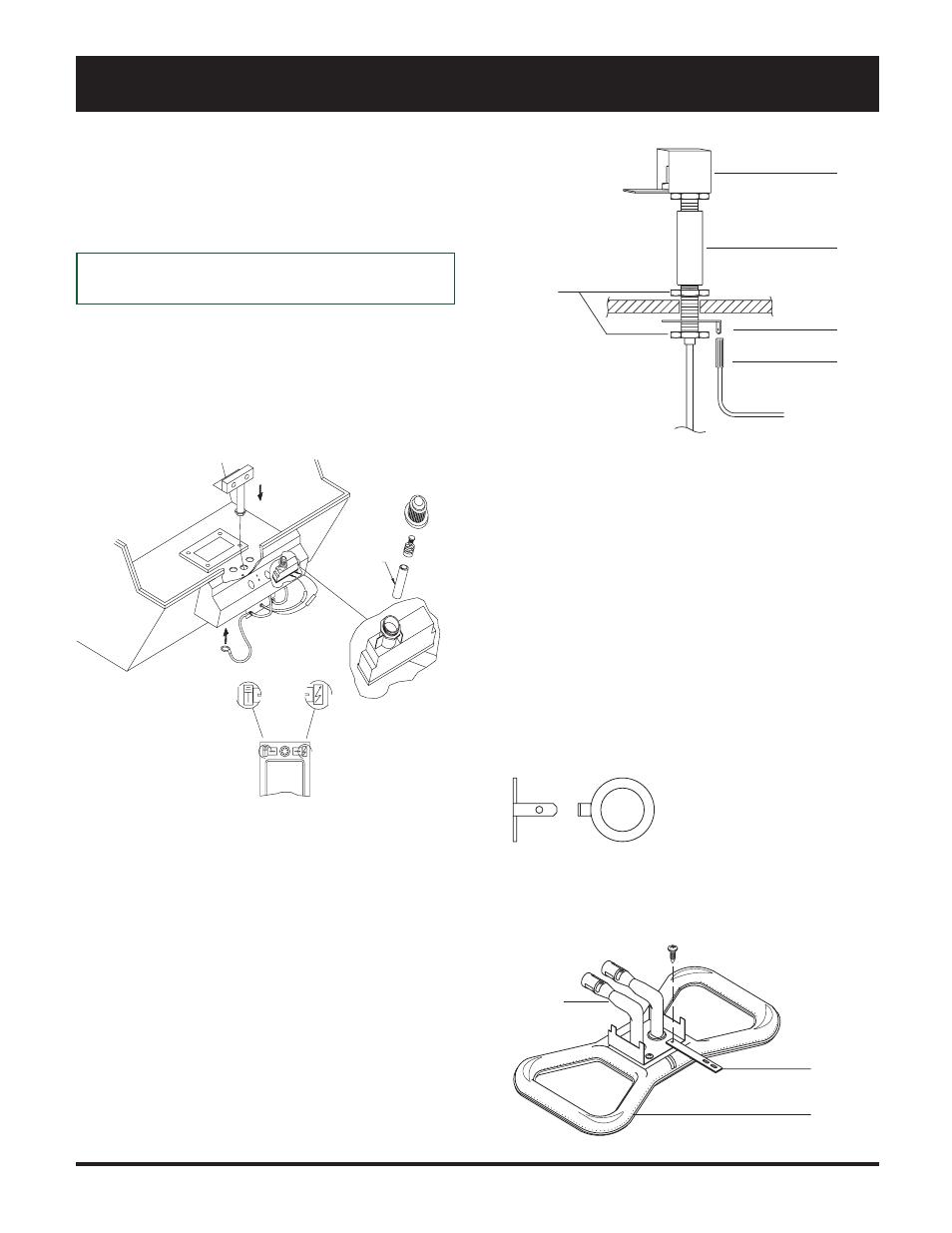

Page 8 P3, P4
Burner Stabilizing Arm
(Portable Cart Models Only)
On the burner assembly (18) remove the rear
screw, insert the burner stabilizing arm (40), and
reinstall the screw as shown. F
IGURE
7.
Note: Burner Stabilizing Arm, Burner Stabilizing
Bracket, and Securing the Burner sections of this
manual apply only to portable cart models ONLY.
Hardware is packaged with your cart.
G
RILL
A
SSEMBLY
Igniter Assembly
Slide the collector box spacer (21) and nut
(provided on assembly) onto the collector box
shaft and tighten. F
IGURE
5.
Note: Peel protective film from control panel
before installing igniter.
Installing the Igniter
C
AUTION
: D
O NOT CUT OR DAMAGE IGNITER WIRE
.
Carefully thread the end of the igniter wire
through the center hole in the grill bottom. Slide
the ground lug (24) over the igniter wire and
fasten with nut provided.
Attach one end of the ground wire (25) to the
terminal on the rear of the electronic igniter.
Attach the remaining end to the ground lug.
F
IGURES
5
AND
6.
Nut
25
24
21
19
F
IGURE
5
40
18
Venturi
Tubes
F
IGURE
7
24
AA ALKALINE
BATTERY
-
+
Battery Installation: Slide the spring onto the negative end of the battery.
Drop the battery and spring into the igniter and replace the button.
GROUND SPARK
F
IGURE
6
