Philips 4-Channel Sound Card - Manual (Page 13)

Philips Seismic Edge
 
13
Connectors for Philips Seismic Edge
 
Sound Card
EXTERNAL CONNECTORS:
J1: 3.5mm Stereo Jack for LINE IN
J2: 3.5mm Stereo Jack for MIC IN
J3: 3.5mm Stereo Jack for FRONT SPEAKER
J4: 3.5mm Stereo Jack for REAR SPEAKER
J5: Connector for MIDI/JOYSTICK
INTERNAL CONNECTORS:
J10: Connector for CD AUDIO IN (ATAPI)
J12: Connector for AUX IN (optional)
J13: Connector for TAD/VOICE MODEM
J1
llllllllllllllllllllllllllllllllll lllllll
Front
Speaker
LINE IN
MIDI/
JOYSTICK
AC
97
MIC IN J2
Rear
Speaker J3
J4
J5
J12
CD-IN
J10
AUX In
J13
TAD
PHILIPS
Connecting Your Sound Card

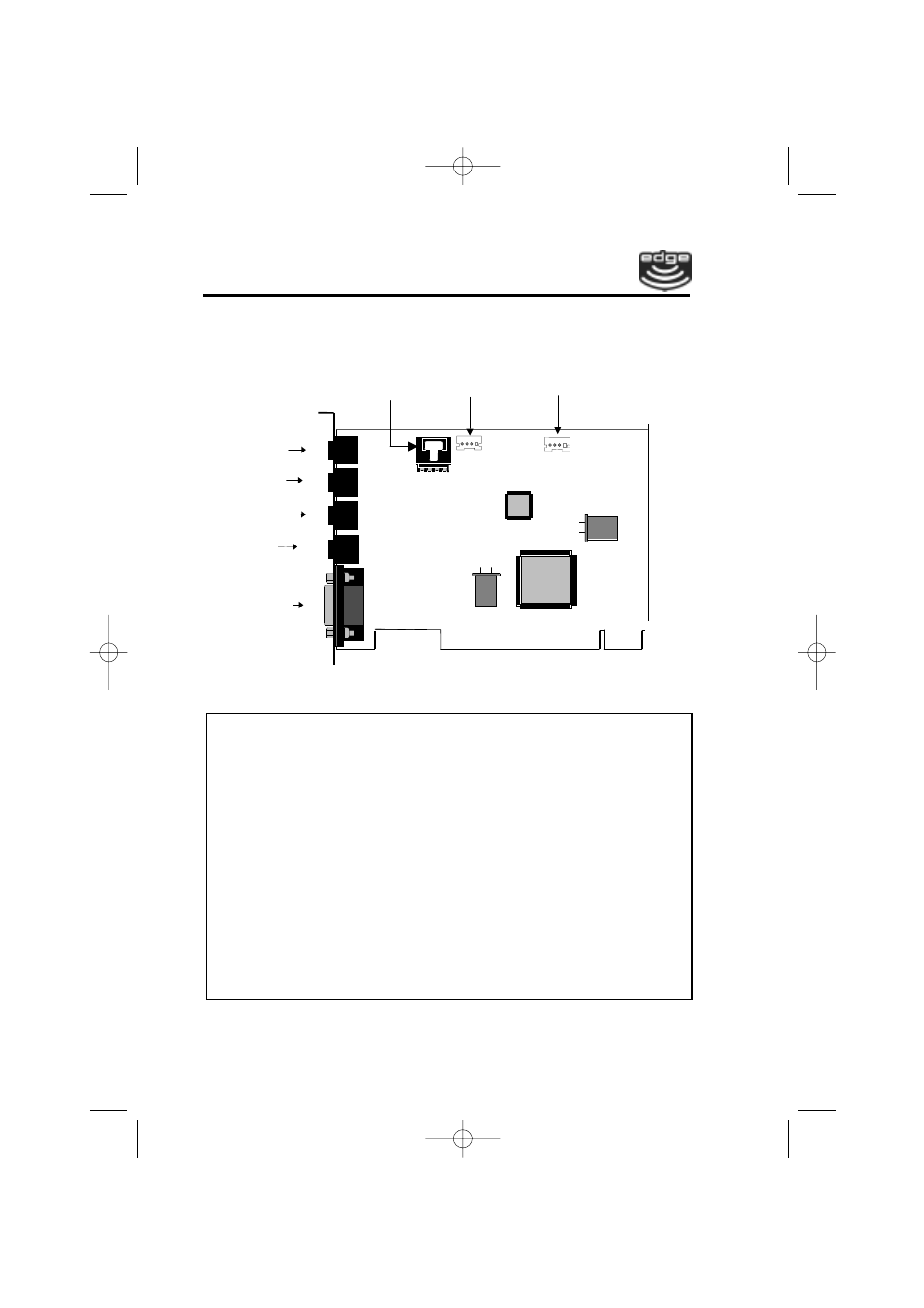

Card Diagram
