Page 12

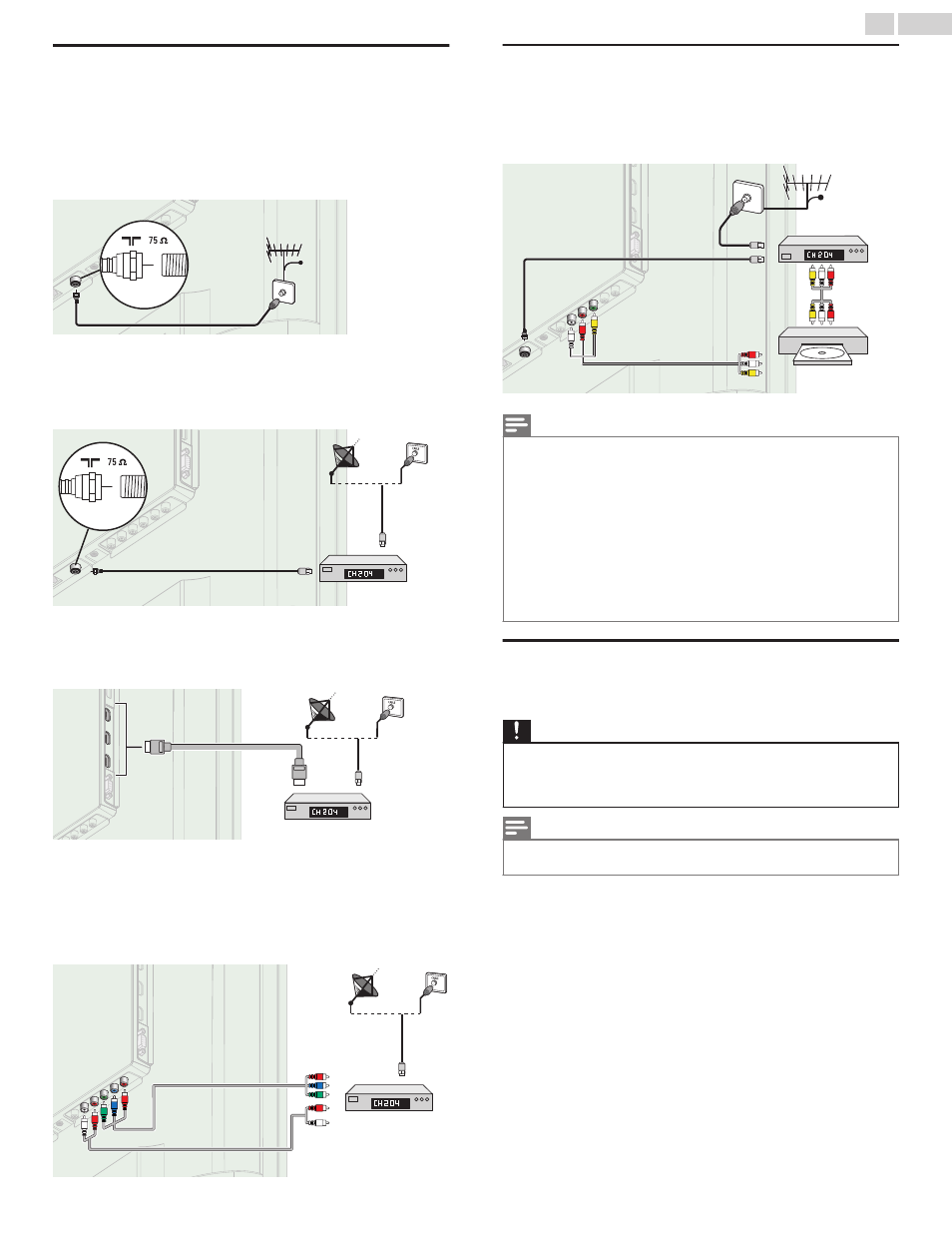

Connecting Antenna or Cable / Satellite /
IPTV Box
Be sure your Antenna or another Device is connected properly before
plugging in the AC Power Cord.
If connecting to an Antenna through an RF cable
Any DTV Programs that are Broadcast in your area can be received for
free through an Antenna Connection.
IN
IN
IN
OUT
OUT
OUT
RF cable
Cable
antenna
If connecting Cable / Satellite / IPTV Box using an RF cable
If the TV is connected to a Cable / Satellite Set-top Box via a Coaxial
Connection, set the TV to channel 3/4 or the channel specified by the
service provider.
OUT
OUT
OUT
IN
IN
IN
IN
IN
IN
Set-top Box
Set-top Box
Set-top Box
RF cable
RF cable
RF cable
RF cable
RF cable
RF cable
antenna
antenna
antenna
If connecting Cable / Satellite / IPTV Box using an HDMI cable
If the TV is connected to a Cable / Satellite Set-top Box via an HDMI
cable, make sure you select the correct Source by using S SOURCE.
IN
IN
IN
IN
IN
IN
OUT
OUT
OUT
Set-top Box
RF cable
HDMI cable
If connecting Cable / Satellite / IPTV Box using Component
Video Input
If the TV is connected to a cable / satellite set-top box via Component
Video Input, make sure you select the correct Component Video Source
by using S SOURCE.
IN
IN
IN
IN
IN
IN
IN
OUT
OUT
Set-top Box
Set-top Box
Set-top Box
RF cable
RF cable
RF cable
Component (Y/Pb/Pr)
Video cables
Component (Y/Pb/Pr)
Video cables
Component (Y/Pb/Pr)
Video cables
Audio (L/R) cables
Audio (L/R) cables
Audio (L/R) cables
Connecting a Cable / Satellite / IPTV Box, Blu-ray Disc /
DVD Recorder via Composite Connectors and Analog
Audio
Do Not place your Recorder too close to the Screen because some
Recorders can be susceptible to harmful interference from the TV.
Cable
Cable
Cable
IN
IN
IN
IN
IN
IN
IN
IN
IN
OUT
OUT
OUT
OUT
OUT
OUT
RF cable
RF cable
RF cable
RF cable
RF cable
RF cable
Audio (L/R) +
Video cables
Audio (L/R) +
Video cables
Audio (L/R) +
Video cables
OUT
OUT
OUT
IN
IN
IN
OUT
OUT
OUT
Set-top box
Blu-ray disc/DVD
recorder
Audio (L/R) + Video cables
Audio (L/R) + Video cables
Audio (L/R) + Video cables
Note(s)
●
If you have any question about the DTV’s Antenna, visit www.antennaweb.org for further
information.
●
Depending on your Antenna system, you may need different types of combiners (mixers)
or separators (splitters) for HDTV Signal. The minimum RF bandpass on these Devices is
2,000MHz or 2GHz.
●
For your safety and to avoid damage to this Unit, please unplug the RF Coaxial Cable from
the Antenna Input jack before moving the Unit.
●
If you did use an Antenna to receive Analog TV, it should also work for DTV reception.
Outdoor or attic Antennas will be more effective than a Set-top Box or inside Antenna.
●
To Turn On your reception source easily between Antenna and Cable, Install an Antenna
selector.
●
If you are not receiving a Signal from your Cable service, contact the Cable provider.
Plugging in the AC Power Cord
Make sure that the AC power cord must be plugged to an AC outlet after
all the necessary connections are made.
Caution
●
Do Not connect the AC Power Cord to an AC Power Supply outside the indicated voltage
of this Unit (120V AC).
●
Connecting the AC Power Cord to a Power Supply outside of this range may result in
Unit failure, degradation or electrical shock.
Note(s)
●
Each time you plug in the AC Power Cord, no operations will be performed for several
seconds. This is not a malfunction.
