Connect Accessory Devices
English
Française
Español
CABLE / ANTENNA

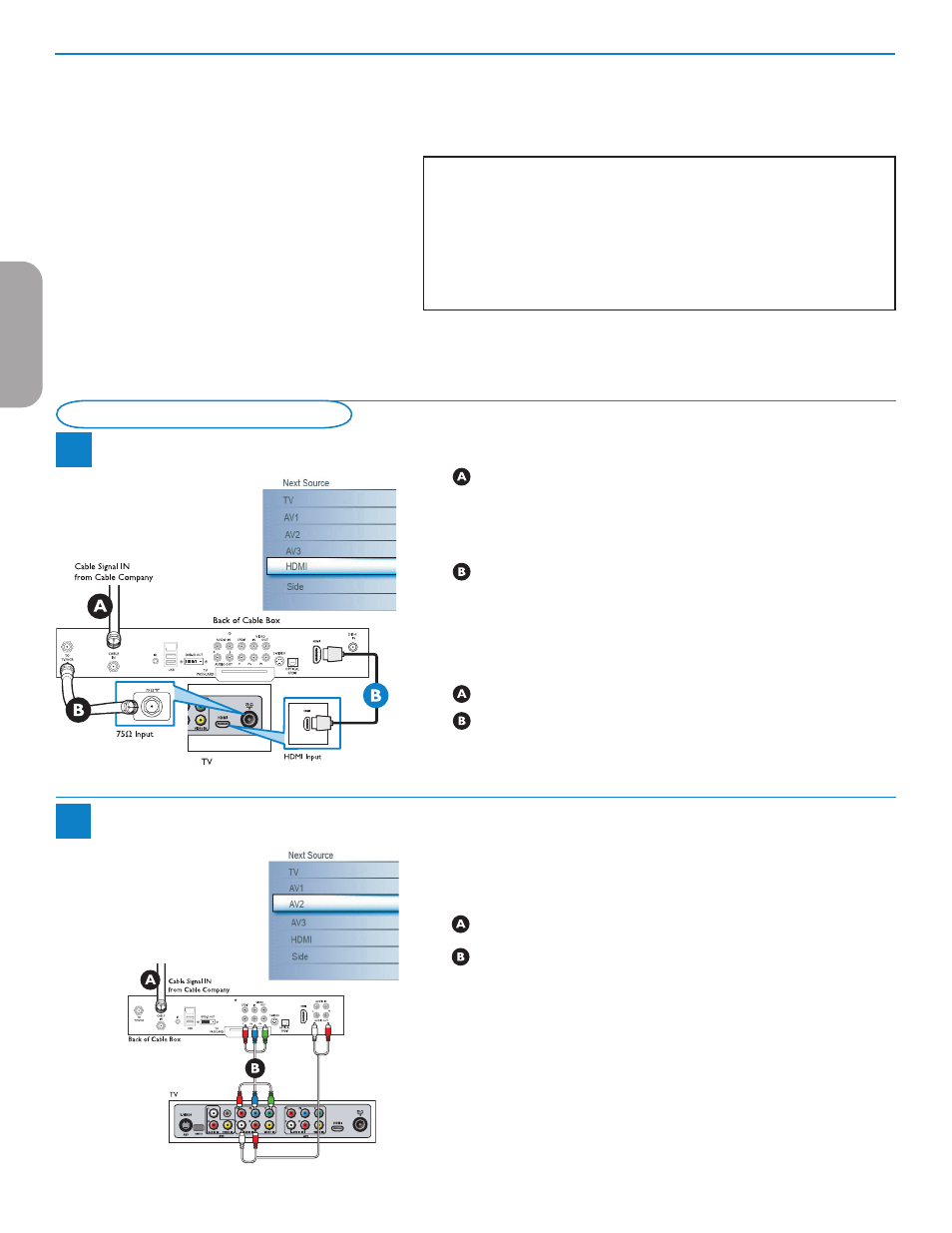

Using HDMI
Connect RF cable from wall to input at back of the cable box.
Set output switch on set-top box to CH 3 or 4 and tune TV to same
channel.
In some cases, cable box will automatically tune to channel 3 or 4. Just change
channels until picture appears.
Connect cable box to TV using HDMI cable.
Note : If the accessory device has DVI output only, use a DVI to HDMI adapter
cable to connect to the HDMI connector. You need to also connect the audio
cable to L and R AuDIo jacks. Next, go to Menu => Setup => Source
=> Analog Audio In => and select HDMI.
Using RF Cable
Connect RF cable from wall to input at the back of the cable box.
Use second RF to connect the cable box to the TV's antenna input.
This connection gives mono sound. For stereo sound use also composite audio/
video connection (Refer to panel 3).
1a Set Top Box to TV
Note : The above 2 features (Region ratings lock and Clear region ratings) will be available
only in sets manufactured after the cut-off timeline, specified by the FCC mandate.
Clear region ratings
This function allows you to clear all the Region Ratings settings.
& Select Clear region ratings with the cursor down.
é Press the cursor right to enter the list. You are asked to enter your code. (See
below).
Set/Change PIN
& Select Set or Change PIN with the cursor down.
é If no PIN-code exists yet, the menu item is set to Set PIN . Follow the
instructions on screen.
If a PIN-code has previously been entered, the menu item is set to
Change PIN . Follow the instructions on screen.
All number combinations from 0000 to 9999 are valid numbers.
“ The Menu preferences menu reappears with a message confirming that
the PIN has been created.
“ Select Start now.
‘ Press OK to activate.
1b Set-Top Box to TV
Using Component Video Input
Connect Component Video cable to input at back of the cable box.
Turn on TV and DVD Player/DVD recorder. Press CH+ or CH- on
remote control to tune to the video supplied by AV2.
Insert a prerecorded DVD into DVD player/DVD recorder and press
PLAY to verify correct connection.
( )
AUDIO OUT (DIGITAL) CABLE / ANTENNA
