3 If you have Optional Paper
Tray, connect it
(otherwise go to Step 4)
THANK YOU!
… FOR PURCHASING YOUR BROTHER MACHINE.
WE ARE SURE YOU WILL BE IMPRESSED WITH THE CONVENIENT WAY THAT
YOUR NEW MACHINE PERFORMS SO MANY TASKS WITH GREAT RESULTS!
Follow these simple instructions in numerical order.
For greater detail, consult your Owner’s Manual.
Alternatively, if you cannot solve a problem:
Refer to Frequently Asked Questions (FAQ’s) on Brother Solutions Web Site:
URL: http://solutions.brother.com
Call Brother Customer Service at: 0870 830 4000
Packing List
Keep the packing materials for possible future transport. If you do not pack the machine
properly, it may void your warranty.
Telephone Line Cord
Document Tray
with Extension
Owner’s Manual
Quick Setup Guide
AC Cord
Drum Unit Assembly
(TN-6300)
Document Support
External
Telephone Extension
Telephone
(Example
for the U.K.)
TAD TAD
– 1 –

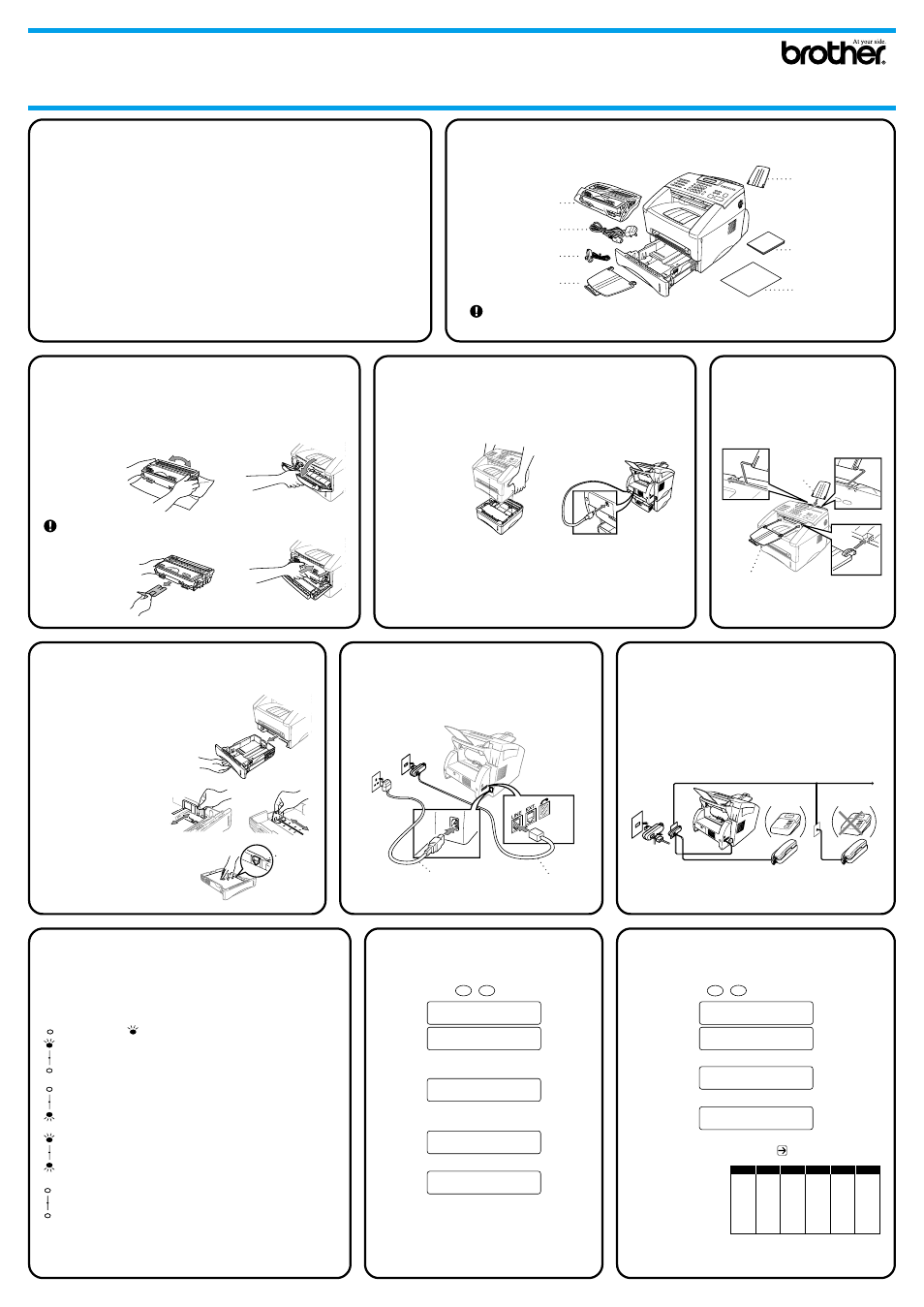

FAX-8360P
Quick Setup Guide
2 4
1
5
Attach
Document
Tray/Support Install Drum Unit
Load Paper 6 7
8 9 10
Install Mains Power
Cord and Telephone
Line Cord Telephone Answering
Device (TAD),
External/Extension
Telephone
Selecting Receive Mode Set Station ID Set Date and
Time
A. Pull the paper cassette
completely out of the
machine.
B. Adjust the paper guides at
the right and rear of the
paper cassette for the paper
size you want.
C. Load paper in the
paper cassette. Press
down on the paper to
flatten it in all four
corners, keeping the paper
level below the guide marks.
D. Slide the paper cassette into
the machine until it locks into
place.
A. Unpack the drum unit assembly,
and gently rock it from side to side
five or six times to distribute the
toner evenly
inside the
cartridge. C. Open the front cover
of the machine.
To prevent damage to the drum,
do not expose it to light for longer
than a few minutes.
B. Remove the
protective part.
D. Insert the drum unit
assembly into the
machine.
Choose the mode that best suits your needs by pressing Mode
repeatedly until you have changed the Fax and F/T lights to the
setting you want to use.
( means light off. means light on.)
TAD
Fax
F/T
For use with a dedicated fax line.
Every call is answered as a fax.
TAD
Fax
F/T
For receiving fax and voice calls on one line.
The machine answers every call automatically and
receives a fax or pseudo rings for you to pick up a voice
call on an extension/external telephone.
TAD
Fax
F/T
For use with an external answering device.
The TAD answers every call and stores voice messages.
Fax messages are printed.
Make sure that TAD is connected to the external socket.
TAD
Fax
F/T
For receiving fax and voice calls on one line.
You control the phone line and must answer every call
yourself on the machine or extension/external telephone.
For more details, see Receive Mode Settings in Owner’s Manual.
A. Press Menu, 1 , 1 .
1.DATE/TIME
YEAR:XX
ENTER & SET KEY
B. Enter the last two digits of the year and
press Set.
MONTH:XX
ENTER & SET KEY
C. Enter two digits for the month and press
Set.
DAY:XX
ENTER & SET KEY
D. Enter two digits for the day and press Set.
TIME:XX:XX
ENTER & SET KEY
E. Enter the time in 24-hour format and press
Set.
F. Press Stop/Exit.
Note: To cancel the setting and exit the menu
please press Stop/Exit.
A. Press Menu, 1 , 2 .
2.STATION ID
FAX:
ENTER & SET KEY
B. Enter your fax number, then press Set.
TEL:
ENTER & SET KEY
C. Enter your telephone number, then press Set.
NAME:
ENTER & SET KEY
D. Enter your name using the dial pad and the chart
below, then press Set. Press
twice to enter a
space.
E. Press Stop/Exit.
For more details,
see
Entering Text in
Owner’s Manual.
Press Key
2
3
4
5
6
7
8
9
once
A
D
G
J
M
P
T
W
twice
B
E
H
K
N
Q
U
X
three times
C
F
I
L
O
R
V
Y
four times
2
3
4
5
6
S
8
Z
five times
A
D
G
J
M
7
T
9
E. Close the front cover.
A. Carefully pick up the
machine and
place it on top
of the Optional
Paper Tray
(Lower Tray).
(Example for
the U.K.)
Mains Power Cord Telephone Line Cord
Maximum
Paper
Height
Guide
Marks
Document
Support
Document Tray
with Extension
B. Plug the modular cable
from the Lower Tray into
the modular socket on the
machine.
C. The optional paper cassette must be used in place of the upper paper
cassette. See instructions supplied with the Optional Paper Tray.
To select which tray will be used for faxes or for copies, see Lower
Tray (With Optional Paper Tray Only).
If you move the machine after connecting the Lower Tray, be sure to
carefully lift the Lower Tray with the machine because they are not
fastened together.
Note: To cancel the setting and exit the menu please
press Stop/Exit.
