Bryant 619CNF User Manual
Page 9
—9—
HEX-HEAD
BOLT
MOUNTING
SLOT

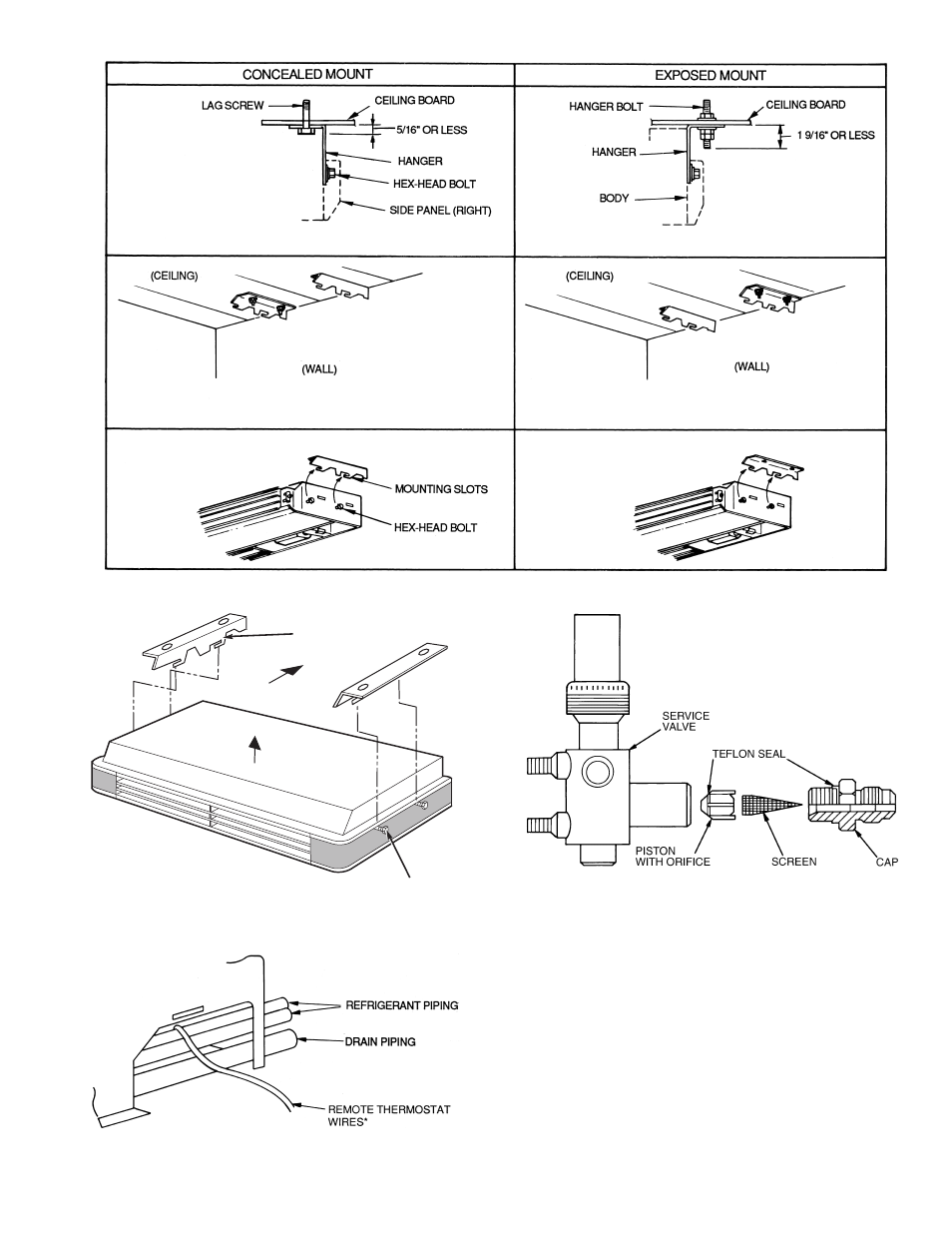

Fig. 10 — Mounting Hanging Brackets
Fig. 11 — Hanging Fan Coil Unit
*Factory-supplied.
Fig. 12 — Routing Wires Over Piping
NOTE: Teflon Seal must face toward the outdoor heat pump unit.
Fig. 13 — AccuRater Metering Device at Service Valve
(Bypass Type Components),
Heat Pump Systems Only
a40-625
a40-933
a40-940
a40-531
