—13—
LEGEND
ASM
— Air Sweep Motor
ASR
— Air Sweep Relay
EQUIP GND — Equipment Ground
FL
— Fuse Link
FPT
— Freeze Protection Thermostat
HP
— Heat Pump
HR
— Heater Relay
HTR
— Heater
HTT
— Heater Temp. Thermostat
IFM
— Indoor-Fan Motor
NEC
— National Electrical Code
PL
— Plug
TB
— Terminal Board
TRAN
— Transformer
Terminal (Marked)
Terminal (Unmarked)
Splice
NOTES:
1. If any of the original wire furnished must be replaced, it must be replaced with type 90 C wire or its equivalent.
2. Wire in accordance with NEC and local codes.
3. Transformer is thermally protected and will reset automatically.
4. Indoor-fan motor(s) are inherently thermally protected.

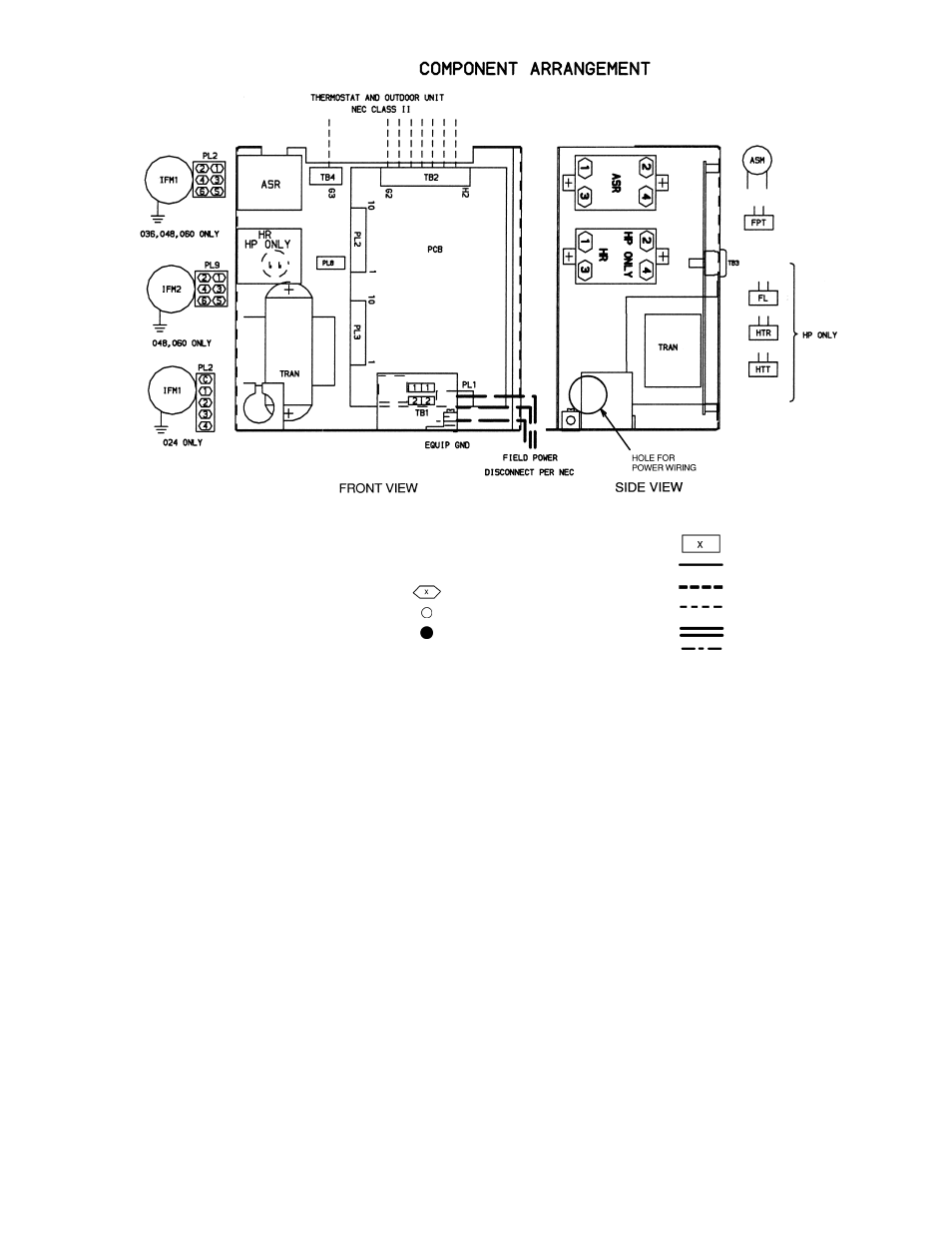

Fig. 17 — Control Circuit Connections Arrangement
Terminal Block
Factory Wiring
Field Power Wiring
Field Control Wiring
Printed Circuit Board
Accessory or Optional Wiring
a40-941
