9. Appendices Vlinx MESR9xx Modbus Gateway
Page 54 Manual Documentation Number MESR9xx-4508m
www.bb-elec.com/
www.bb-europe.com/

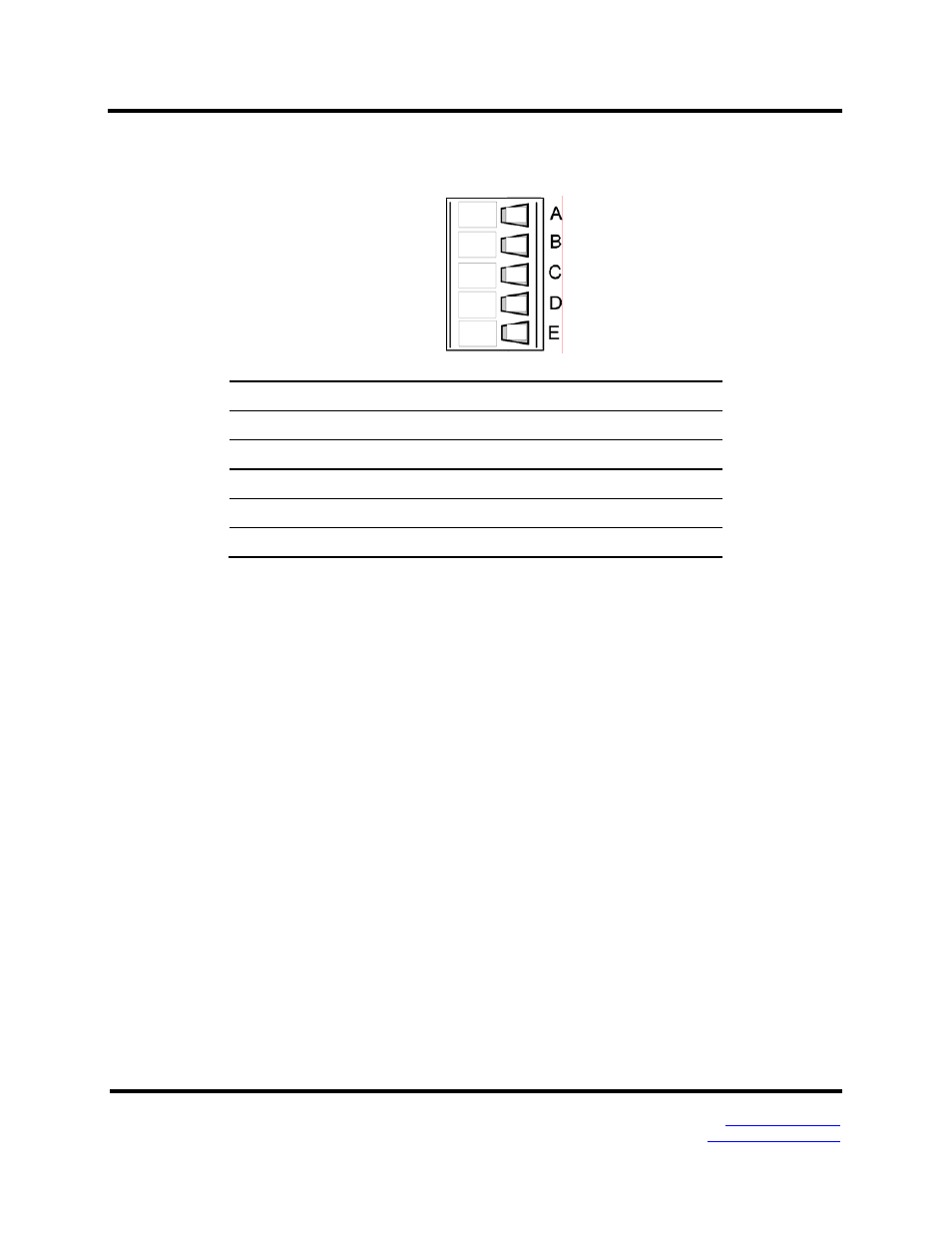

MESR902T-x Serial Port Pinouts
Terminal RS-232 RS-422 RS-485
A RTS TXA(-) DATA-
B TD TXB(+) DATA+
C CTS RXA(-) ---
D RD RXB(+) ---
E GND GND GND
In the RS-422 mode, TX lines are outputs and RX lines are inputs. Connect the Modbus
gateway TXB(+) line to the RXB(+) line of the Modbus network, and the Modbus
gateway TXA(-) to the RXA(-) of the Modbus network.
Ground is signal ground and provides a common mode reference for the RS-422 Receiver
and Transmitters.
