6. Diagnostics

Vlinx MESR9xx Modbus Gateway

Page 33

Manual Documentation Number MESR9xx-4508m

www.bb-elec.com/

www.bb-europe.com/

6

6

.

.

D

D

i

i

a

a

g

g

n

n

o

o

s

s

t

t

i

i

c

c

s

s

Clicking the Diagnostics icon opens the

Diagnostics

dialog box and enables you to

check the operation of connected Modbus gateways on the local computer.

The Computer Information box displays information about the type of network
connections, the IP addresses, Subnet Masks and Default Gateways in use.

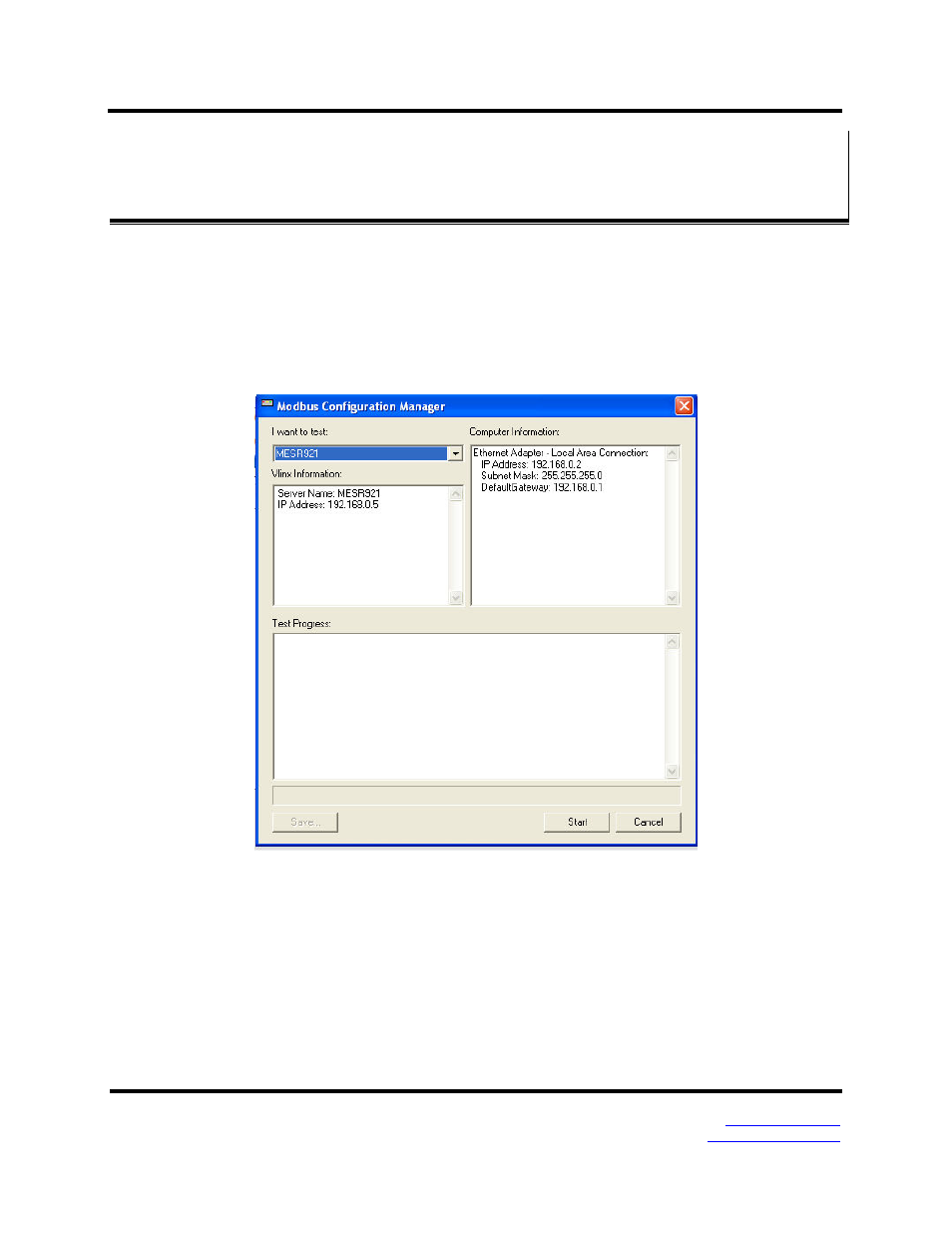

Figure 21.

Diagnostics Dialog Box

Testing a Modbus Gateway Connection

To run diagnostics on a Modbus gateway:

1. Click the Diagnostics icon.

The

Diagnostics

dialog box appears.
