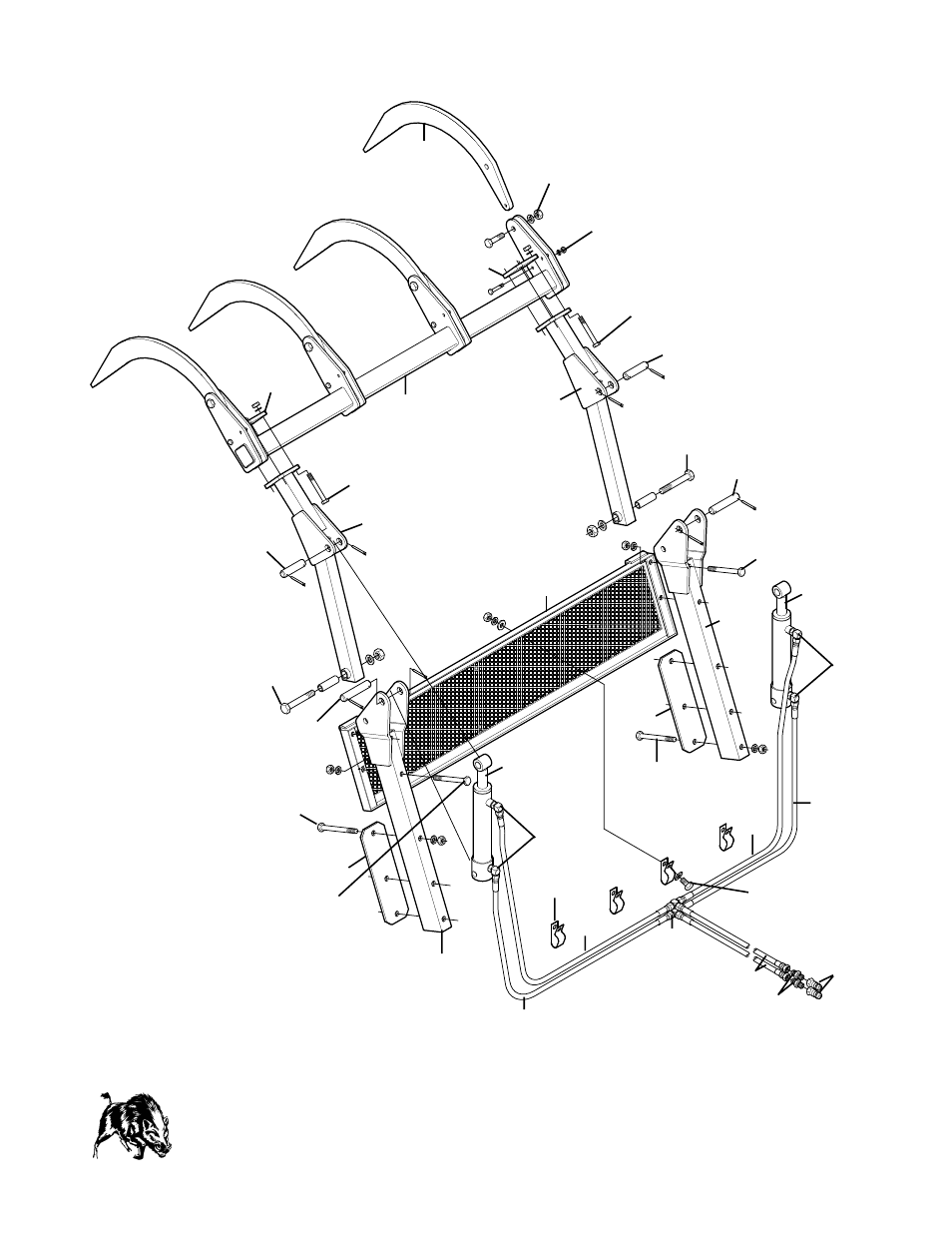

Bush Hog 6045 - Manual (Page 54)

25H49899
(4) Tines
25H49896
Cross Tube
25H49900
Screen
25H49893
Bolt Pad
25H49893
Bolt Pad
25H49890
Outer Arm
25H49890
Outer Arm
Cross Tube to Tine
(4) 5/8” x 2-1/2” Capscrews
(4) 5/8” Lockwashers
(4) 5/8” Hex Nuts
Outer Arm to Cross Tube
to Bolt Pad
(4) 5/8” x 5” Capscrews
(4) 5/8” Lockwashers
(4) 5/8” Hex Nuts
Cross Tube to Tine
(4) 3/8” x 2-1/4” Capscrews
(4) 3/8” Lockwashers
(4) 3/8” Hex Nuts
Outer Arm to Cross Tube
to Bolt Pad
(4) 5/8” x 5” Capscrews
(4) 5/8” Lockwashers
(4) 5/8” Hex Nuts
Clamp Plate to Loader Bucket
to Inner Arm
(4) 5/8” x 5-1/2” Capscrews
(4) 5/8” Lockwashers
(4) 5/8” Hex Nuts
Clamp Plate to Loader Bucket
to Inner Arm
(4) 5/8” x 5-1/2” Capscrews
(4) 5/8” Lockwashers
(4) 5/8” Hex Nuts
Outer Arm to Inner Arm
(1) 3/4” x 5” Capscrew
(1) 25H49907 Pivot Bushing
(1) 3/4” Lockwasher
(1) 3/4” Hex Nut
Double Clamp to Screen
(4) 3/8” x 1-1/4” Capscrews
(8) 3/8” Flatwashers
(4) 3/8” Lockwashers
(4) 3/8” Hex Nuts
Outer Arm to Inner Arm
(1) 3/4” x 5” Capscrew
(1) 25H49907 Pivot Bushing
(1) 3/4” Lockwasher
(1) 3/4” Hex Nut
Inner Arm to Screen
(2) 1/2” x 5” Capscrews
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
Outer Arm to Hydraulic Cylinder
(1) 25H49909 Pin 4”
(2) 21020614 Cotter Pins
Inner Arm to Hydraulic Cylinder
(1) 25H49908 Pin 5”
(2) 21020614 Cotter Pins
Inner Arm to Hydraulic Cylinder
(1) 25H49908 Pin 5”
(2) 21020614 Cotter Pins
Outer Arm to Hydraulic Cylinder
(1) 25H49909 Pin 4”
(2) 21020614 Cotter Pins
Inner Arm to Screen
(2) 1/2” x 5” Capscrews
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
25H49886
Inner Arm
25H49886
Inner Arm
25H47945
Hydraulic Cylinder
1560384
Hose 60”
1560384
Hose 60”
1560384
Hose 60”
1560370
Hose 48”
1560370
Hose 48”
25D25683
Male Adaptor
25H43870
Male Tip
25H40122
Elbow 90°
25H40041
(2) Union Tee
25H49906
Clamp Plate 50005655
(4) Double Clamps
25H49906
Clamp Plate
25H47945
Hydraulic Cylinder
25H40122
Elbow 90°
