3.

Assemble the mount to the support tube and handle to the support tube (refer to Fig. 1).
Leave all fasteners snug but not tight. position the assembly on the area of the floor board
chosen and adjust the assembly to be sure the operator has complete and comfortable
access to the control handle. (NOTE: The support mount may be rotated 180

0

from posi-

tion shown in Fig. 1 if necessary for better access to the controls). If the tractor has a
floor matt, use the support mount as a template and mark the area around the base of the
support mount where it contacts the matt. Cut the matt on the marked area and remove the
cut out piece of matt.

4.

It will be necessary to remove the support mount from the support tube to perform this step.
Position support mount on the cab floor board and use the mount as a template. Drill four

3/8

” holes in line with the four slotted holes in the support mount. Mark the center of the 1

1/4

” hole in the support mount on the floor board as close as possible to the hole in the sup-

port mount. Use a hole saw and cut a 1

1/4

” hole that aligns with the large hole in the sup

port mount (Refer to Fig. 1).

25H41276

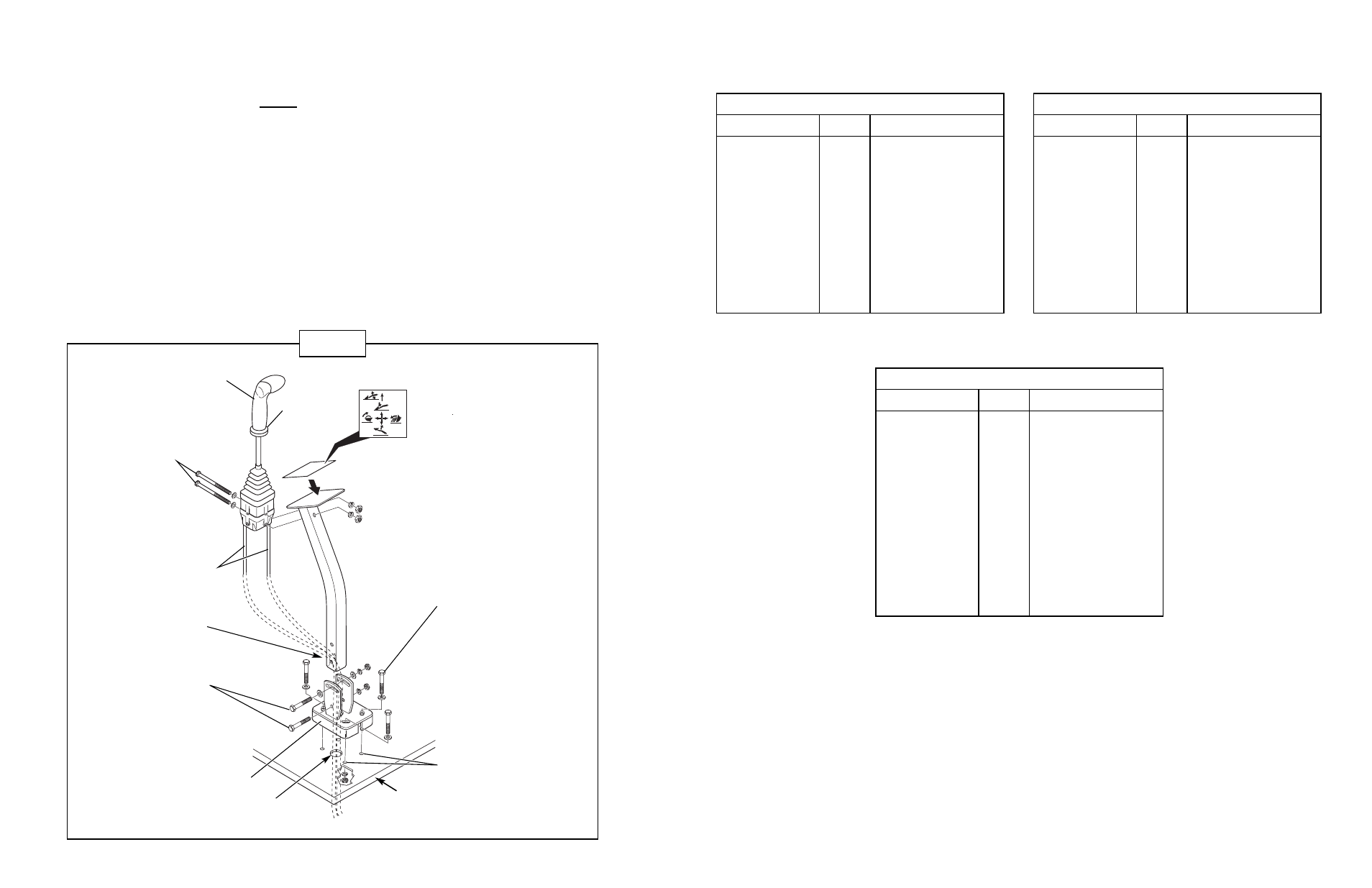

Fig. 1

CONTROL HANDLE

DECAL

SET SCREW

CONTROL HANDLE TO
SUPPORT TUBE :

(2)

5/16

” X 5 CAPSCREWS

(2)

5/16

” FLATWASHERS

(2)

5/16

” LOCKWASHERS

(2)

5/16

” HEX NUTS

CONTROL CABLES

NOTCH AT BASE
OF SUPPORT TUBE

SUPPORT TUBE TO
SUPPORT MOUNT :

(2)

3/8

” X 2

3/4

” CAPSCREWS

(2)

3/8

” FLATWASHERS

(2)

3/8

” LOCKWASHERS

(2)

3/8

” HEX NUTS

SUPPORT MOUNT

1

1/4

” HOLE IN FLOOR BOARD

SUPPORT MOUNT TO
CAB FLOOR BOARD :

(4)

3/8

” X 2

3/4

” CAPSCREWS

(4)

3/8

” FLATWASHERS

(4)

3/8

” LOCKWASHERS

(4)

3/8

” HEX NUTS

DRILL (4)

3/8

” HOLES

FLOOR BOARD

Page 2

50051730 CABLE CONTROL VALVE KIT

PART NUMBER QTY. PART NAME

50051669........................ 1..............68” Hose Assembly (Green)
50051670........................ 1..............68” Hose Assembly (Red)
50051671........................ 1..............68” Hose Assembly (Yellow)
50051672........................ 1..............68” Hose Assembly (Blue)
50041056........................ 2..............Hydraulic Hose (120”)
50041068........................ 1..............Cable Control Valve Ass’y
50020851........................ 1..............Control Handle
50020540........................ 2..............Control Cable (78”)
50026999........................ 2..............Cable Connector Kit
50027394........................ 1..............Support Weldment
50027391........................ 1..............Support Tube Weldment
50027388........................ 1..............Valve Mount
50051651........................ 1..............Instruction Sheet
50027390........................ 1..............Bag Of Hardware
68822.............................. 1..............Crate

50051729 CABLE CONTROL VALVE KIT

PART NUMBER QTY. PART NAME

50051669........................ 1..............68” Hose Assembly (Green)
50051670........................ 1..............68” Hose Assembly (Red)
50051671........................ 1..............68” Hose Assembly (Yellow)
50051672........................ 1..............68” Hose Assembly (Blue)
50041057........................ 2..............Hydraulic Hose (156”)
50041068........................ 1..............Cable Control Valve Ass’y
50020851........................ 1..............Control Handle
50020540........................ 2..............Control Cable (78”)
50026999........................ 2..............Cable Connector Kit
50027394........................ 1..............Support Weldment
50027391........................ 1..............Support Tube Weldment
50027388........................ 1..............Valve Mount
50051651........................ 1..............Instruction Sheet
50027390........................ 1..............Bag Of Hardware
68822.............................. 1..............Crate

50027390 BAG OF HARDWARE

PART NUMBER QTY. PART NAME

25H47571........................5..............Cable Tie
08151600........................ 2..............Hexnut 1/2” ZP
15528.............................. 2..............Hexnut 5/16” ZP
08151200........................ 6..............Hexnut 3/8” ZP
15806.............................. 2..............Lockwasher 1/2” ZP
15812.............................. 6..............Lockwasher 3/8” ZP
15808.............................. 6..............Lockwasher 5/16” ZP
44311.............................. 4..............Lockwasher M8 ZP
15915.............................. 6..............Flatwasher 3/8” ZP
15916.............................. 1..............Flatwasher 1/2” ZP
15907.............................. 2..............Flatwasher 5/16” ZP
44098.............................. 6..............HHCS 3/8” x 2 3/4” G5 ZP
44582.............................. 2..............HHCS 5/16” x 5” G5 ZP
44315.............................. 4..............HHCS M8 x1.25”x20” G8.8 ZP
15080.............................. 2..............HHCS 1/2” x 2 1/4” G5 ZP
25H43832....................... 2..............Straight Thread Adaptor
25H41276....................... 1..............Valve Control Decal
51260.............................. 1..............Bag
