15. iQ Network
WAN
LAN
RM : Remote control &
Management
P : projection area
M2 : Meeting room
M1 : Meeting room 1
A : SERVER
R : remote meeting attendee
V : streaming video data
M3 : Large conference room
Image 15-1

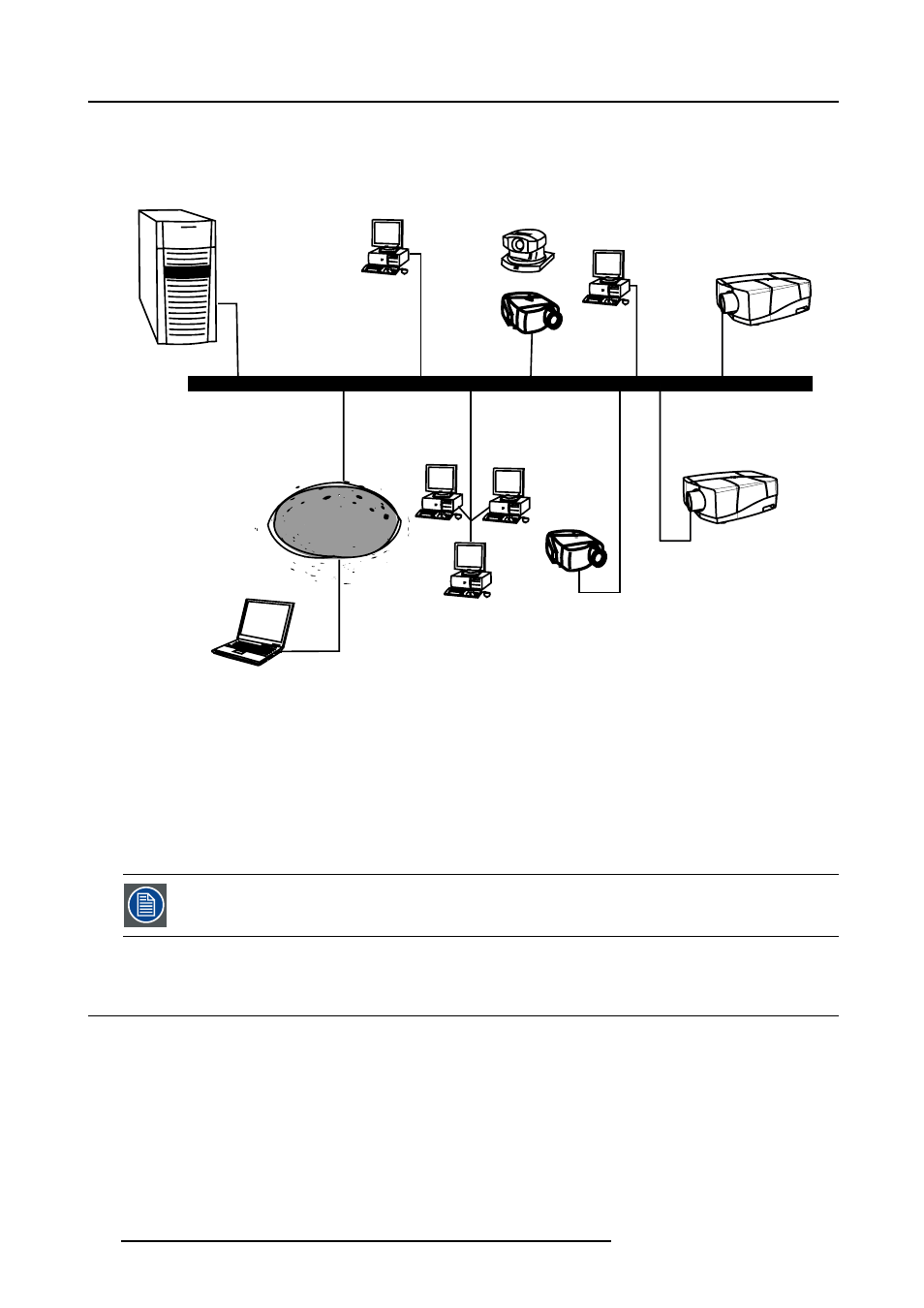

Typical iQ Pro network architecture
A server
RM Remote Control and Management
M1 Meeting room 1
M2 Meeting room 2
M3 Large screen conference room
P
Projection area
R Remote meeting attendee
V
Streaming Video data
Wireless LAN (point-to-point) is also possible (using the PCMCIA connection on the projector ) and comple-
ments the functionality of direct cabling.
15.2 Network functionality
What can be done ?
The network functionality allows the projector to perform several network functions thanks to network features which are required in
most corporate environments:
• Control & Management : wireless/wired (remote) control and monitoring of the projector(s) thanks to a user-friendly GUI (the
Client software).
• Diagnostics : diagnostics through a user-friendly GUI and automatic E-mail sending.
• Easy file (MS PowerPoint,...) manipulation and projection using the DropZone interface.
• Remote control of the projector by allowing the desktop to be shared over the network (the DropZone interface).
• Streaming media : The projector’s onboard computer is streaming video data ready, i.e. allowing the decoding of video stream-
ing data coming from a server via the LAN.
