6 HS 885 HD
Dragline equipment
71,700 lbs counterweight

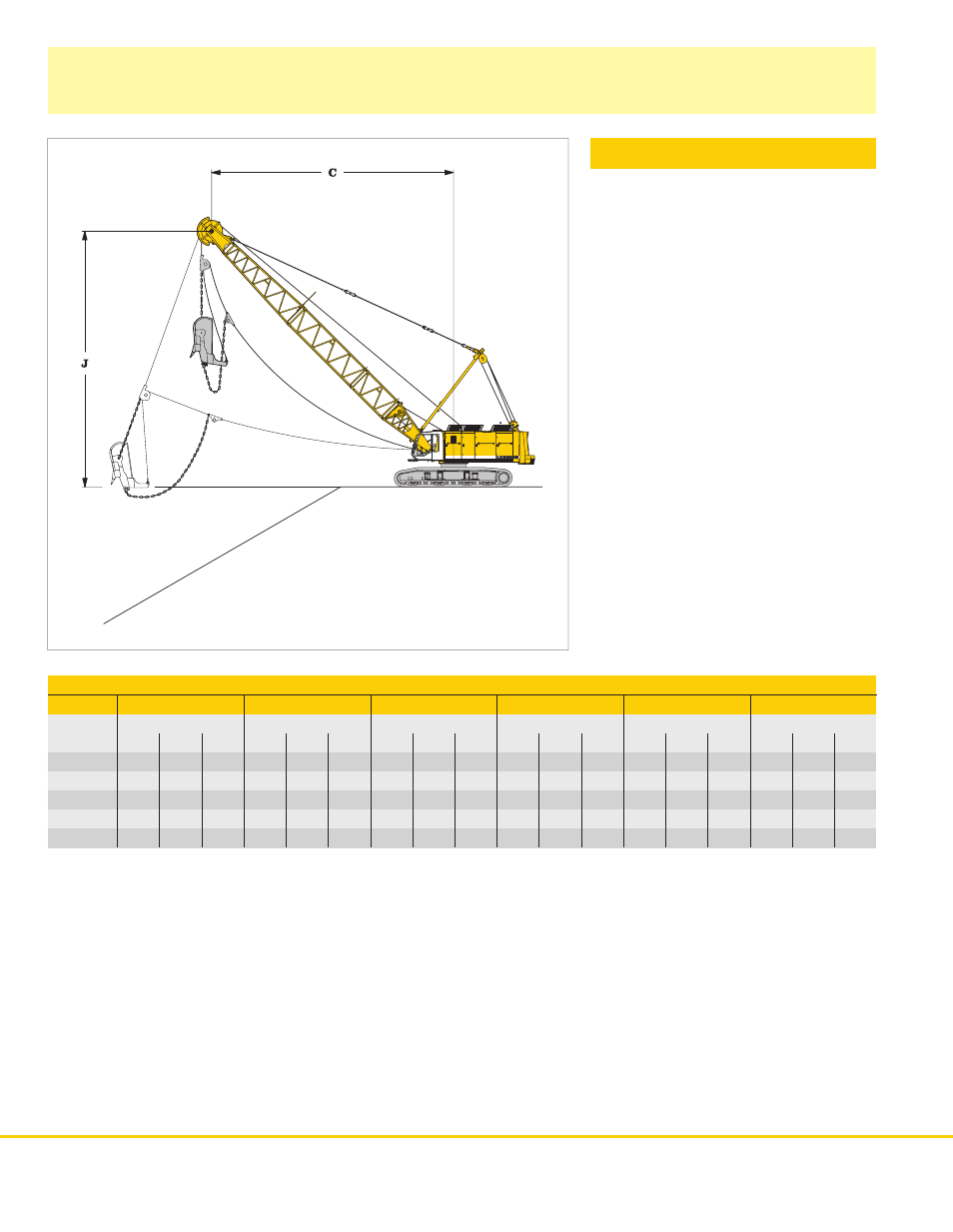

Working diagram
C = Radius / dumping radius
J = Height of boom head sheave centre
above ground level
С ССС С
Capacities in 1000 lbs for boom lengths (59 ft – 108 ft) counterweight 71,700 lbs
59 ft 69 ft 79 ft 89 ft 98 ft 108 ft
C J C J C J C J C J C J
α ft lbs lbs ft ft lbs ft ft lbs ft ft lbs ft ft lbs ft ft t
45 48.2 48.9 46,3 55.4 55.8 36,8 62.3 62.6 29,5 69.2 69.9 24,7 76.4 76.8 20,7 83.0 84.0 18,7
40 51.8 44.9 40,1 59.4 51.5 30,8 66.9 57.7 25,1 74.5 64.0 21,2 82.0 70.2 17,9 89.6 76.8 16,8
35 55.1 41.0 33,5 63.0 49.9 26,5 71.2 52.1 22,6 79.1 57.7 19,0 87.3 63.6 15,9 95.5 69.6 15,0
30 57.7 36.7 29,3 66.3 41.7 24,0 74.8 46.6 19,8 83.3 51.5 16,5 91.9 56.4 13,9 100.4 61.4 13,7
25 60.0 32.2 26,2 68.9 36.0 21,4 78.0 40.4 18,1 86.9 44.6 15,0 95.8 48.6 12,6 104.7 53.1 12,3
Max. capacities in metric tons do not exceed 75% of tipping load.
