10 HS 885 HD

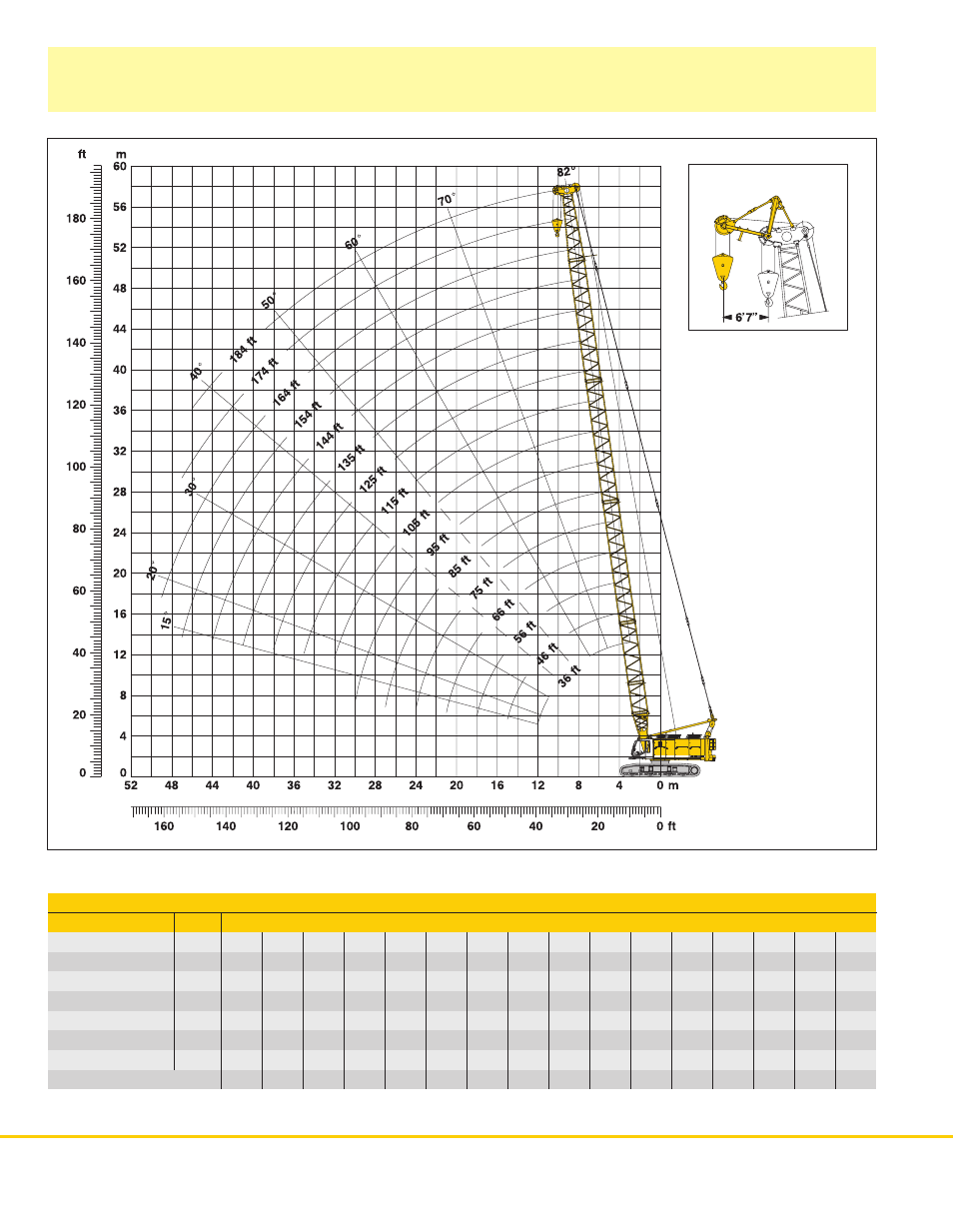

Working range - main boom 86° - 15°
87,100 lbs counterweight and 15,400 carbody counterweight
The maximum capacity of the
auxiliary jib is 66,200 lbs.
The corresponding load chart
is programmed in the LMI
system.
Auxiliary jib 66,200 lbs
Main boom configuration
(table 1)
Configuration for boom lengths (36 ft – 184 ft)
Length Amount of boom extensions
Boom foot 13 ft* 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Boom extension 10 ft* 1 1 1 1 1 1 1 1
Boom extension 20 ft* 1 1 1 1 1 1 1
Boom extension 30 ft* 1 1 1 1 2
Boom extension 40 ft* 2 2 2 2 3 3 3 3
Boom head section 21 ft 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Boom head 2 ft* 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Boom length in (ft) 36 46 56 66 75 85 95 105 115 125 135 144 154 164 174 184
* Actual lengths of boom sections are metric (e.g. 4 m ,3 m, 6 m, 9 m, 12 m, 0.6 m). The figures shown above are approximate conversions to feet.
