HS 885 HD 3

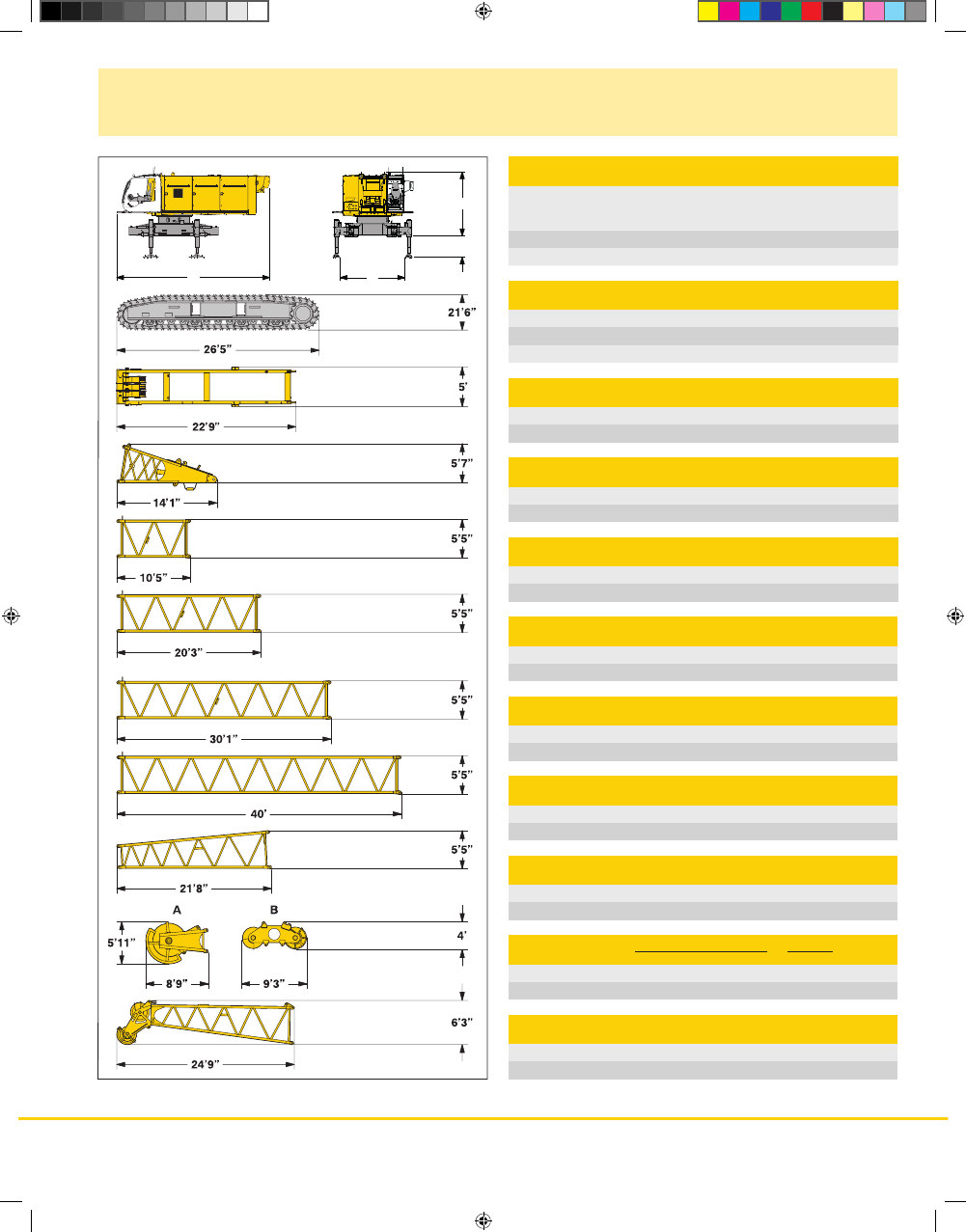

Transport dimensions and weights
Basic machine and boom
Basic machine
with HD undercarriage, V1- Mercedes Benz diesel engine, x66,00 lbs
winches with change gear box, without counterweight, coom foot and
A–frame
Width
16´´´
Weight 96,700 lbs
Crawler
Double grouser track shoes 39.4´´
Width 41.7´´
Weight 41,300 lbs
A–frame
Width 4´´
Weight 4,850 lbs
Boom foot
Width 5´5´´
Weight* 4,600 lbs
Boom section 10 ft
Width 5´5´´
Weight* 1,700 lbs
Boom section 20 ft
Width 5´5´´
Weight* ,750 lbs
Boom head section 21 ft
Width 9´9´´
Weight* 11,900 lbs
27´
45.3´´
11´1´´
12´
* ) Including pendant ropes
Boom section 30 ft
Width 5´5´´
Weight* 3,700 lbs
Boom section 40 ft
Width 5´5´´
Weight* 4,700 lbs
Boom head
B A
Width 30.7´´ 4.1´´
Weight* 3,300 4,000 lbs
L–boom head
Width 5´5´´
Weight* ,600 lbs
