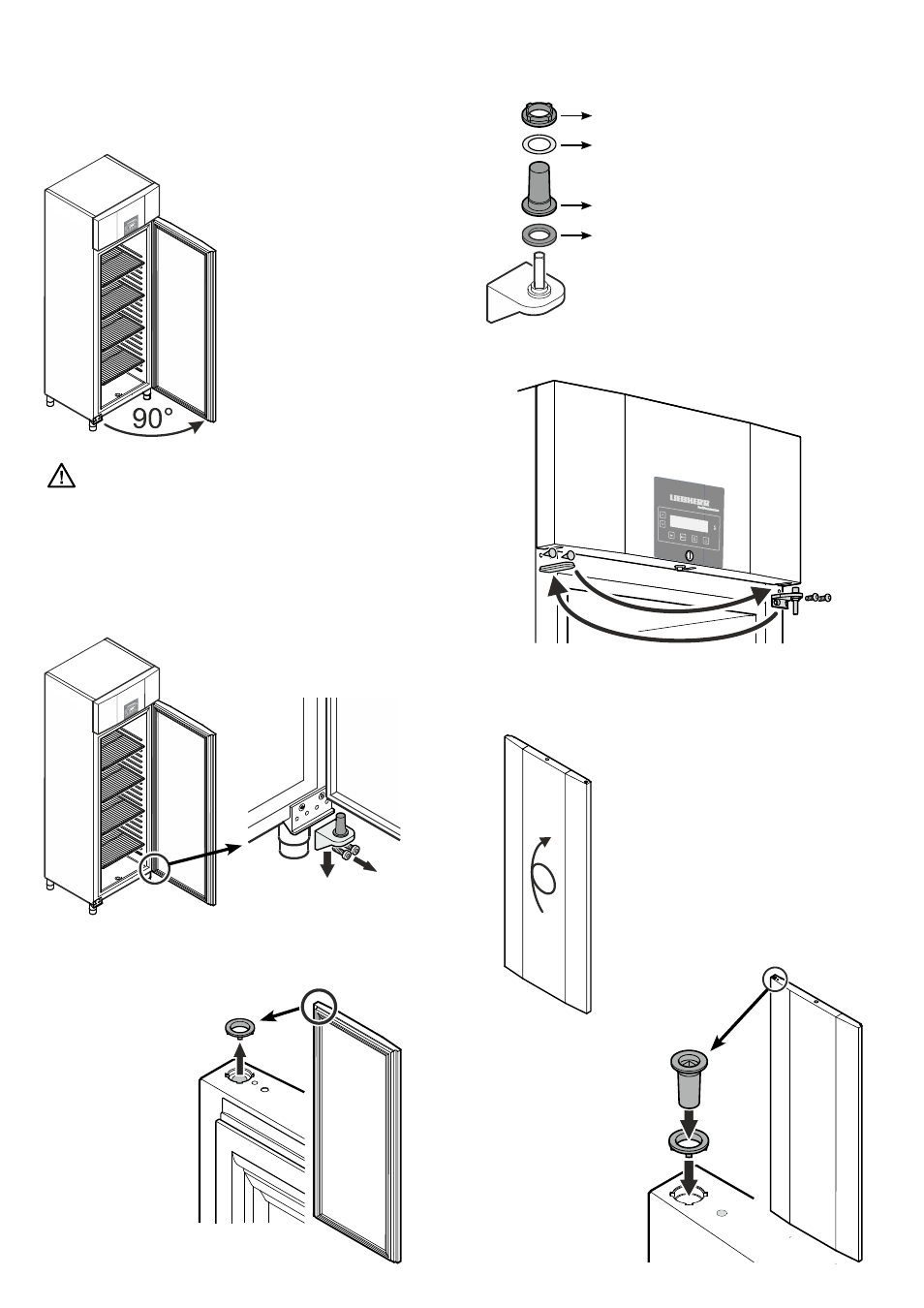

Changing over door hinges GGPv 6590
Door hinges should only be changed by a trained expert.
Changing the door hinges must be done by two people.
4.
Remove the hinge components from the hinge bracket.
1.
Open door by about 90°.
Important note
The door must be opened 90°
before the lower hinge bracket
is removed.
This will hold the self-closing
mechanism that is integrated into
the door in the required position for
installation.
WARNING!
If the door is removed and reinstalled in the
closed position, this will lead to destruction of
the self-closing mechanism on the first open-
ing of the door.
Important
As a result of its heavy weight, the door
must be held secure by one person.
2.
Remove hinge bracket.
Pull the door out at the
bottom and lift off.
Bearing ring
Brass washer
Hinge bushing
Plastic washer
Note on point 4
The hinge bushing with brass washer and bear-
ing ring may stick in the door mounting when
you pull out the hinge bracket and, in this case,
must be removed from it.
3.
Remove bearing ring from
upper door mounting.
7.
Insert the bearing ring and
hinge bushing in the upper
door mounting.
5.
Transfer the upper hinge bracket and covers to the
opposite side.
6.
Turn the door by 180°.
