Box design reinforces the leader
Since the leaders are built in especially rigid box
design, they can absorb very high pull forces and
torques. Due to the optional leader extensions, the
effective lengths achieved are considered the best
of their class.
Rope crowd system
for increased pull-down force
For drilling or vibrating piles as well as for pressing
piles, the pull-down force of the machine is of vital
importance. Through the rope crowd system, which
is standard in these machines, the element to be
installed can be additionally loaded with the weight
of the piling and drilling rig. This shortens the installa-
tion process and boosts productivity.

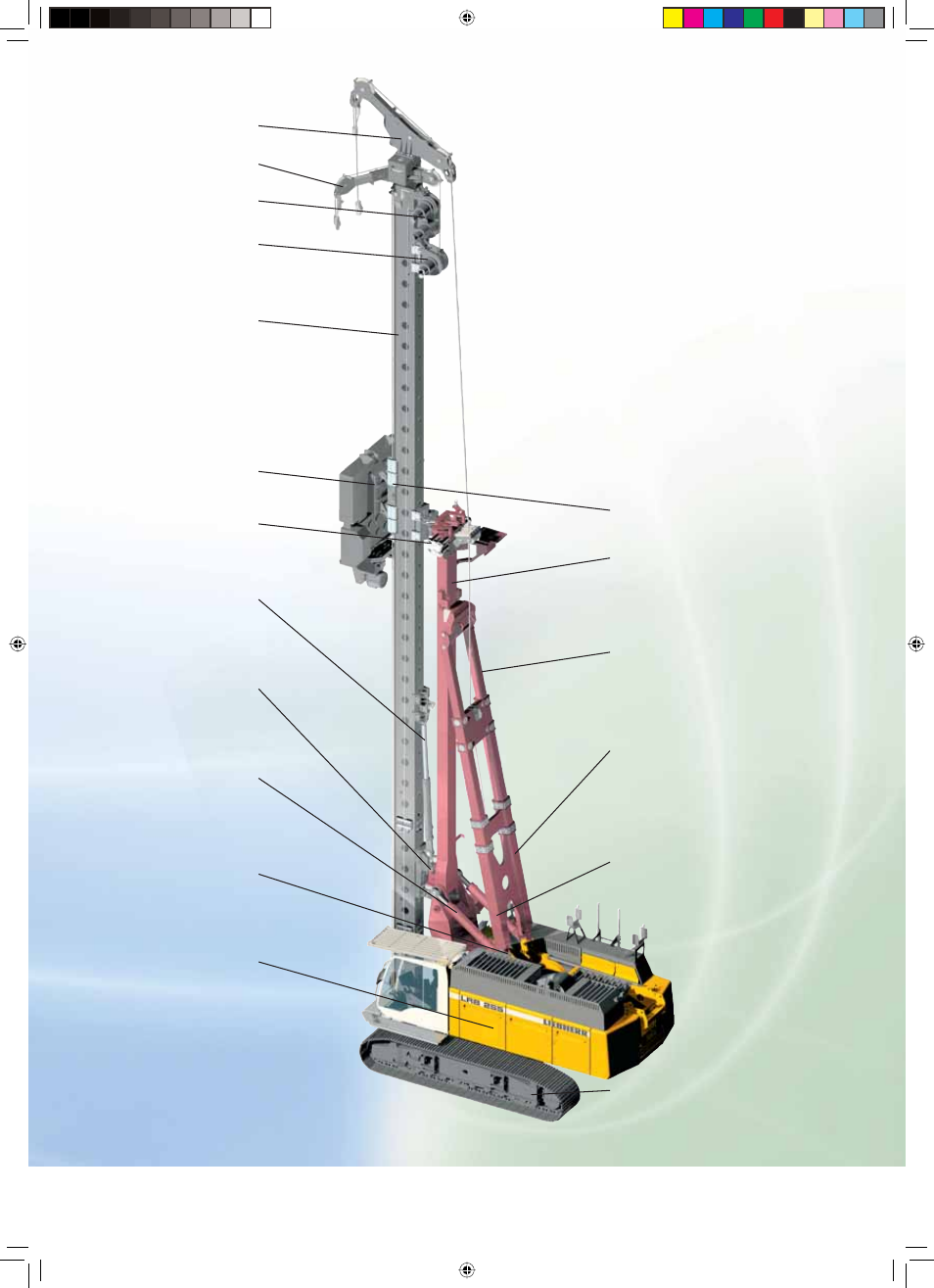

Leader top for auxiliary rope
Auxiliary winch
Leader
Working tool with
quick connection
Multi tool sledge
Leader support arm
Longitudinal inclination device
Support arm brace
Triangular kinematics
Undercarriage
Lateral inclination device
Vertical travel device
Leader
swing device
Radius adjustment device
Kelly winch
Uppercarriage
Rope crowd system
Leader top for kelly rope
