Motion Control Handle
Adjustment
The control levers can be adjusted in three ways. The
alignment of the control levers, the placement of the
levers (how close the ends are to one another) and the
height of the levers can be adjusted.
TO ADJUST THE HANDLE ALIGNMENT
Loosen the mount bolts (A, Figure 32) and pivot the
lever(s) (B) to align with each other.
TO ADJUST THE HANDLE PLACEMENT
Loosen the jam nuts and adjust the placement bolt (C) in
or out to properly adjust the lever end spacing.
TO ADJUST THE HANDLE HEIGHT
Remove the mounting hardware and reposition the
handle either up or down from its original position. You
will need to readjust the handle alignment as described
above.

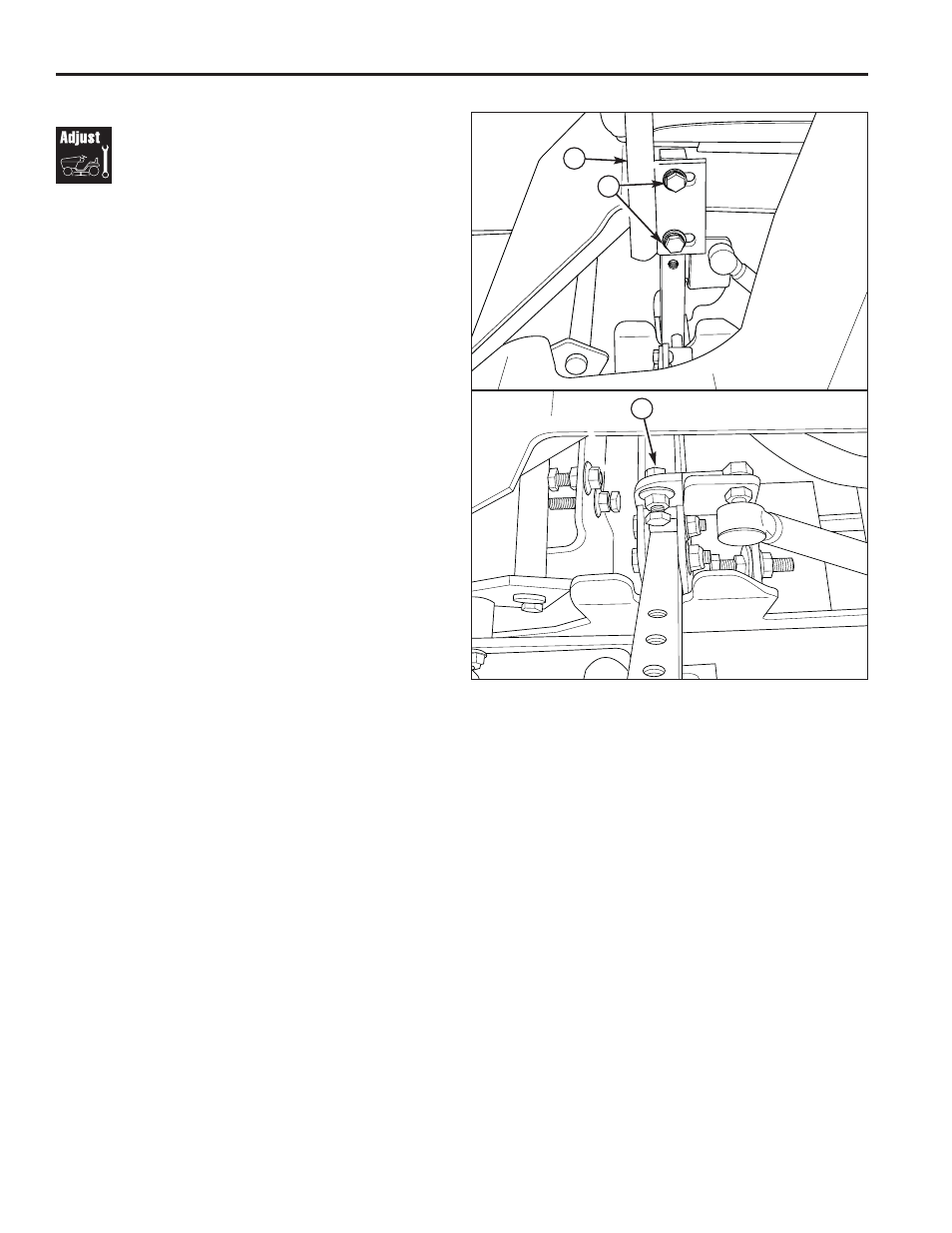

Figure 32. Control Lever Adjustment
A. Placement Hardware
B. Ground Speed Control Lever
C. Alignment Hardware
