S200X 25HP & 27HP - 61” Mower Deck
7/2007 15 TP 300-7333-02-M2-SP
Adjustment
Procedures
Seat Adjustment

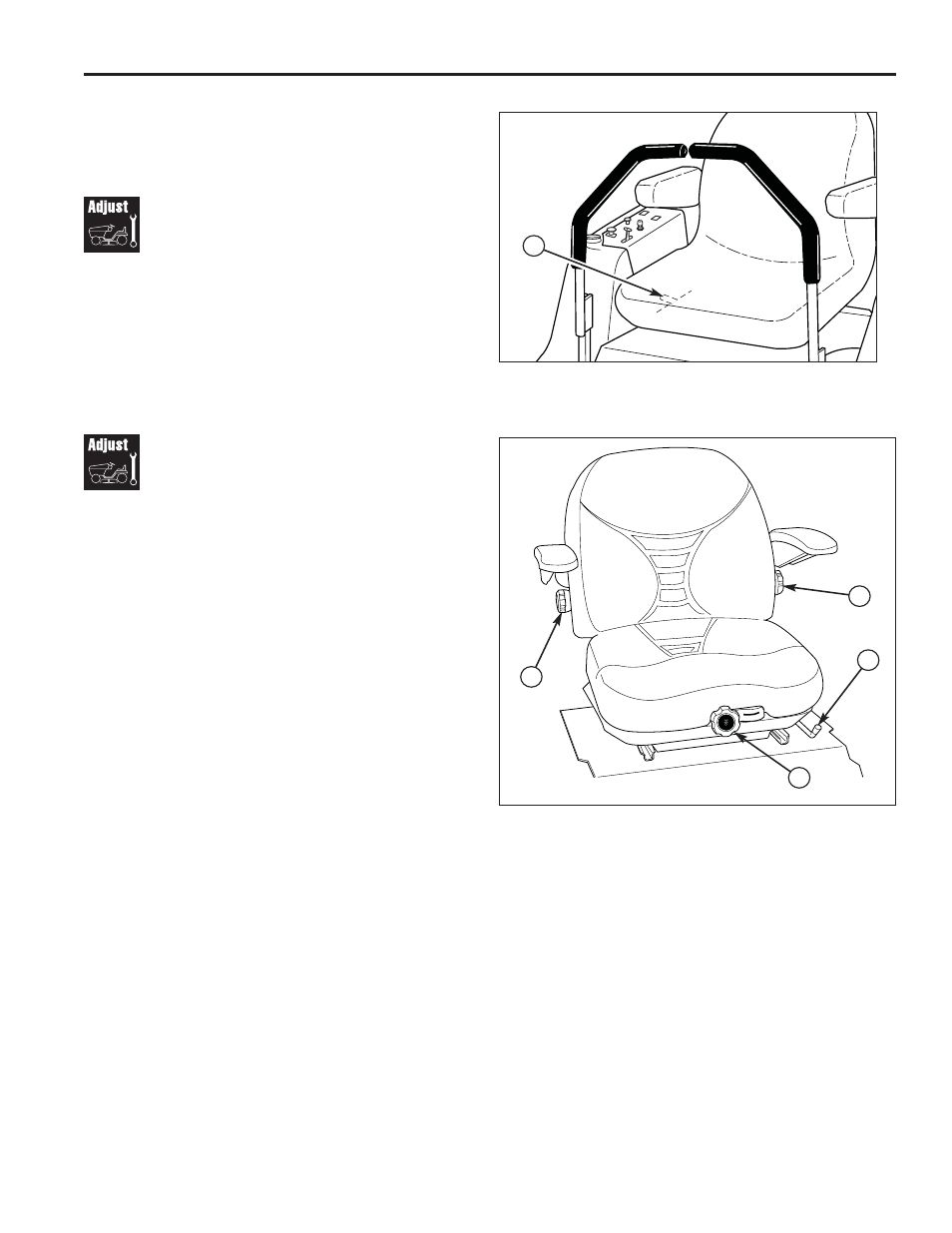

See Figure 30. The seat can be adjusted forward and
backward. Move the lever forward, position the seat as
desired, and release the lever to lock the seat into
position.
A
Figure 30. Seat Adjustment
A. Seat Adjustment Lever
Seat Adjustment
(Suspension Seat)
See Figure 31. In addition to the forward and backward
seat adjustment, models equipped with suspension seats
can be adjusted for lumbar support, suspension and
back angle. The seat can be adjusted forward and
backward.
Forward and Backward Adjustment:
Move the forward / backward seat adjustment lever (A,
Figure 31) away from the seat, position the seat as
desired, and release the lever to lock the seat into
position.
Lumbar Adjustment:
Turn the lumbar adjustment knob (B) until the desired
amount of lumbar is achieved.
Back Angle Adjustment:
Turn the back angle adjustment knob (C) until the
desired amount of back angle is achieved.
Suspension Adjustment:
Turn the suspension adjustment knob (D) until the
display scale has a reading that matches the weight of
the operator.
A
B
D
C
Figure 31. Suspension Seat Adjustment
A. Forward / Backward Seat Adjustment Lever
B. Lumbar Adjustment Knob
C. Back Angle Adjustment Knob
D. Suspension Adjustment Knob
