S200X 25HP & 27HP - 61” Mower Deck
TP 300-7333-02-M2-SP 7/2007 12
Lubrication
Lubricate the unit at the locations shown in Figure 25
through 28 as well as the following lubrication points.
Grease:
• front caster wheel axles and yokes
• deck lift pivot blocks
• mower deck spindles
• mower deck idler arm
Use grease fittings when present. Disassemble parts to
apply grease to moving parts when grease fittings are
not installed.
Not all greases are compatible. Red Grease (p/n
5022285) is recommended, automotive-type high-
temperature, lithium grease may be used when this is
not available.
Oil:
• control handle pivots
• seat plate pivots
• deck lift pivots
• discharge chute hinge
Generally, all the moving metal parts should be oiled
where contact is made with other parts. Keep oil and
grease off belts and pulleys. Remember to wipe the
fittings and surfaces clean both before and after
lubrication.
Lubricating the Front Casters:
NOTE: Front casters should be lubricated annually.
1. Remove the 1/4-28 bolt (A, Figure 28) screwed into
the front caster and install a 1/4-28 grease fitting.
2. Grease the front caster.
3. Remove the 1/4-28 grease fitting and reinstall the
1/4-28 bolt.
4. Repeat the process for the other side of the
machine.

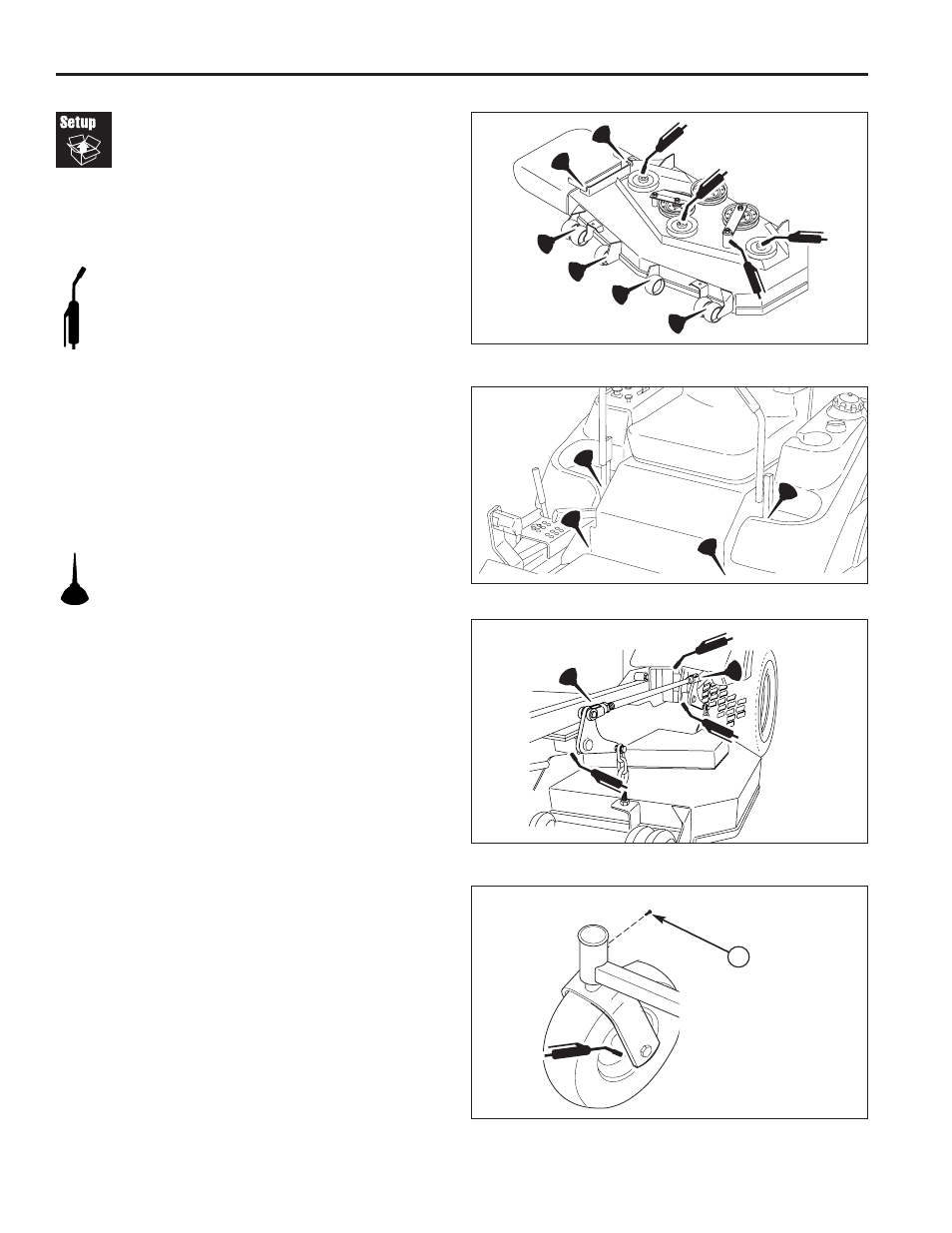

Figure 25. Deck Lubrication
Figure 27. Deck Lift Linkage Pivots
Figure 28. Front Caster & Wheel
A. 1/4-28 Bolt
Figure 26. Control Handle Pivots & Seat Plate Pivots
A
