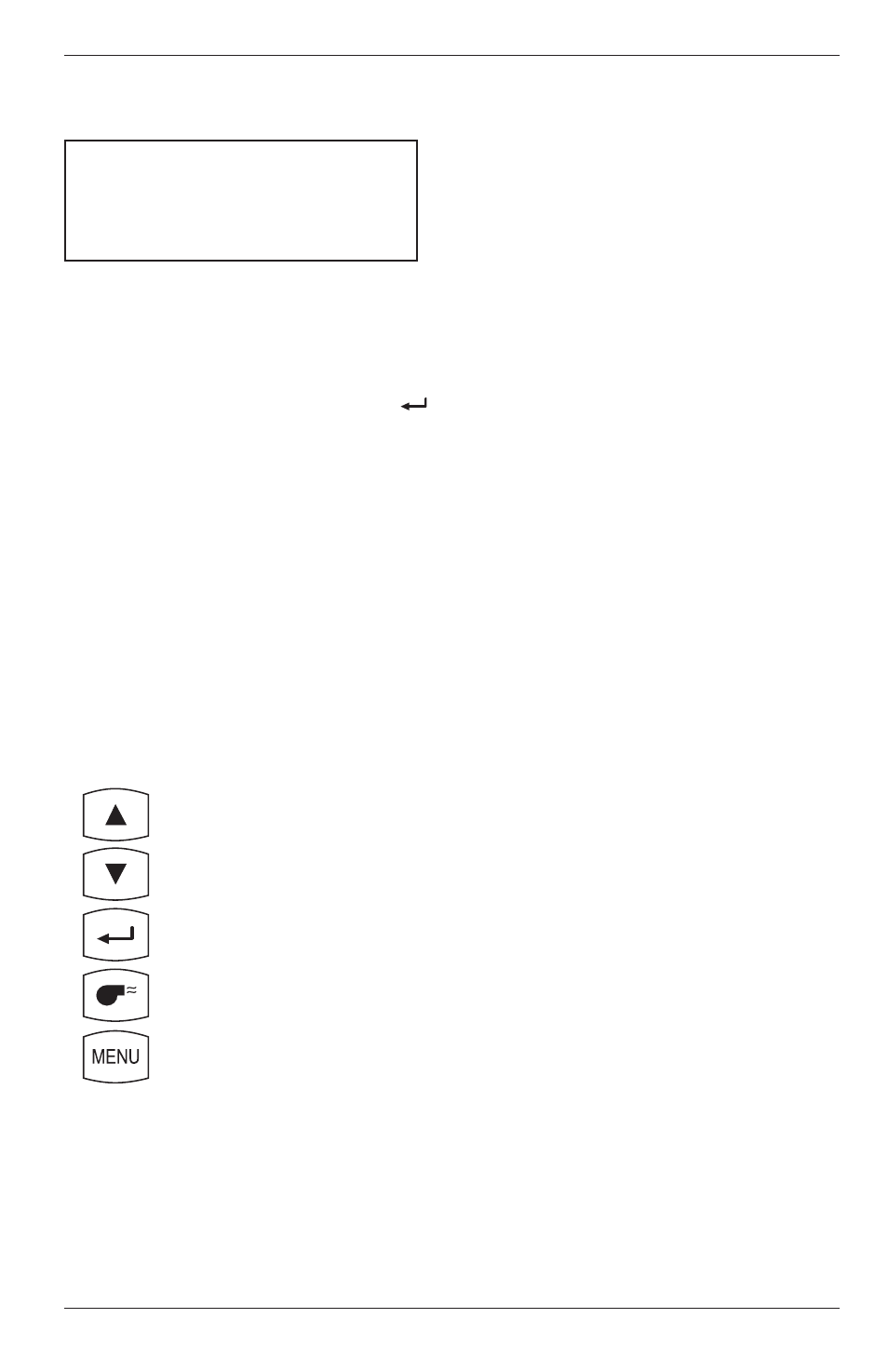

4.8 Fuel Selection Screen
«NATGAS FUEL
KOKS OIL NO.2
LEG OIL NO.6
LPG P-COAL
This screen is displayed by pressing the
MENU
key from the Combustion
Test Screen. This screen is used to select the fuel being burned.
To select a fuel, first use the
st
keys to move the cursor (
z
) in front of the
desired fuel, and then press the
key.
NOTE: The fuel selected is saved as the default, and re-
mains in memory after the PCA is turned off.
The fuel codes as displayed in the Combustion Test Screen:
NG
= Natural Gas
O#6 = Oil No. 6
KOK = Coal Gas
PC
= P-Coal (English, German, Dutch,
LPG = Propane
French, Italian, Polish, and Spanish) or Biofuel
O#2 = Oil No. 2
(Danish, Finnish, and Swedish)
Front Panel Key Functions:
– Move cursor (
z
) up
– Move cursor (
z
) down
– Select Fuel
– Go to Combustion Test Screen
– Go to Draft Screens
